| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25=30KΩ±1% | Beta Value: | B25/50=3950k±1% |
|---|---|---|---|
| Wire: | UL1332 24AWG | Probe: | Stainless Steel Probe |
| Operating Temperature Range: | -40℃~150℃ | Feature: | Accurate Measurement And High Reliability |
| Application: | Temperature Measurement For Generator | Encapsulation: | Epoxy Resin |
| OEM/ODM: | Available | Customization: | Available |
| Highlight: | jingpu Epoxy Encapsulated ntc temp sensor,jingpu R25 ntc temp sensor,jingpu 30K ntc probe |
||
Epoxy Encapsulated NTC Temperature Sensor For Temperature Measurement Of Generator
Brief Introduction:

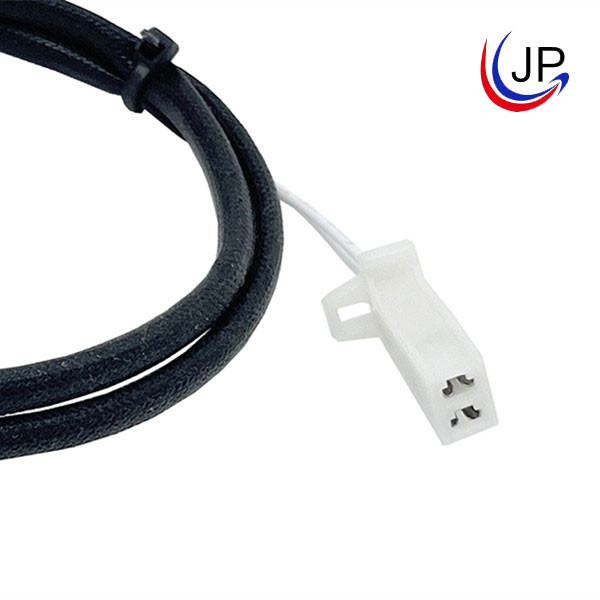

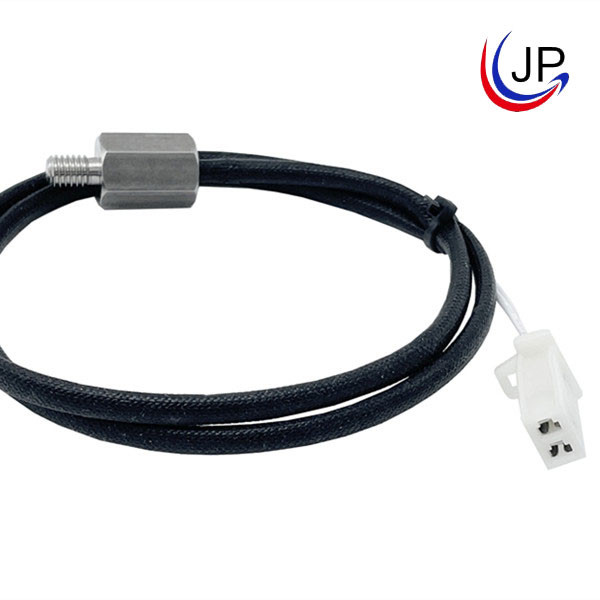

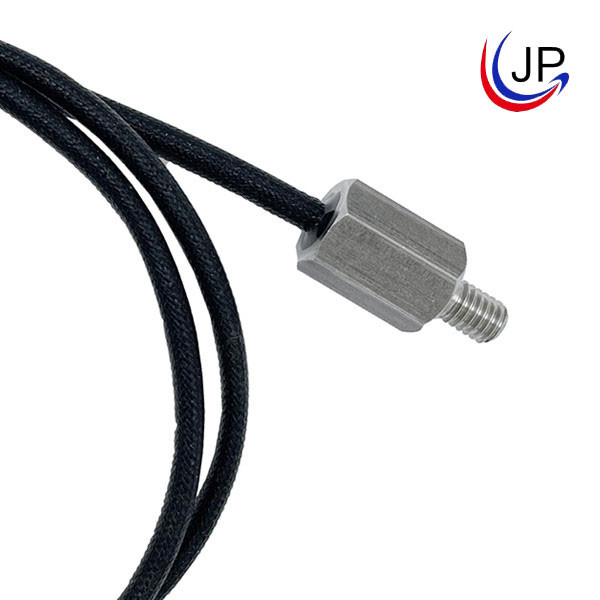

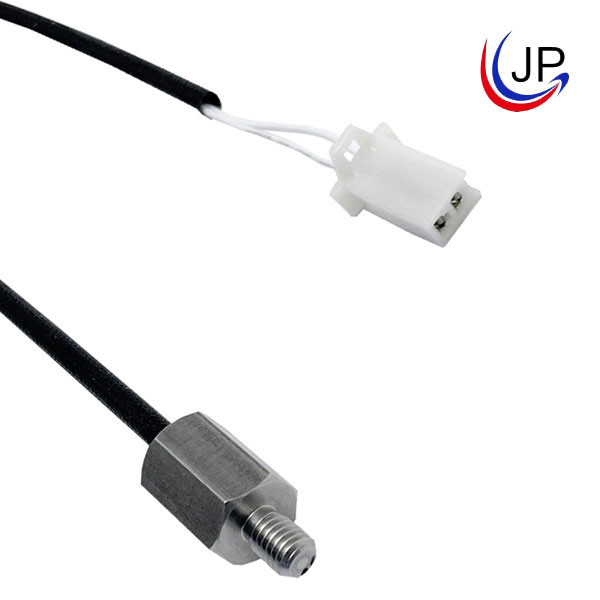

This product is used to measure the generator temperature and feed it back to the temperature control system. The product probe is a stainless steel probe, the wire is a UL1332 24AWG high-temperature wire at 200℃, the wire is covered by a black glass fiber tube at Φ3.0. Its parameter is R25=30KΩ±1%, B25 /50=3950k±1%.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~150℃
Stainless steel probe
R25=30KΩ±1%, B25/50=3950k±1%
Accurate measurement, high reliability
Application:
Temperature measurement for generator
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | -- |
| 2 | Shell | SUS M6*26-K-M5*13 | 1 | / |
| 3 | Encapsulation | Epoxy Resin | / | Black |
| 4 | Tube | Φ3.0 | 1 | Black |
| 5 | Cable | UL1332 24AWG 200℃ | 2 | White |
| 6 | Connector | DJ7021A-2.8-21 | 1 | White |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
