| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Yellow |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| Highlight: | IP64 Ntc Temp Sensor,Film Type Ntc Temp Sensor,4.5mm Ntc Thermistor Temperature Sensor |
||
Film Type Ntc Thermistor Temp Sensor For Computer And Printer 4.5mm 25mm
Brief Instruction:
Thin film thermistor is a kind of temperature sensing device that keeps the original characteristics of softness and deformation, and combines the temperature sensor with different flexible substrate materials according to different use environments (such as medical key health monitoring, sports, communication, aerospace, fire protection and other fields).
The width of MF5A-6 film type NTC thermistor is 4.5mm, the total length is 25mm, and the total thickness of the product is Max 0.6mm. The resistance parameters of this size are 10KΩ3435K,10KΩ3977K.
Features:
1. Suitable for narrow Spaces
2. Fast response time
3. Elasticity and welding easy
4. Film coating, excellent insulation and heat resistance
5. Sensitive to the environment
6. Length option: 25mm extension cord can be added
7. High stability
8. Comply with RoHS REACH directive
9. Operating temperature range: -40℃~100℃
10. Alternative resistance values are available for precision:±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, battery pack
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 | ||||

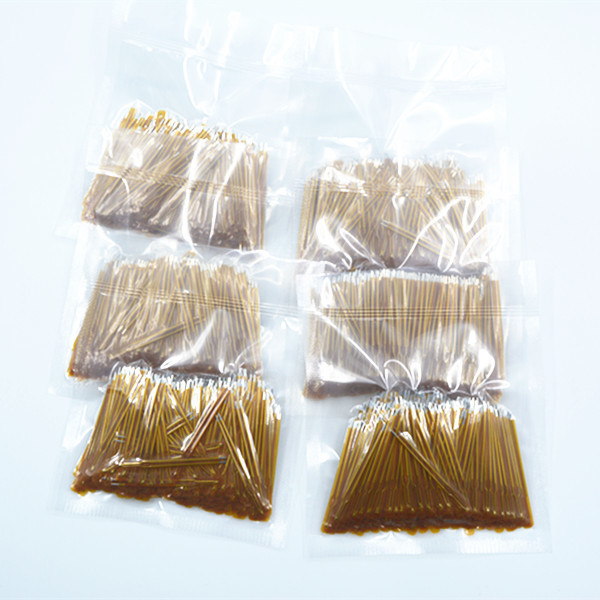

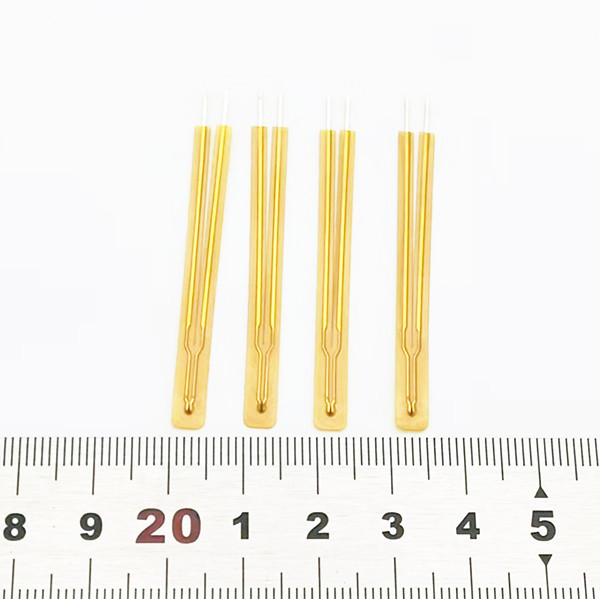

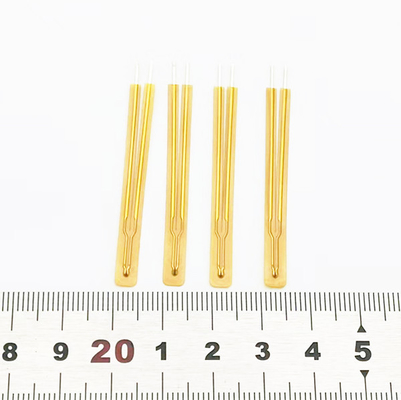

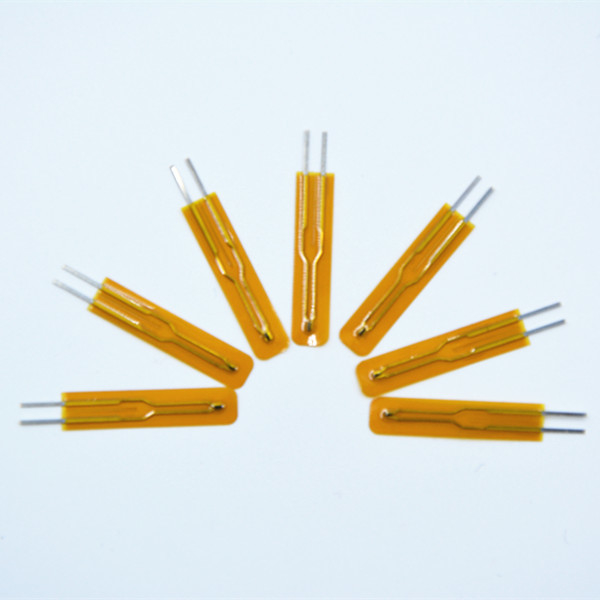

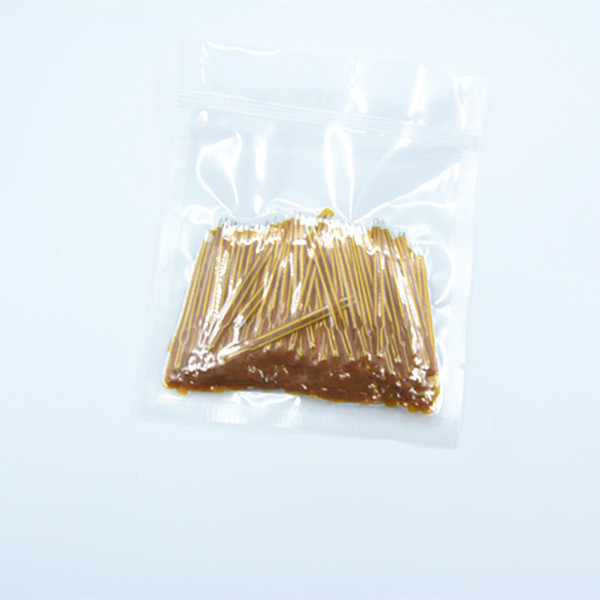

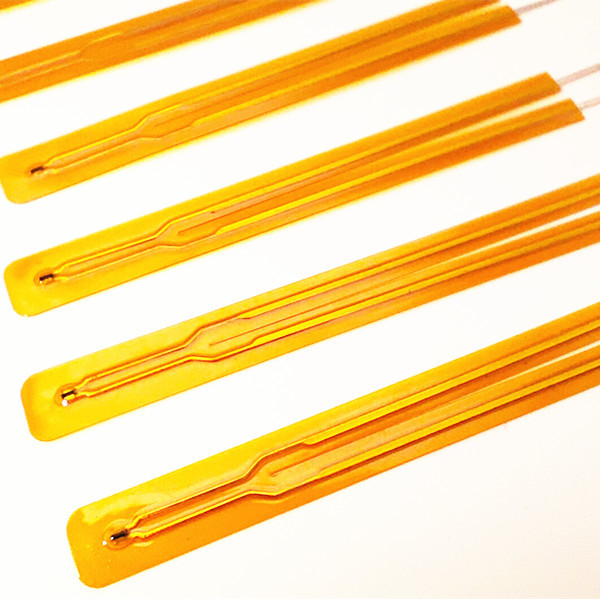

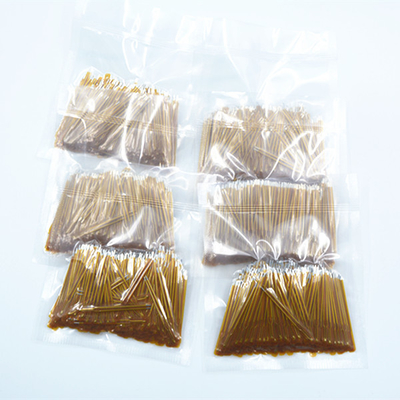

product picture/images:
Notes for product use:
1: Do not bend the resistance wire frame at will to avoid the chip and wire frame fall off and cause poor resistance value
2: welding temperature should not exceed 300℃, welding time should not exceed 0.5 seconds
3: Use a heat gun for heat shrink casing. The temperature of the air gun should be controlled at about 120℃
4: The use of constant temperature soldering iron when welding, the iron head is flat, one hand with the resistance, the other hand with the wire for touch welding, can improve production efficiency and shorten the welding time
5: Special tip: Please do not touch the chip
