| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-5Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20K per month |
| Resistance Value: | 2*2.252KΩ±0.1℃ | Beta Value: | B25/50=3935K |
|---|---|---|---|
| Probe: | 2*Drop Maxφ2.0*8 White | Wire: | PVDF 2C*28AWG 1/0.3 WHITE |
| Length: | 1600±20mm | ||
| High Light: | PVDF Wire NTC Thermistor,Breathing Tube Temperature Sensor,Breathing Tube NTC Thermistor |
||

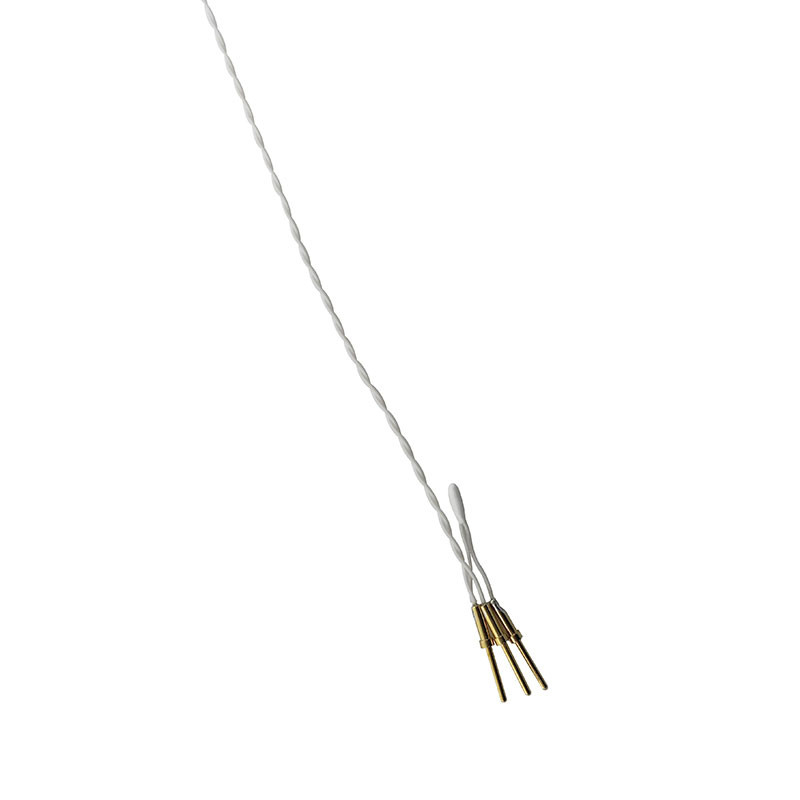

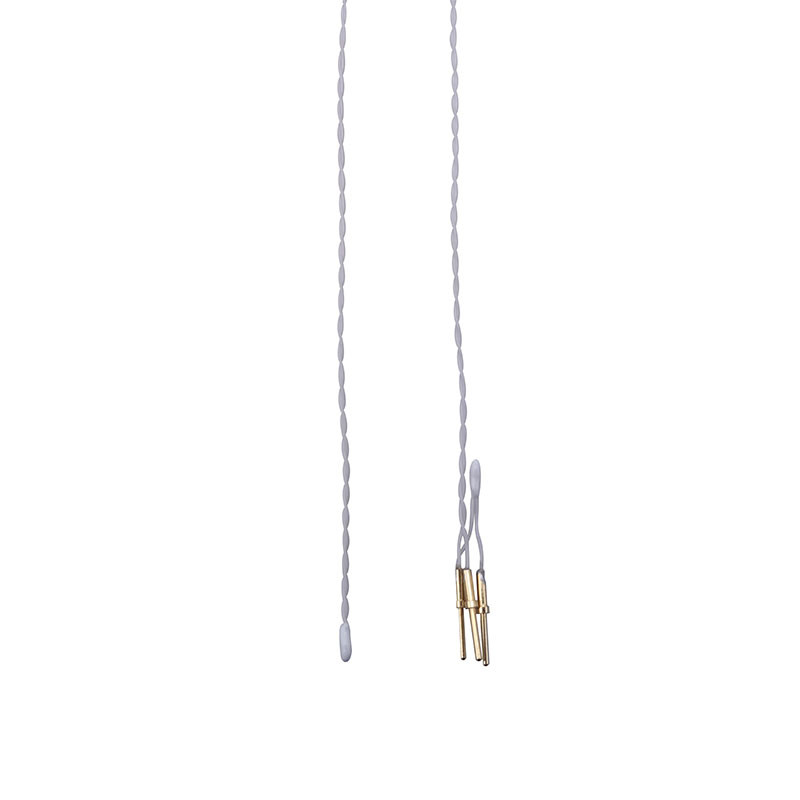

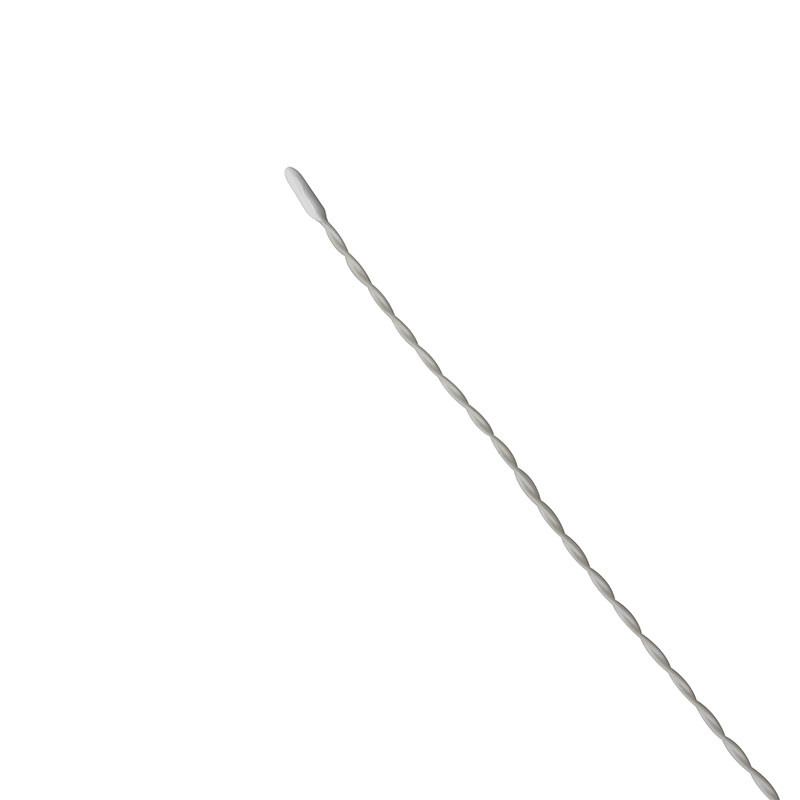

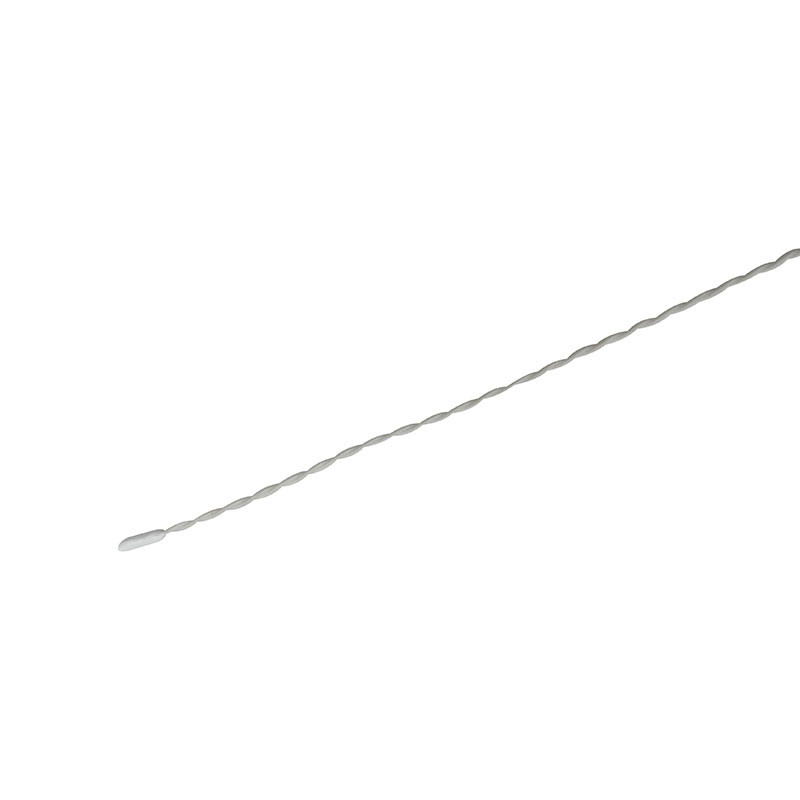

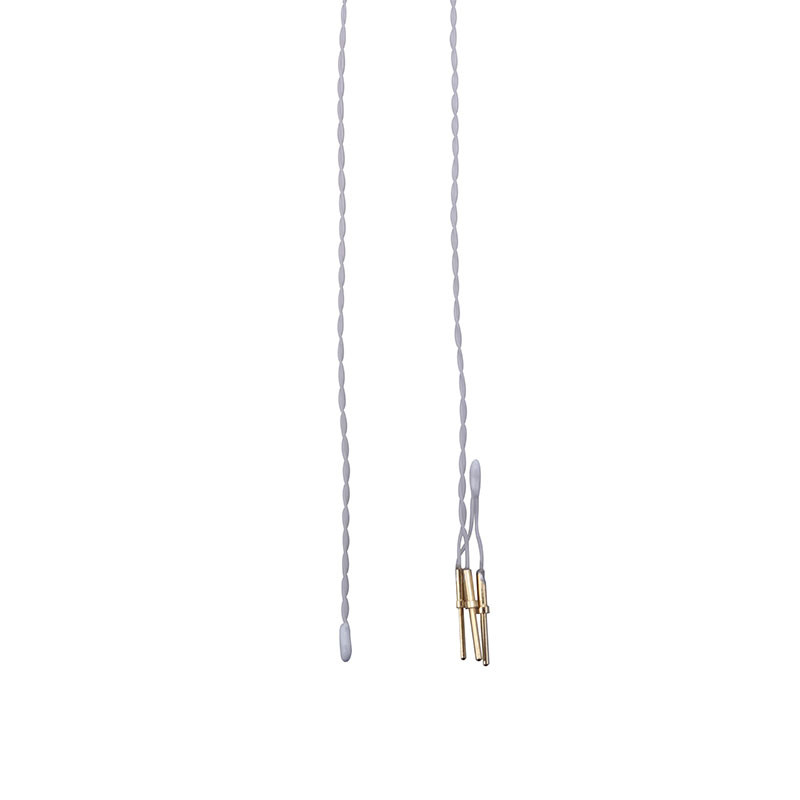

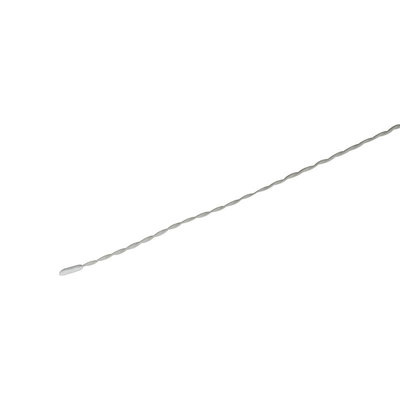

Breathing Tube Temperature Sensor NTC Thermistor
A breathing tube temperature sensor using an NTC (Negative Temperature Coefficient) thermistor is a device designed to monitor and measure the temperature of air or gas flowing through a breathing tube. NTC thermistors are resistors whose resistance decreases with an increase in temperature. They are commonly used in temperature sensing applications.
Selection of NTC Thermistor: Choose an NTC thermistor with a resistance-temperature characteristic that suits your application. NTC thermistors come in various resistance values and temperature coefficients.
Circuit Design: Design a simple circuit that includes the NTC thermistor, a known resistor (for creating a voltage divider), and other necessary components. The voltage across the NTC thermistor will change with temperature, allowing you to measure the temperature based on the resistance.
Calibration: Calibrate the system to correlate the resistance of the NTC thermistor with the temperature. This typically involves measuring the resistance at known temperatures and creating a calibration curve.
Signal Conditioning: Use signal conditioning techniques if needed, such as amplification or filtering, to improve the accuracy and stability of the temperature readings.
Microcontroller/Interface: Connect the sensor to a microcontroller or interface circuit that can process the analog signal from the NTC thermistor and convert it into a digital temperature value. This can be achieved using an analog-to-digital converter (ADC).
Temperature Display/Logging: Display the temperature on a screen, interface, or log it for further analysis. This could involve using an LED display, an LCD screen, or transmitting the data to a computer or other devices.
Integration with Breathing Tube: Incorporate the sensor into the breathing tube, ensuring proper insulation and protection to prevent any interference or damage to the sensor.
Application:
Breathing Tube Temperature Sensor NTC Thermistor is applied for temperature measurement of breathing tube.
