| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF57 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | To be Negotiated |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | R25=50KΩ±1% | Beta Value: | B25/50=3950±1% |
|---|---|---|---|
| Probe Size: | 1.3mm Glass Probe | Application: | Home Appliance, Automotic Electronic, Industrial Device, Etc |
| Chip: | NTC Chip Thermistor | Encapsulation: | Glass Encapsulation |
| Customization: | Support | Shipping: | Air Freight, Sea Freight, Express |
| Highlight: | 50Kohm Glass Bead Thermistor,3950K Glass Bead Thermistor,1.3mm ntc probe sensor |
||
B Value 3950K 50Kohm Glass Bead Thermistor 1.3mm For Automotic Electronic
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor be widely applied for automotive electronics, home appliances, industrial device,s etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R25=50KΩ±1%, B25/50=3950±1%

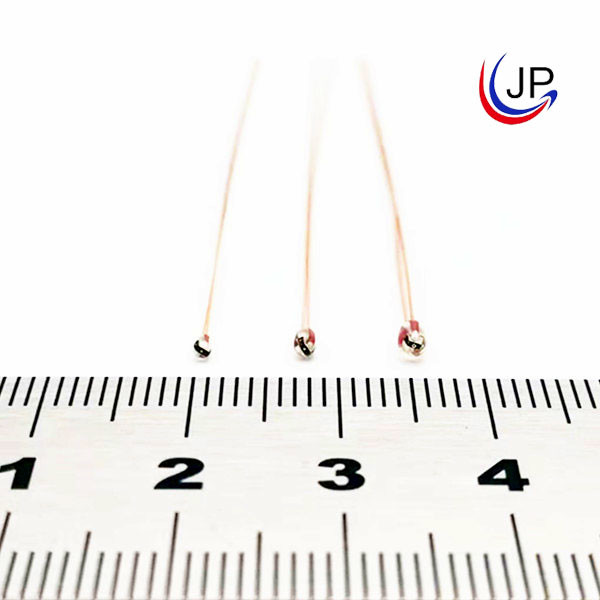

Glass probe 1.3mm
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
