| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 2000PCS |
| Price: | To be negotiated |
| Packaging Details: | 500pcs/bag，Carton Box |
| Delivery Time: | 5~8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Features: | Thin, Fast Response Time | Product Name: | Film NTC Thermistor |
|---|---|---|---|
| Model Number: | MF5A-6 | Operating Temperature Range:: | -40℃~100℃ |
| Application: | Home Appliances, Computer, Printer, Battery Pack | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | By Air, By Sea, Express | Material: | NTC Chip, Polyimide Film, Phosphor Bronze |
| Highlight: | 10Kohm Thermistor Type Temperature Sensor,3435K thermistor type temperature sensor,3.6mm ntc thermistor sensor |
||
10Kohm Thermistor Type Temperature Sensor
Brief Introduction:

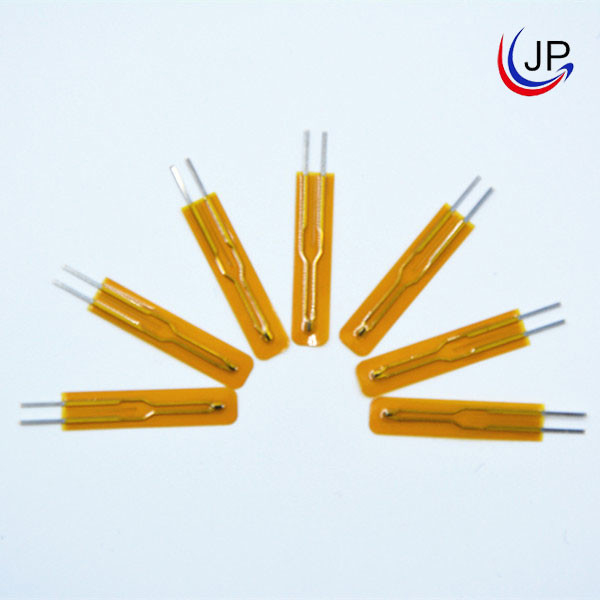

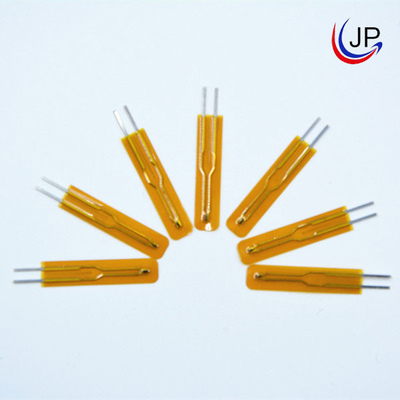

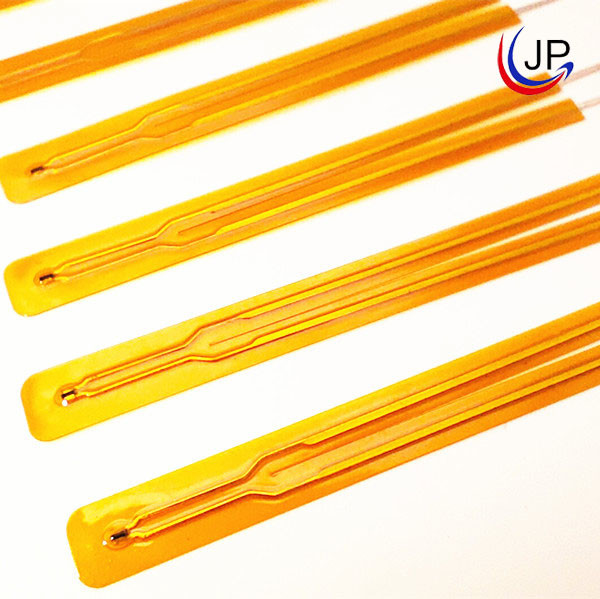

Film type NTC thermistor is composed of an NTC chip, phosphor bronze bracket and polyimide film. Its thickness is around 0.60mm. It’s one type of surface-mounted NTC thermistor sensor with a fast response time.
Features:
Thin-film type
Thin, fast response time
Operating temperature range: -40℃~100℃
Application:
Home appliances, computer, printer, Battery pack
Part Number Code:
Structure and Dimensions:

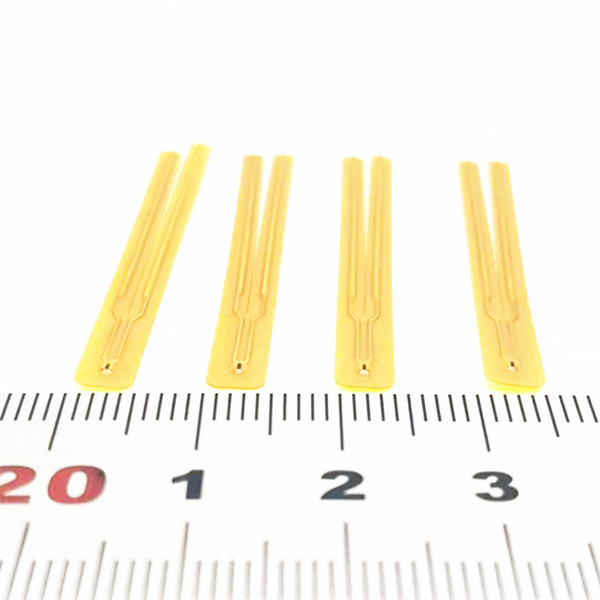

| probe Size | L | L1 | L2 | H | d1 | d2 | d3 |
| 3.6*25 | 25±1 | 20±1 | 8±1 | 3.6±0.2 | 0.15 | max0.6 | 0.5 |
| 3.6*50 | 50±1 | 45±1 | 33±1 | 3.6±0.2 | |||
| 4.5*25 | 25±1 | 20±1 | 8±1 | 4.5±0.2 | |||
| 4.5*50 | 50±1 | 45±1 | 33±1 | 4.5±0.2 | |||
| 3.9*25 | 25±1 | 20±1 | 8±1 | 3.9±0.2 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Polyimide film | 1 | / |
| 3 | Probe | Phosphor bronze | 1 | / |
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
