| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001 |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 1000 Pieces |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3KΩ~ 2000KΩ | Beta Value: | 2500K~4500K |
|---|---|---|---|
| Temperature Measuring Range: | -20℃~105℃ (-22°F To +221°F) | Feature: | Waterproof Aluminum/Copper Shell |
| OEM/ODM: | Available | Customization: | Available |
| High Light: | jingpu Sensitive thermistor based temperature sensor,jingpu Copper thermistor based temperature sensor,jingpu Aluminum ntc temperature measurement |
||

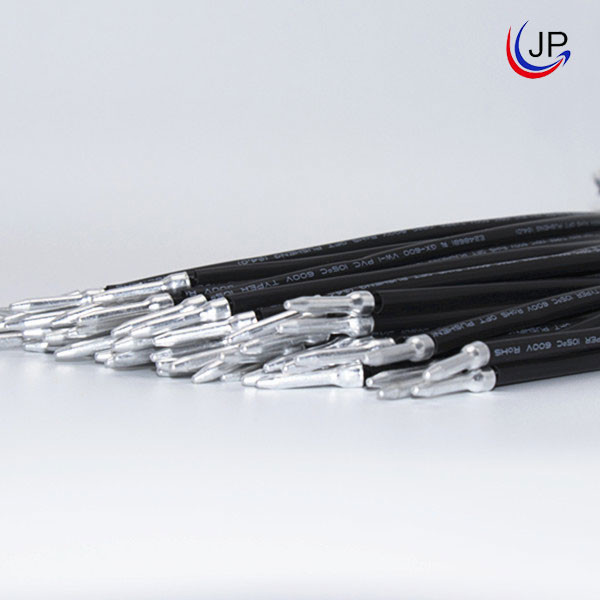

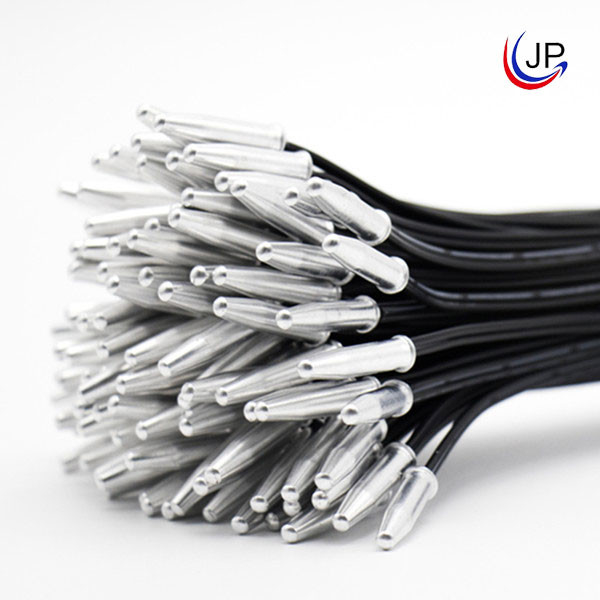

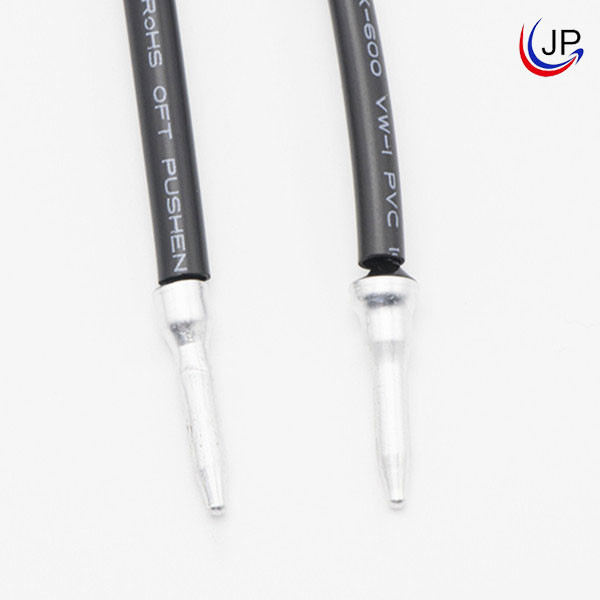

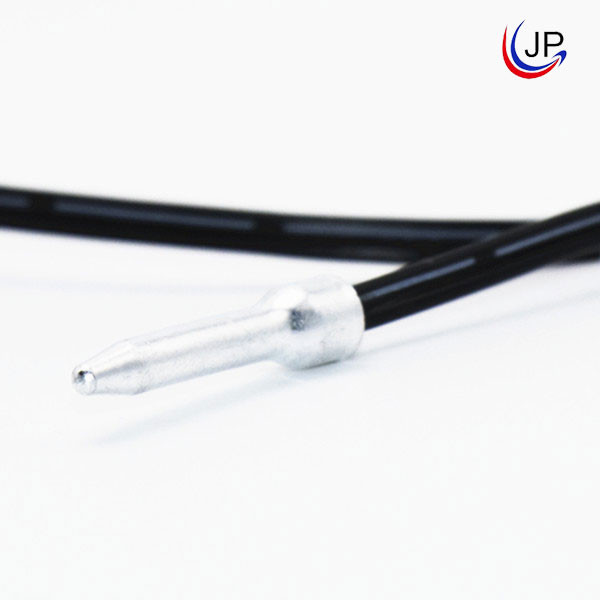

Aluminum Copper Sensitive Thermistor Based Temperature Sensor For Air Conditioning Evaporator
Brief Introduction:
The A/C air conditioner temperature sensor is mainly used for Air conditioning Evaporator. The A/C air conditioner temperature sensor consists of the insulated wire (PVC cable, XLPE insulated wire), NTC chip, epoxy resin, and Aluminum shell. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
PVC insulated lead wires temperature sensor, measuring temperature range: -20℃~105℃ (-22°F to +221°F)
Waterproof Aluminum/Copper shell
Widely Application:
A/C Air conditioning Evaporator
For Household Appliances: Air conditioner, refrigerator, freezer, water heater, air heater, dishwasher, etc.
For Car: Automobile air conditioner, water temperature sensor, intake air temperature sensor, engine.
Temperature Control System: Greenhouse, aquarium, etc.
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
