| Thermistor: | Glass Bead NTC Thermistor | Resistance: | R100=3.3KΩ |
|---|---|---|---|
| Beta Value: | B0/100=3970K | Voltage Withstanding: | 1500V/1sec/1mA |
| Operating Temperature Range: | -40℃~200℃ | Probe: | Tube |
| OEM/ODM: | Available | Customization: | Available |
| High Light: | ntc temperature probe b0/100,b0/100 3.3K ntc temperature probe,b0/100 R100 ntc thermistor sensors |
||
R100 3.3K B0/100 NTC Temperature Probe 3970K Stranded Wire For Electric Motor In HEV EV
Product Description:

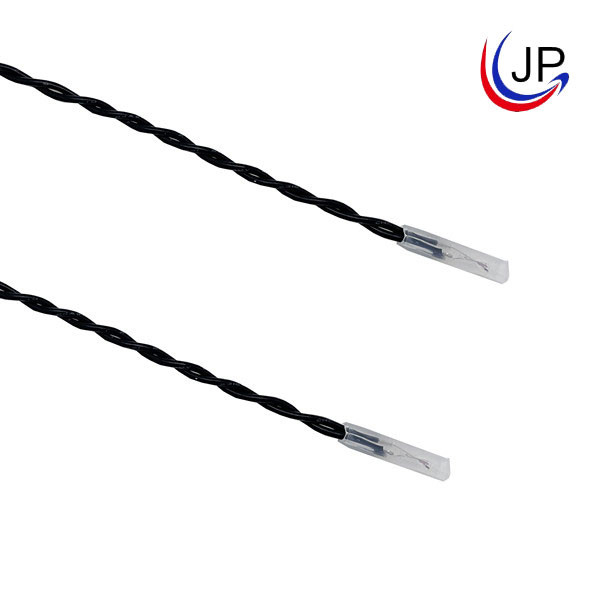

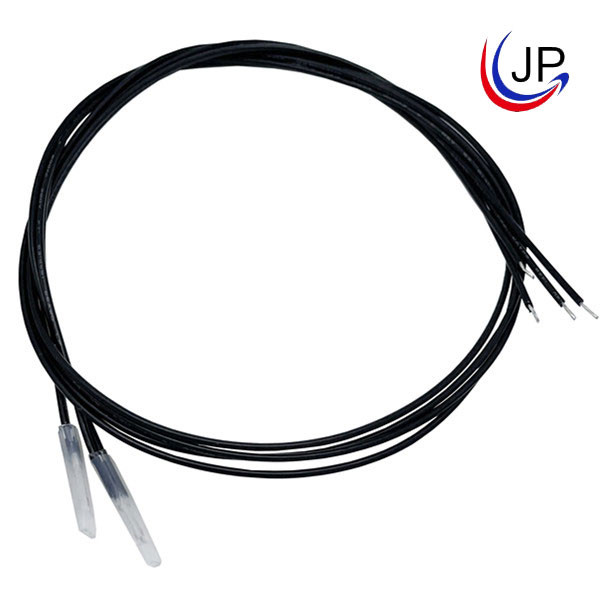

This product is designed for the temperature monitoring of electric vehicles. The sensor is made of polycrystalline mixed oxide ceramics and soldered with UL 1332 insulated wire 24AWG. Most temperature probe housings are rectangular tubes. Its parameters are R100=3.3KΩ, B0/100=3970K, and voltage withstanding 1500V/1sec/1mA.
Features:
RoHS compliant
High temperature resistant
Oil-proof
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ, B0/100=3970K
Application:
The motor in Electric vehicles (EV)
The motor in Hybrid electric vehicles
Temperature measurement and temperature monitoring
Structure and Dimensions:
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5 dimension (mm) | 3.5 | 15 | 2.0 | 2.3 | 500 | 3 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | tube (rectangular) | 1 | / |
| 3 | Wire | UL1332 24AWG stranded wire 200℃ | 1 | Black |
| 4 | Stripping | tinned | 2 |
| Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
