| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Features: | Comply For RoHS Standard, Easy To Install | Resistance Value: | 50KΩ / 100KΩ |
|---|---|---|---|
| Beta Value: | B25/50=3950K (Can Be Customized) | Probe: | Stainless Steel Probe |
| Wire: | UL4413 26AWG XLPE 150°C Irradiated Wire | ODM/OEM: | Available |
| Customization: | Supoport | Operating Temperature Range: | -40℃ ~ 125℃ |
| Highlight: | NTC Probe Temperature Sensor,Epoxy Resin Probe Temperature Sensor,Home Appliances ntc probe resistance |
||

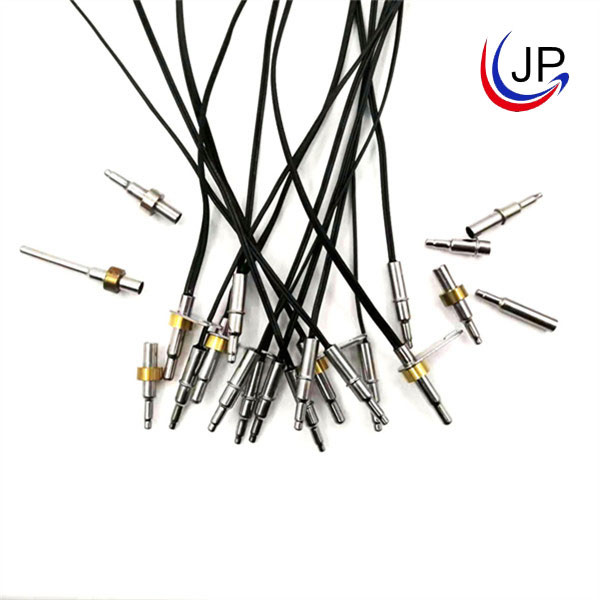

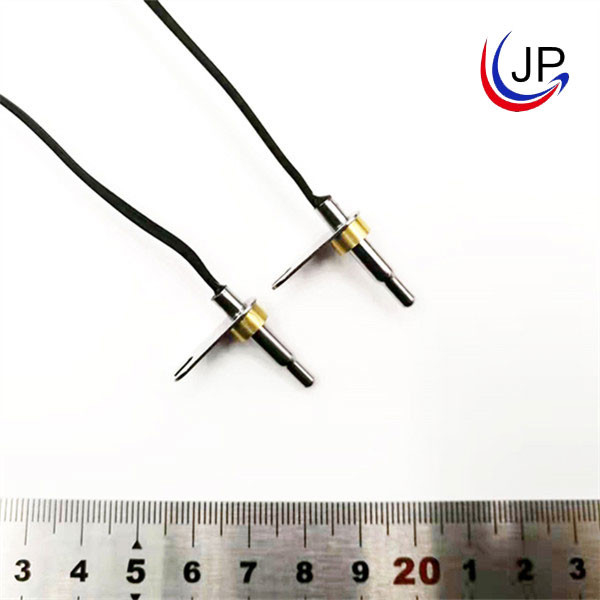

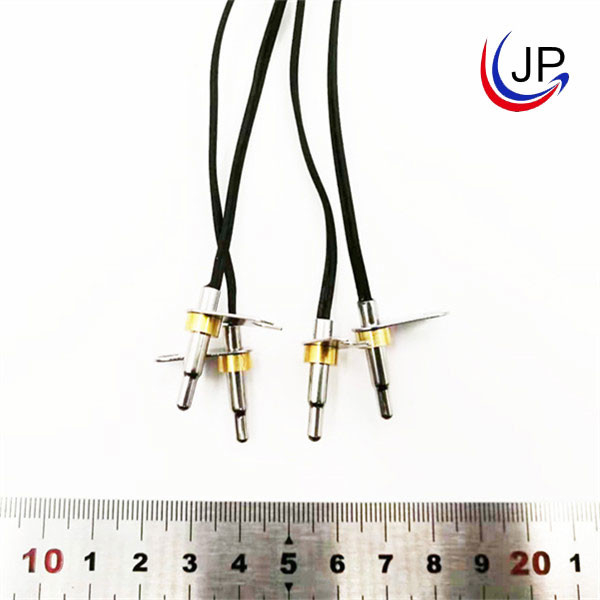

Fast Response UL4413 26AWG Cable Epoxy Resin NTC Temperature Sensor For Home Appliances
Product Description:
This product is generally used in electric kettles and other small home appliances. Its probe is stainless steel, the wire is UL4413 26AWG XLPE 150°C irradiated wire, and the resistance values are generally 50KΩ, 100KΩ, B25/50=3950K (can also be customized according to customers’ requirements), and it is epoxy resin encapsulated, the wire tail can be fabricated with corresponding connectors (PH-2Y) according to customers’ requirements.
Features:
Easy to install
Stainless steel probe
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Application:
Electric water heater, electric kettle, and other small home appliances.
Structure and Dimensions:(unit: mm)
| NO. | Name | Components | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Probe | SUS 304 Stainless Steel | 1 | / |
| 3 | Encapsulation | Epoxy Resin | 1 | / |
| 4 | Wire | UL4413 26AWG 150℃ | 1 | / |
| 5 | Connector | PH-2y | 1 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
