| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Features: | Comply For RoHS Standard, Easy To Install | Resistance Value: | 50KΩ |
|---|---|---|---|
| Beta Value: | B25/50=3950K (Can Be Customized) | Probe: | Stainless Steel Probe |
| Wire: | UL4413 26AWG XLPE 150°C Irradiated Wire | ODM/OEM: | Available |
| Customization: | Supoport | Operating Temperature Range: | -40℃ ~ 125℃ |
| High Light: | B25/50 Probe Temperature Sensor,Probe Temperature Sensor 3950K,Home Appliances ntc probe resistance |
||

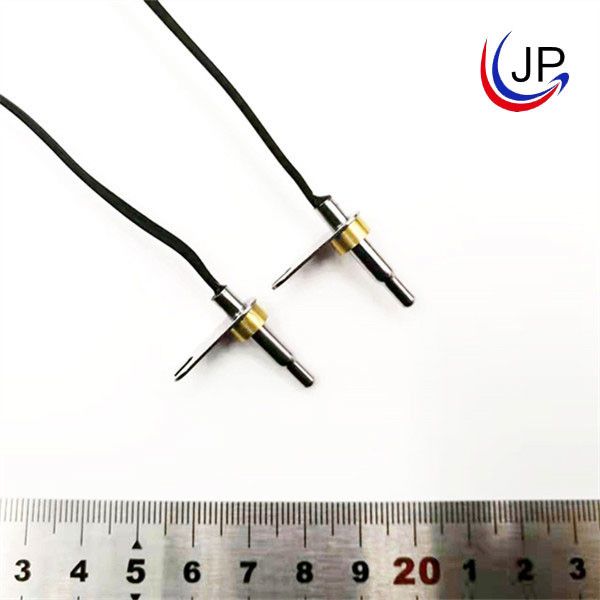

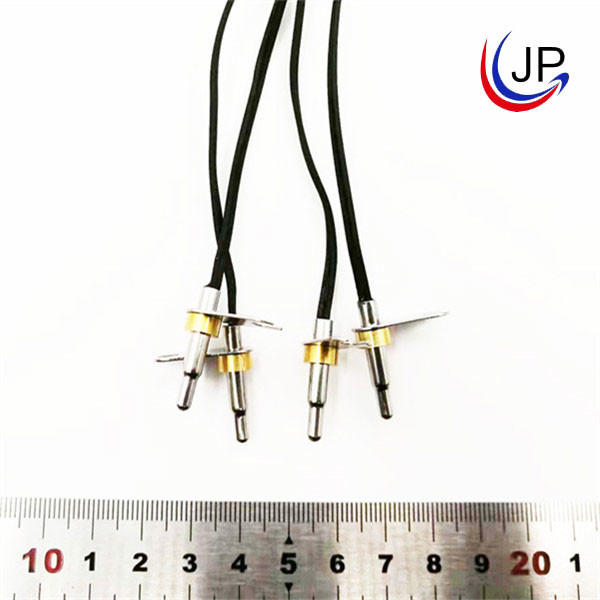

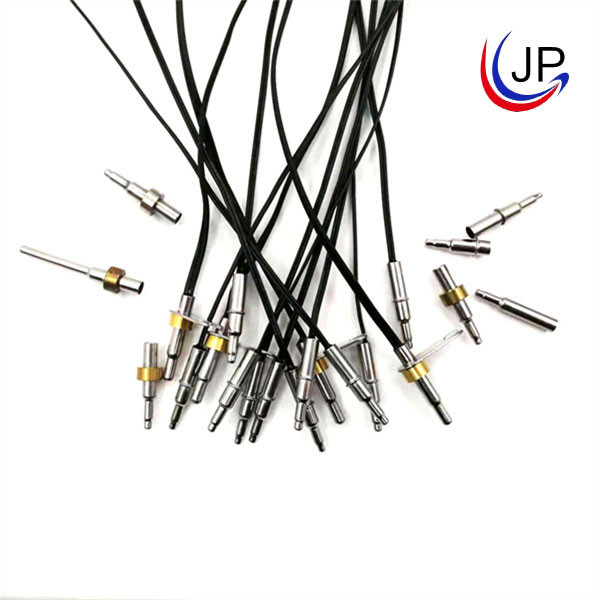

Fast Response NTC Temperature Sensor For Home Appliances
Product Description:
Its probe is stainless steel, the wire is UL4413 26AWG XLPE 150°C irradiated wire, and the resistance values are generally 50KΩ 3950K (can also be customized according to customers’ requirements)
Features:
Easy to install
Stainless steel probe
Operating temperature range: -40℃~125℃
R25℃=50kΩ±1%
B25/50=3950k±1%
UL4413 26AWG 150℃
Application:
Electric water heater, electric kettle, and other small home appliances.
Structure and Dimensions:(unit: mm)
| NO. | Name | Components | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Probe | SUS 304 Stainless Steel | 1 | / |
| 3 | Encapsulation | Epoxy Resin | 1 | / |
| 4 | Wire | UL4413 26AWG 150℃ | 1 | / |
| 5 | Connector | PH-2y | 1 | / |
