| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |

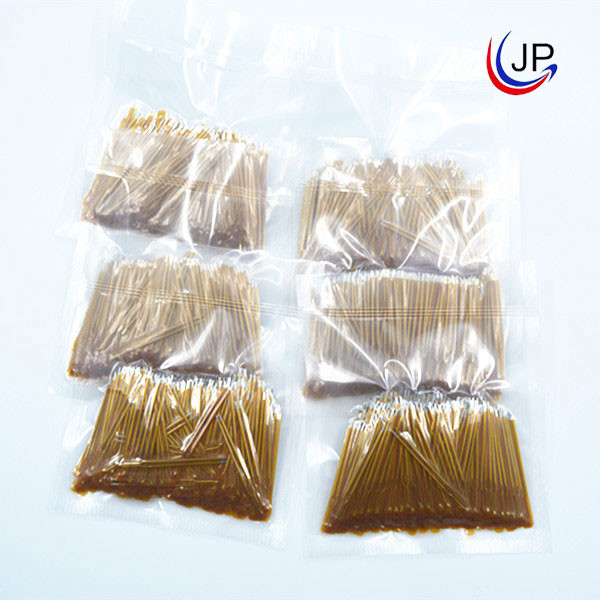

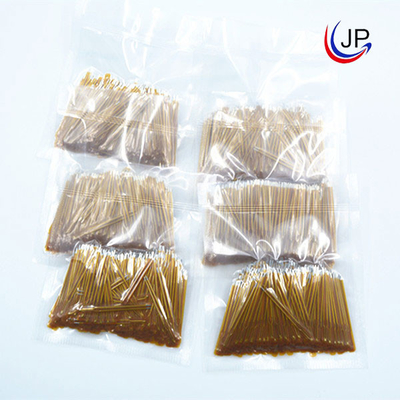

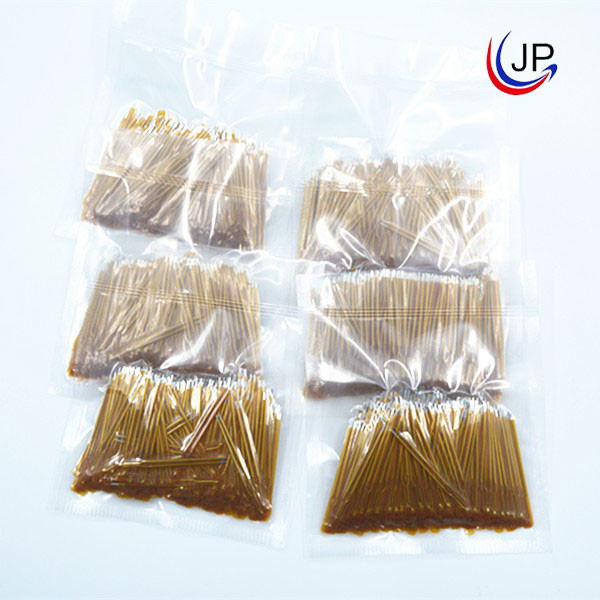

| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Film Width: | 4.5mm | Film Length: | 25mm |
|---|---|---|---|
| Film Thickness: | 0.6mm | Parameters: | 10KΩ3435K/10KΩ3977K/100KΩ4200K |
| Operating Temperature Range: | -40℃~100℃ | Application: | Home Appliances, Computer, Printer, Battery Pack |
| Shipping: | Air Freight, Sea Freight, Express | Opional Resistance Tolerances Are: | ±1%，±2%，±3%，±5% |
| High Light: | Polyimide thermistor type temperature sensor,thermistor type temperature sensor 4.5mm,25mm ntc type temperature sensor |
||

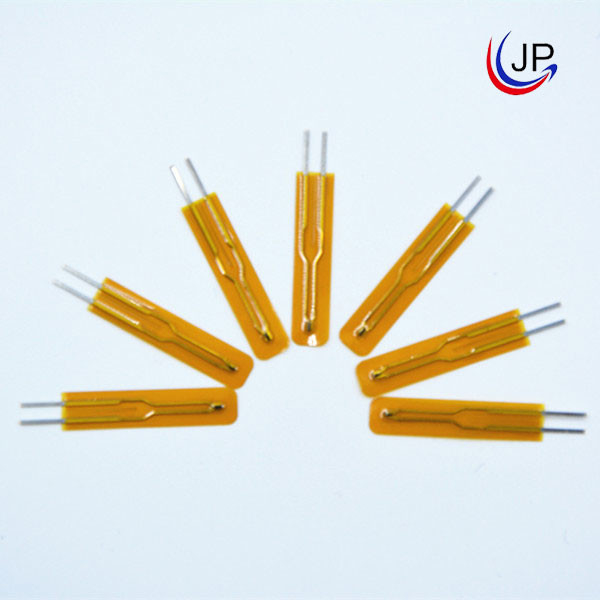

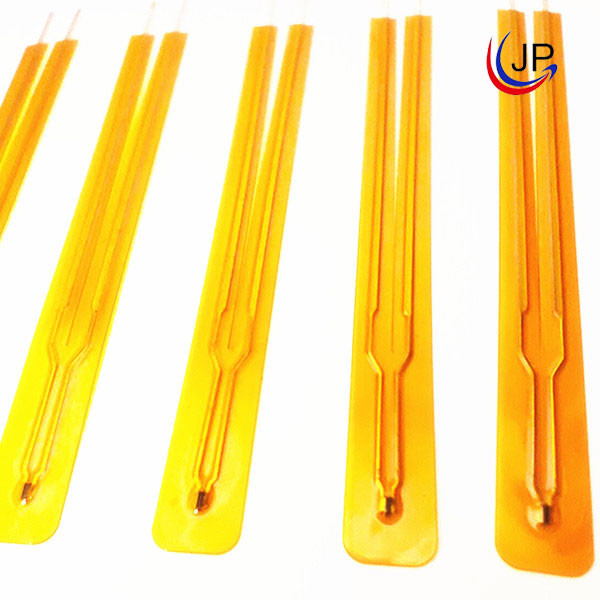

25mm Polyimide Thermistor Type Temperature Sensor 4.5mm
Brief Introduction:
This is another type of MF5A-6 Film type NTC thermistor. Its film width is 4.5mm, the total length is 25mm and the thickness is Max 0.6mm. The parameters are This is another type of MF5A-6 Film type NTC thermistor. Its film width is 3.6mm, the total length is 50mm and the thickness is Max 0.6mm. The parameters are 10KΩ 3435K,10KΩ 3977K,100KΩ 4200K.
Features:
Thin-film type
thin, fast response time
Operating temperature range: -40℃~100℃

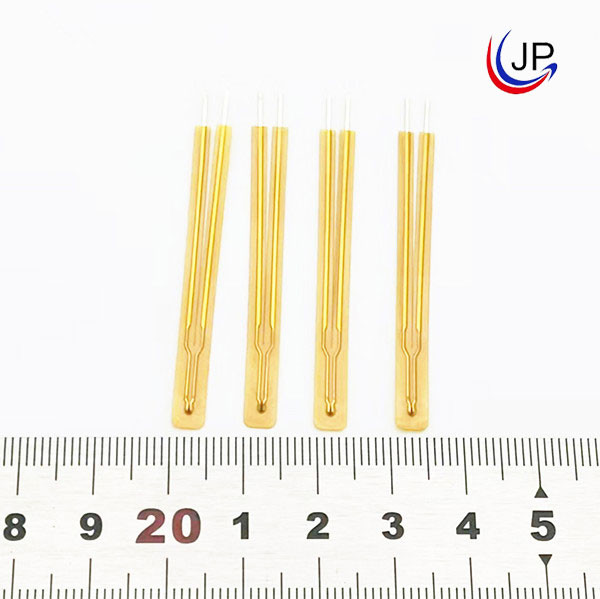

Film width: 4.5mm,Length: 25mm
Widely used
Optional Resistance Tolerances are: ±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, Battery pack
Part Number Code:
Structure and Dimensions:
| Probe Size | L | L1 | L2 | H | d1 | d2 | d3 |
| 3.6*25mm | 25±1 | 20±1 | 8±1 | 3.6±0.2 | 0.15 | max0.6 | 0.5 |
| 3.6*50mm | 50±1 | 45±1 | 33±1 | 3.6±0.2 | |||
| 4.5*25mm | 25±1 | 20±1 | 8±1 | 4.5±0.2 | |||
| 4.5*50mm | 50±1 | 45±1 | 33±1 | 4.5±0.2 | |||
| 3.9*25mm | 25±1 | 20±1 | 8±1 | 3.9±0.2 |
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
