| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 0.3kΩ To 2000kΩ | B Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -20℃~105℃(PVC) | Application: | Machinery For Agriculture, Electrical Devices |
| Probe: | SUS Probe | Cable: | PVC 26AWG 105℃ |
| Chip: | NTC | ||
| Highlight: | Epoxy NTC Temperature Probe,Thread Type ntc temperature probe,2000k ntc type temperature sensor |
||

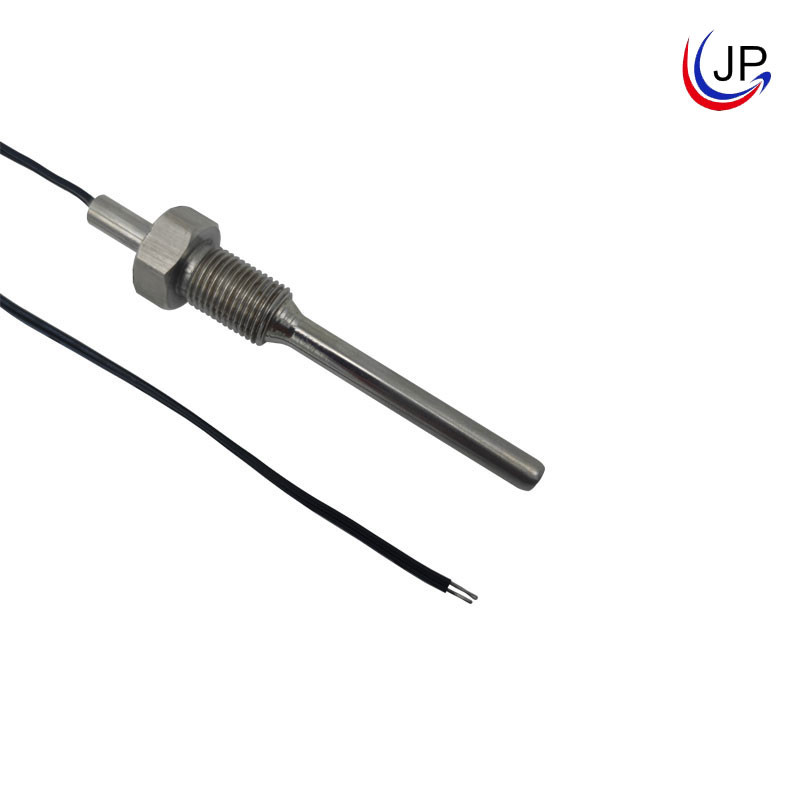

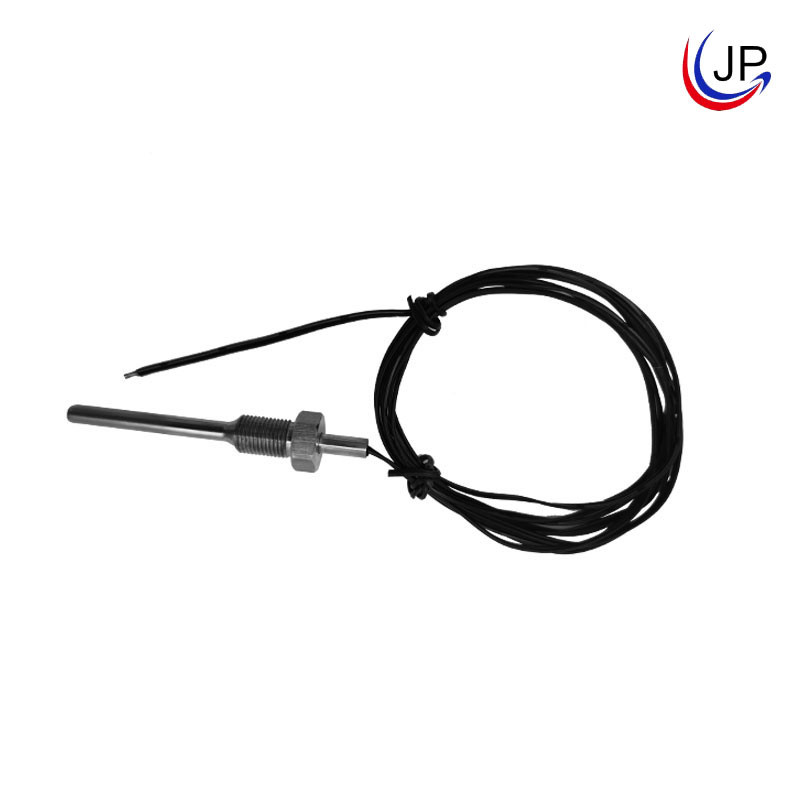

Stainless Steel M10 Thread Type Probe Epoxy NTC Thermistor Temperature Sensor
Product Description:
It consists of the insulated wire ( wire, PVC wire, XLPE insulated wire), NTC chip and epoxy resin, and Stainless Steel M10 Thread Type Probe. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
insulated lead wires series Operating temperature range: -40℃~125℃
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Easy to install and operate as the sealing can be done according to the environment
Application:
Machinery for agriculture, Electrical Devices
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( wire) | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
