| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFE1 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 10KΩ | B Value: | 3950k |
|---|---|---|---|
| Wire: | Insulated Wire ( Wire、PVC Wire、XLPE Insulated Wire) | Resistance Value Range: | 0.3kΩ To 2000kΩ |
| B Value Range: | 2500K To 4500K | Operating Temperature Range: | -20℃~105℃(PVC) |
| High Light: | jingpu Epoxy NTC Temperature Sensor,jingpu 3950K NTC Temperature Sensor,jingpu ISO9001 ntc 10 thermistor |
||

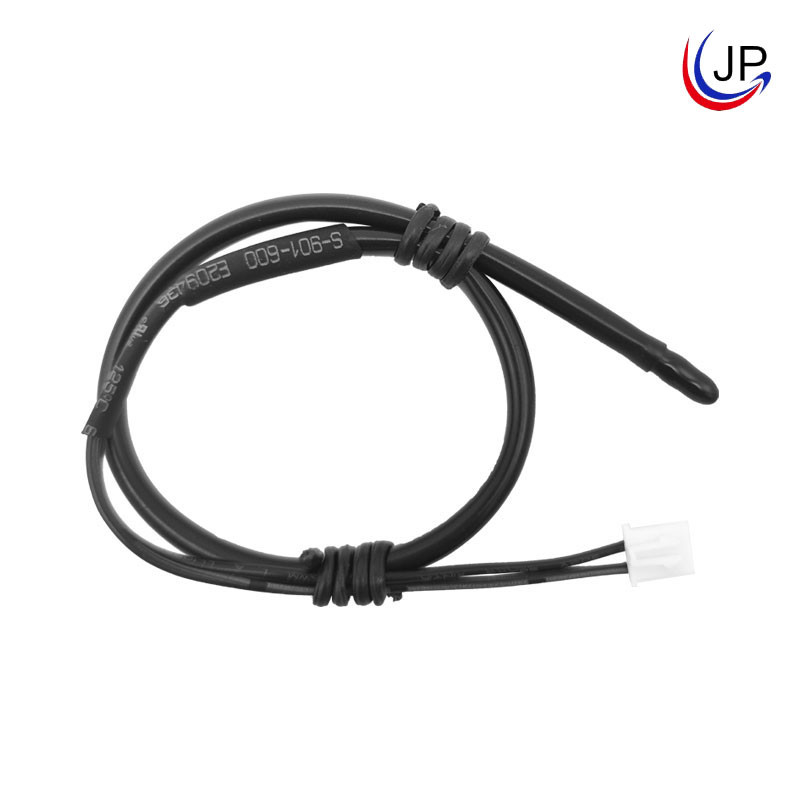

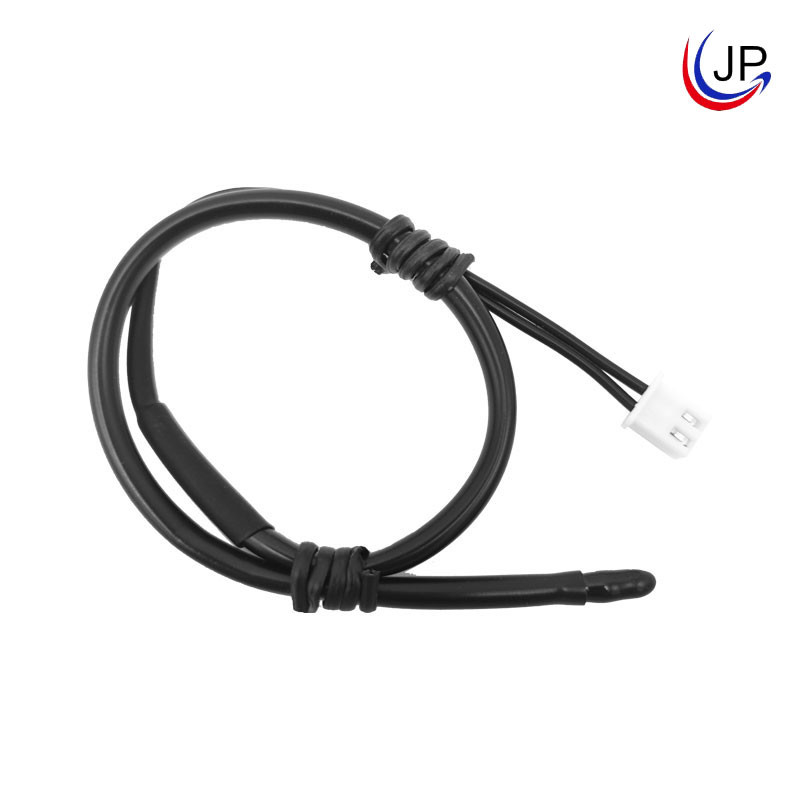

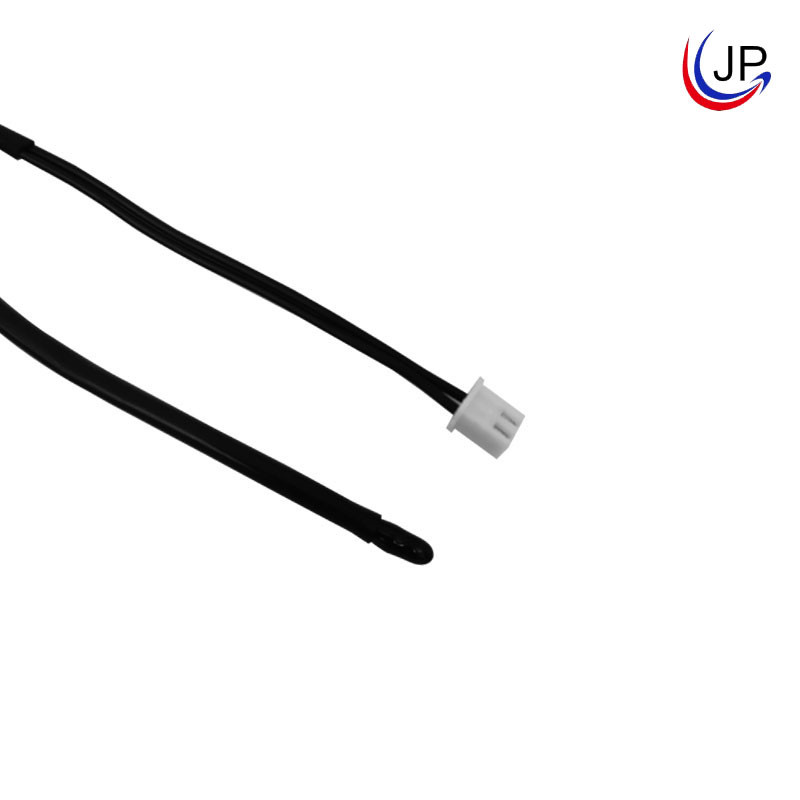

3950K 10K Epoxy NTC Temperature Sensor For Integrated Dropped Ceiling
Brief Instruction (Product Description):
It consists of the insulated wire ( wire, PVC wire, XLPE insulated wire), NTC chip, and epoxy resin. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Good stability and reliability
Easy to install and operate as the sealing can be done according to the environment
Accurate testing can reflect temperature changes precisely.
AC1500V 1m 1S
Application:
Applicable to the temperature measurement of dropped ceiling
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
