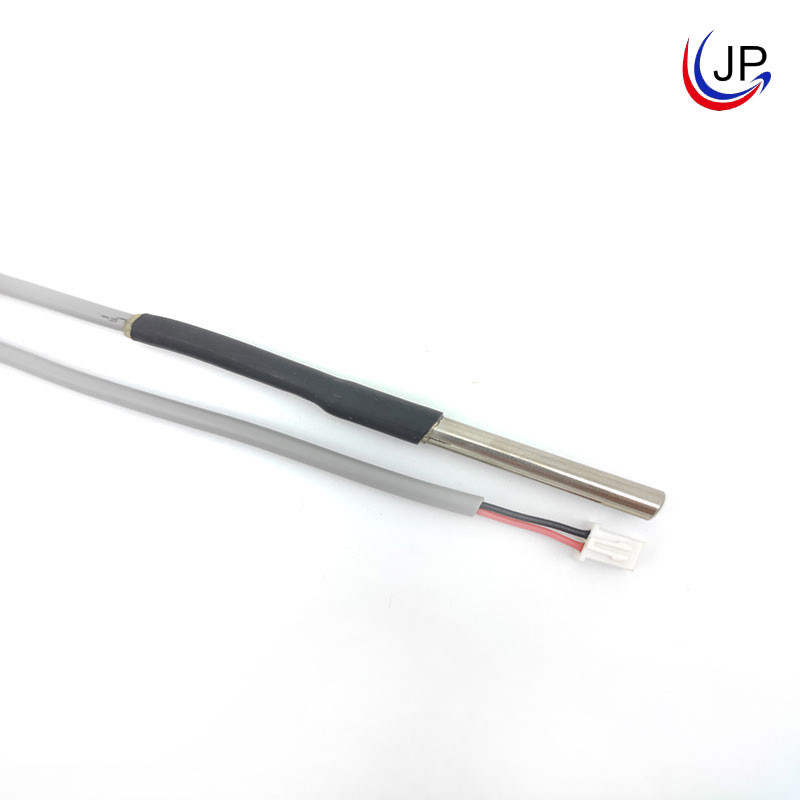

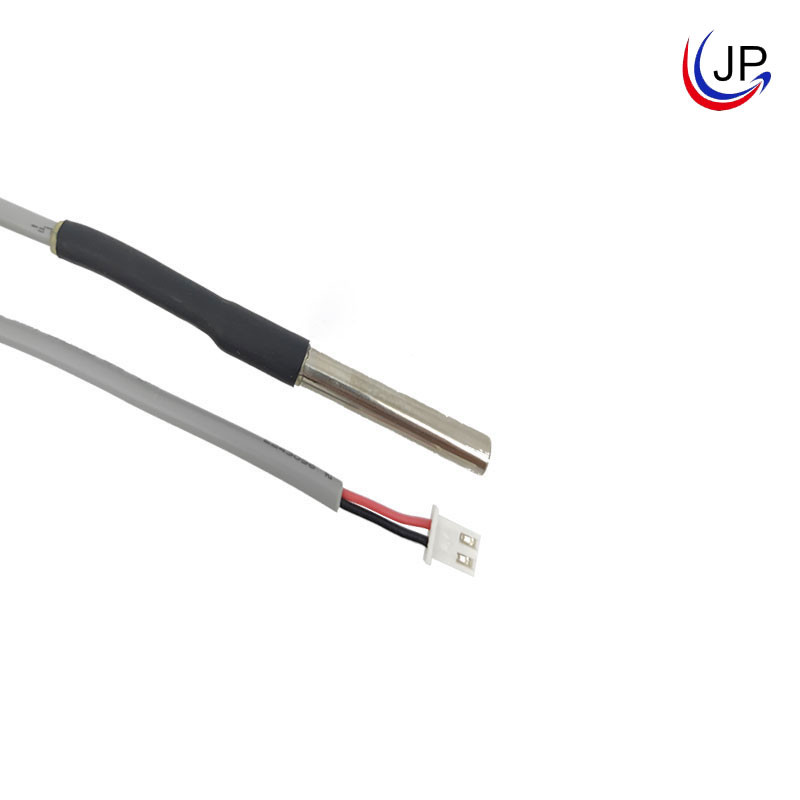

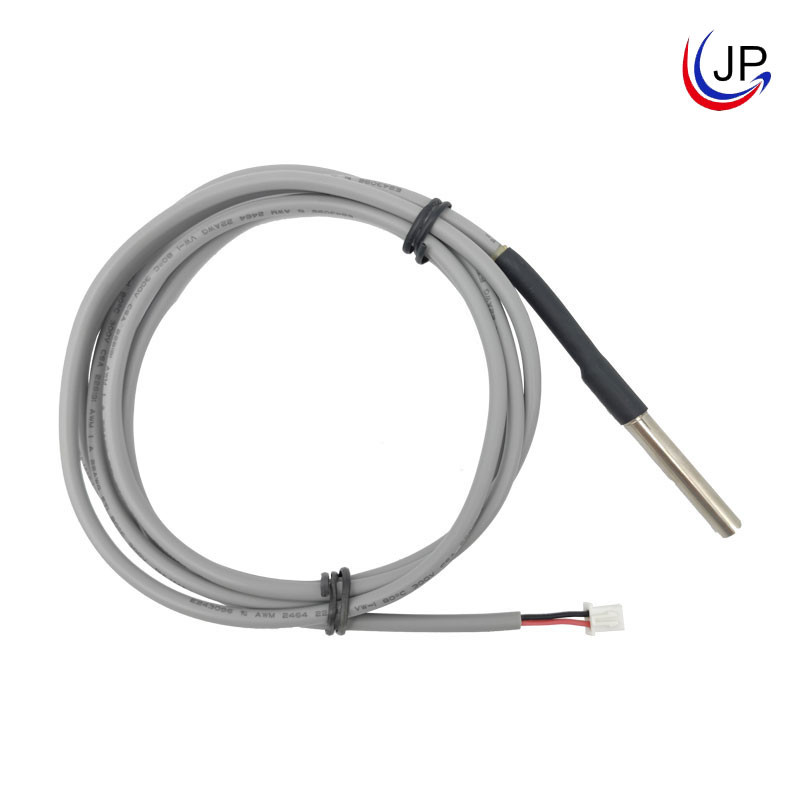

PVC Cable NTC Probe Temperature Sensor

Basic Information
Place of Origin: Anhui, China
Brand Name: JP SENSOR
Certification: ISO9001, RoHS
Model Number: MFP
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Standard Packing
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Million per Year
Detail Information
Resistance Range: 0.3kΩ To 2000kΩ B Value Range: 2500K To 4500K
Operation Temperature Range: -20℃~80℃ Usage: Home Appliances, Industrial Intelligent Controller
Chip: NTC Chip Tube: Heat-shrinkable Tube
After-sale Service: Quality Assurance Warranty: 2 Years
Highlight:

PVC Cable NTC Probe Temperature Sensor

,

2000k ntc probe temperature sensor

,

0.3k ntc temp probe


Product Description

SUS Probe PVC Cable NTC Thermistor Housing temperature probe





Brief Introduction:


It consists of lead wires (PVC insulated wire, insulated wire, XLPE insulated wire), an NTC resistor, cylindrical housing ( stainless steel tube, copper tube, and plastic housing), and a connector. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.



Features:


Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -20℃~80℃

Stable



Application:


Home appliances (A/C, refrigerator, etc)

Industrial intelligent controller



Structure and Dimensions:


PVC Cable NTC Probe Temperature Sensor 0

Electrical Specification:


Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -40℃~125℃ 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
