| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2F |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 0.3kΩ To 2000kΩ | Beta Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -20℃~80℃ | Application: | Home Appliances, Industrial Intelligent Controller |
| Feature: | Comply With RoHS Standard | Customization: | Available |
| High Light: | ISO9001 Thermistor Housing,Thermistor Housing Temperature Probe,Cylindrical sensor thermistor ntc |
||

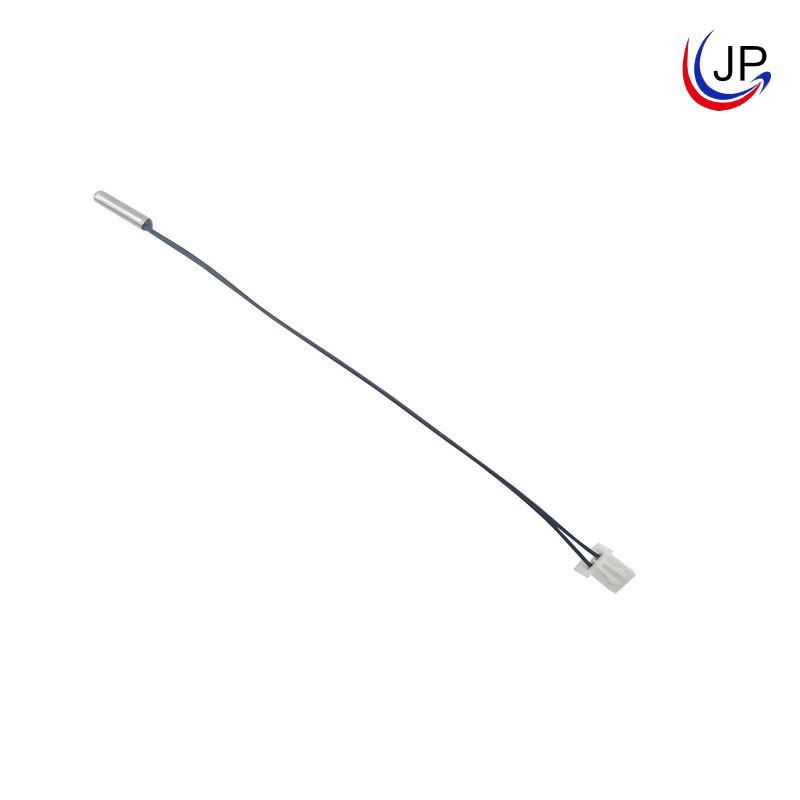

Cylindrical ISO9001 Thermistor Housing Temperature Probe 10K For Home Appliances And Industrial Intelligent Controller
Brief Introduction:

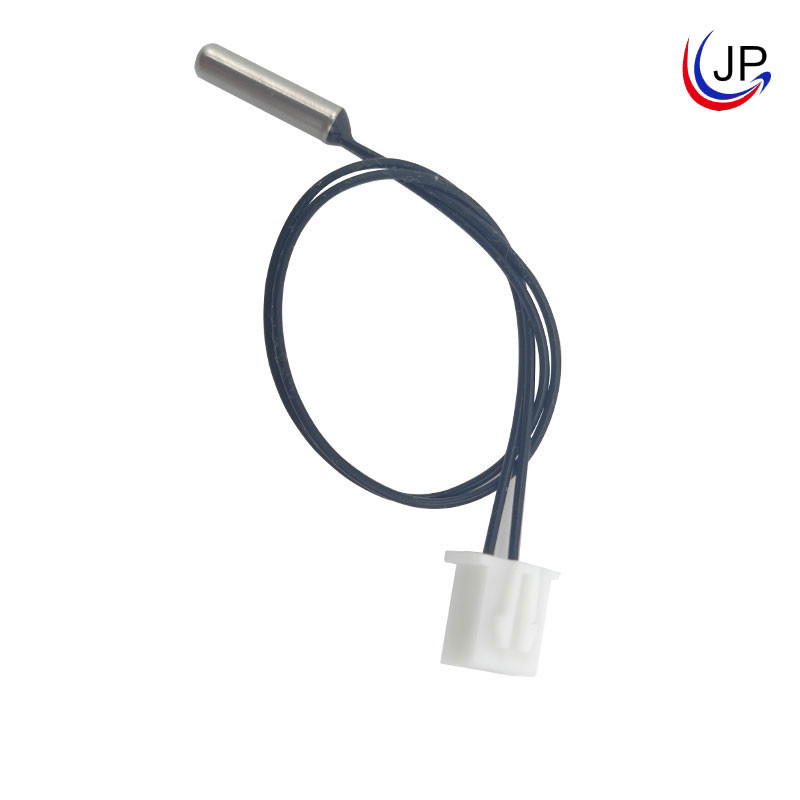

It consists of lead wires (PVC insulated wire, teflon insulated wire, XLPE insulated wire), an NTC resistor, cylindrical housing ( stainless steel tube, copper tube, and plastic housing) and connector. The optional resistance value range from 0.3kΩ to 2000kΩ, and the beta value range from 2500K to 4500K.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~80℃
Stable performance
Application:
Home appliances (A/C, refrigerator, etc)
Industrial intelligent controller
Electrical specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
