| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |

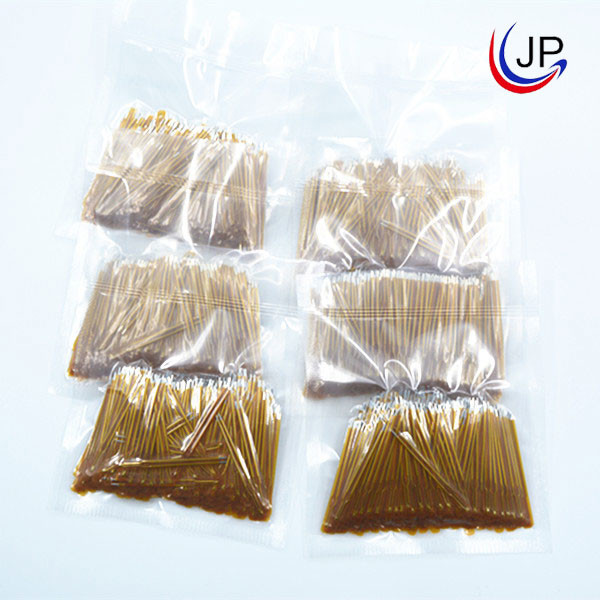

| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 10KΩ | B Value: | 3435k |
|---|---|---|---|
| Operation Temperature Range: | -40℃~100℃ | Tolerance: | ±1%，±2%，±3%，±5% |
| Use: | Home Appliances, Computer, Printer, Battery Pack | Chip: | NTC Chip Thermistor |
| Film: | Polyimide | Custom: | Affirmative |
| High Light: | 10K Thin Film NTC Thermistor,Thin Film NTC Thermistor 3435k,Polyimide NTC Temperature Sensor |
||

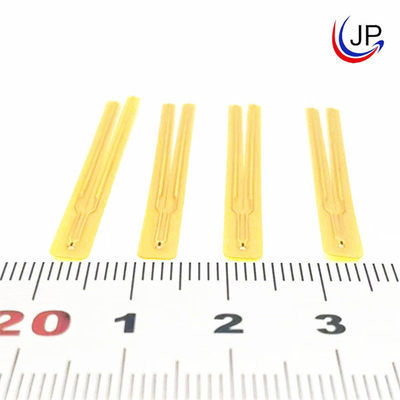

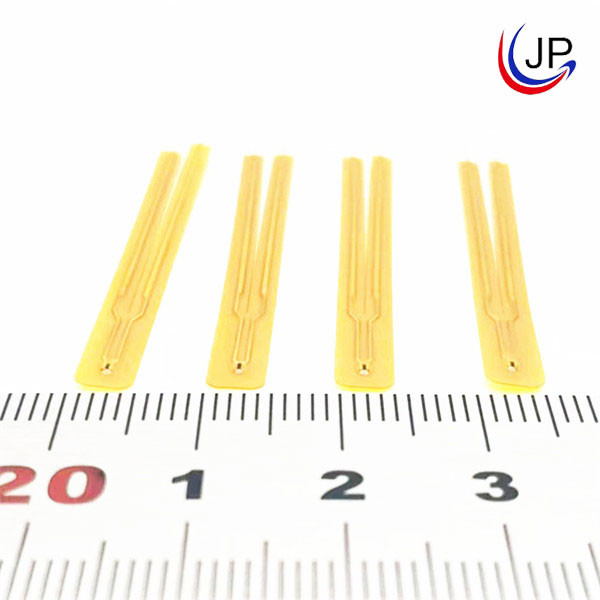

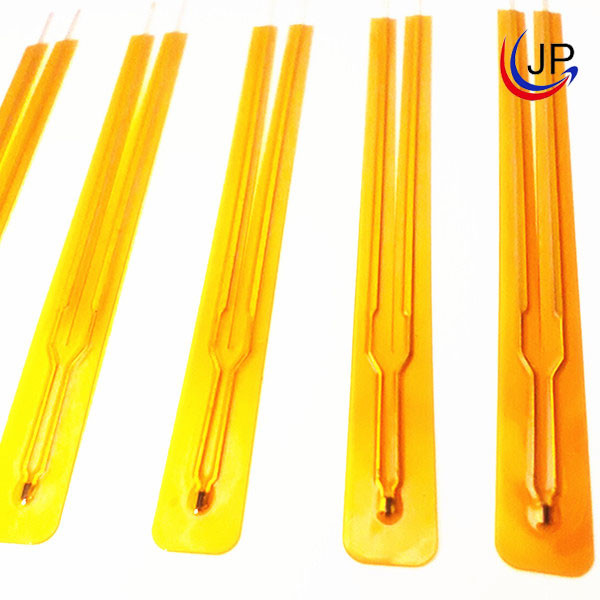

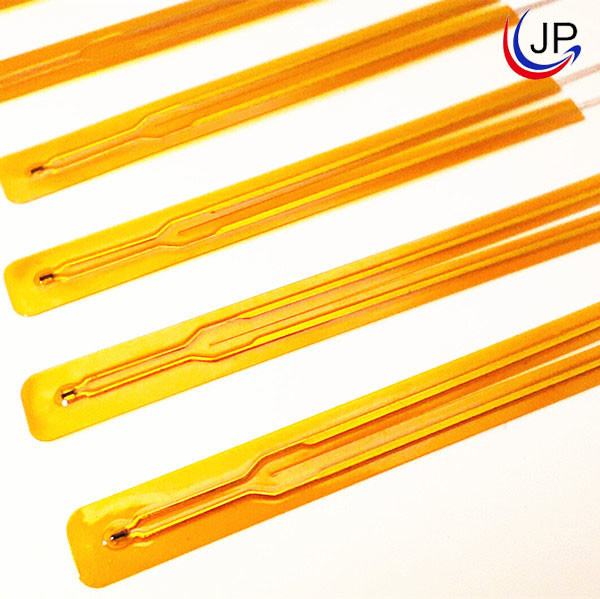

10K Polyimide Thin Film NTC Thermistor 3435k NTC Temperature Sensor
Product Description:
The size of the film of this product is 25mm (Length) x 4.5mm (Width) x Max 0.6mm (Height)
Features:
Operating temperature range: -40℃~100℃
Optional resistance tolerances: ±1%,±2%,±3%, and ±5%.
Thin-film type
Thin, fast response
Application:
Computer, printer, home appliances, battery pack.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
