| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Length: | Max 0.6mm | Widths Of The Thin Film: | 4.5mm Or 3.6mm |
|---|---|---|---|
| Resistance: | 10KΩ3435K Or 10KΩ3977K | Operating Temperature Range: | -40℃~100℃ |
| Resistance Tolerance: | ±1%，±2%，±3%，±5% | Application: | Home Appliances, Computer, Printer, Battery Pack |
| Highlight: | Film Type ntc temperature sensor,ntc temperature sensor 0.6mm,3.6mm ntc temperature probe |
||

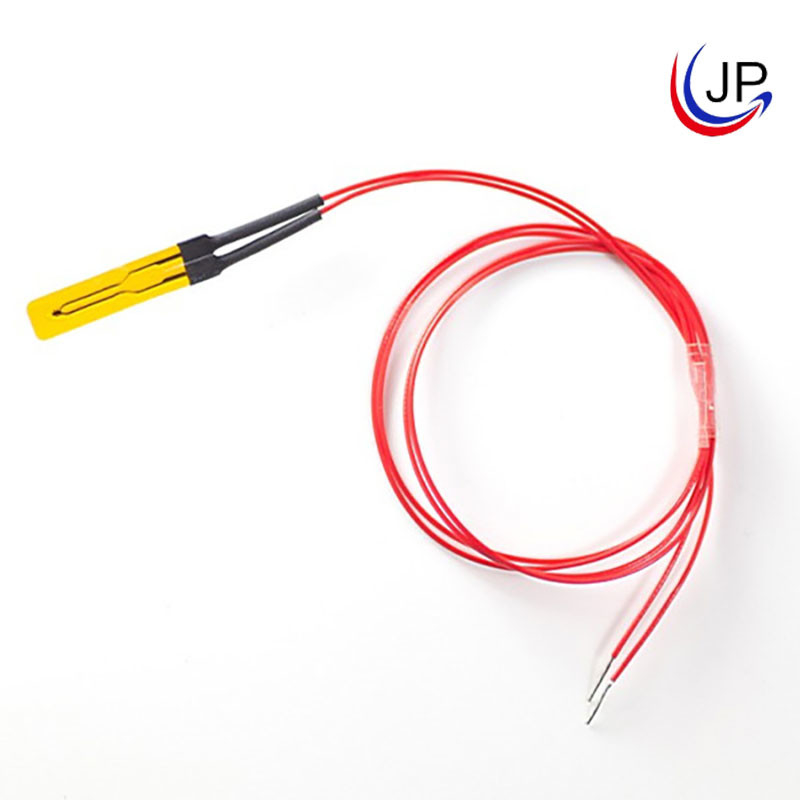

Film Type NTC Temperature Sensor 0.6mm For Printer Copy Machine
Product Description:

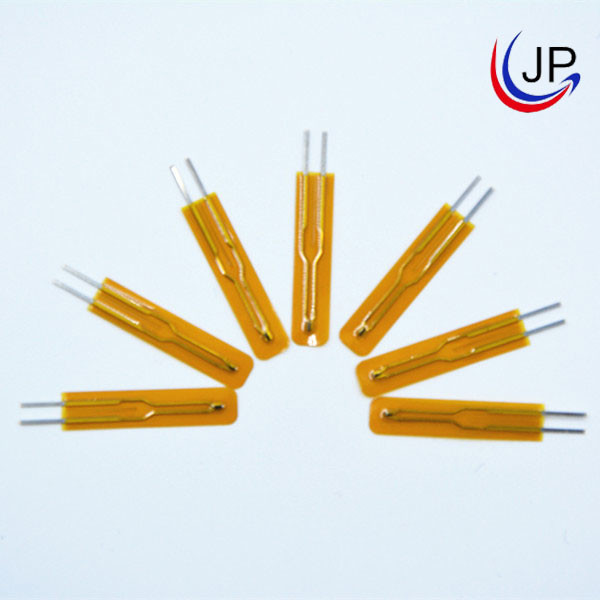

MF5A-6B Film type NTC thermistor can be equipped with an extra extension wire, of which the total length is Max 0.6mm, and the widths of the thin film are 4.5mm or 3.6mm optionally. The resistance parameters of this product are 10KΩ3435K and 10KΩ3977K.
Features:
Thin-film type
thin, fast response time
Operating temperature range: -40℃~100℃
This product is used widely in many fields.
Optional resistance tolerances are ±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, Battery pack
Electrical Specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
