| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 5KΩ, 10kΩ | R0℃: | 32.51kΩ±2% |
|---|---|---|---|
| B25 / 50: | 3950k ±1% | Application: | Refrigerator |
| Operation Temperature Range: | -40℃~80℃ | Wire: | UL2651 24AWG Wire |
| High Light: | jingpu 32.51k NTC Temperature Sensor,jingpu NTC Temperature Sensor ABS Probe,jingpu Refrigerators thermistor temperature sensor |
||
32.51k NTC Temperature Sensor ABS Probe For Refrigerators
Brief Introduction:
This product is an ABS probe NTC temperature sensor for refrigerator, of which the probe is an ABSΦ7*25mm shell widely used in the market, the wire is UL2651 24AWG wire, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0 ℃.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Accurate low-temperature control
R0℃=32.51kΩ±2%
B25/50=3950k ±1%
Application:
Refrigerator
Structure and Dimensions(mm):
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

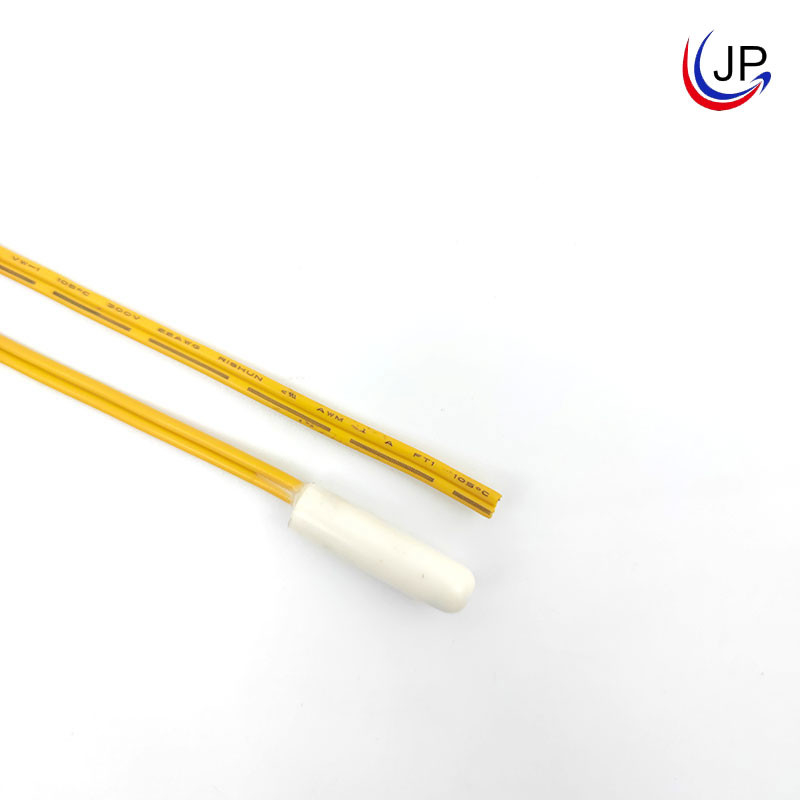

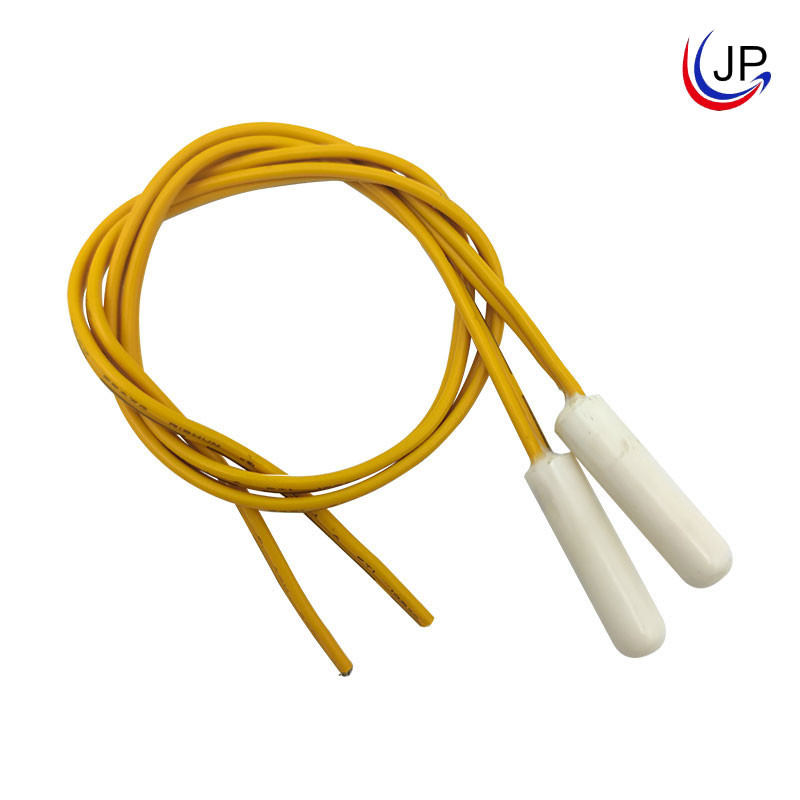

Product Images:
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment terms?
100% in advance, T/T. (Negotiable)
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
