| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | Chip |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 8KΩ | B Value: | 3988k |
|---|---|---|---|
| Tolerance: | ±1%，±2%，±3%，±5% | Feartures: | RoHS Standard, Soldering Resistant |
| Product Name: | NTC Thermal Chip | Brand: | JINGPU SENSOR |
| High Light: | 3988k ntc thermistor temperature sensor,8Kohm ntc thermistor temperature sensor,ISO9001 ntc temperature probe |
||
8Kohm 3988k NTC Thermistor Temperature Sensor ISO9001
Product Description:

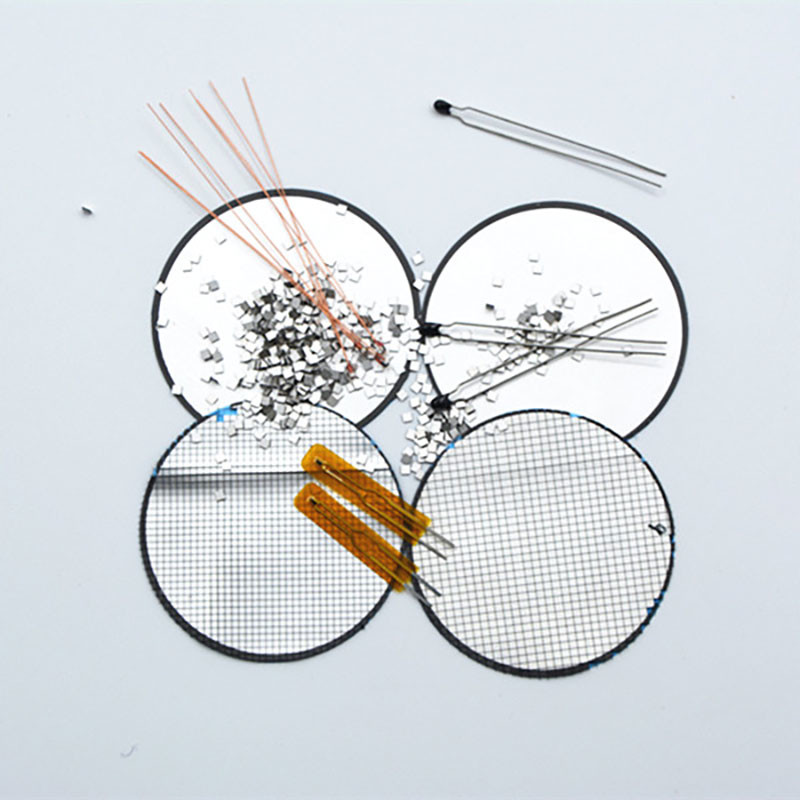

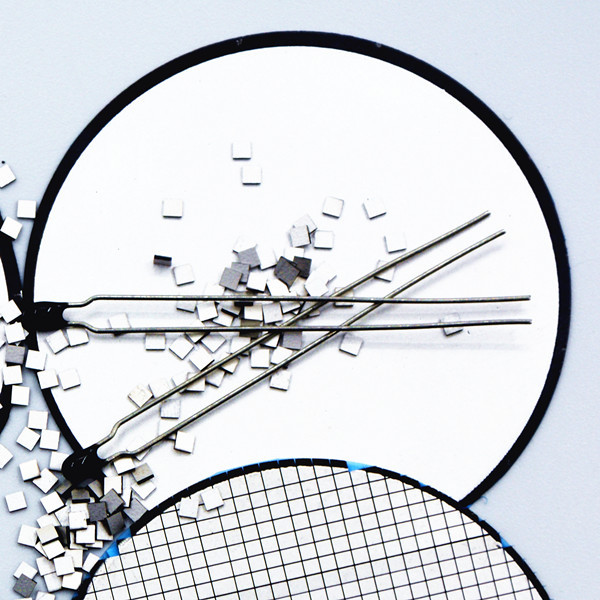

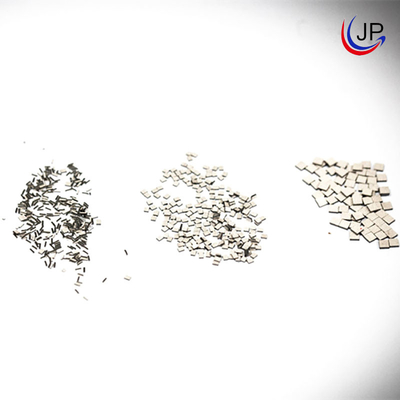

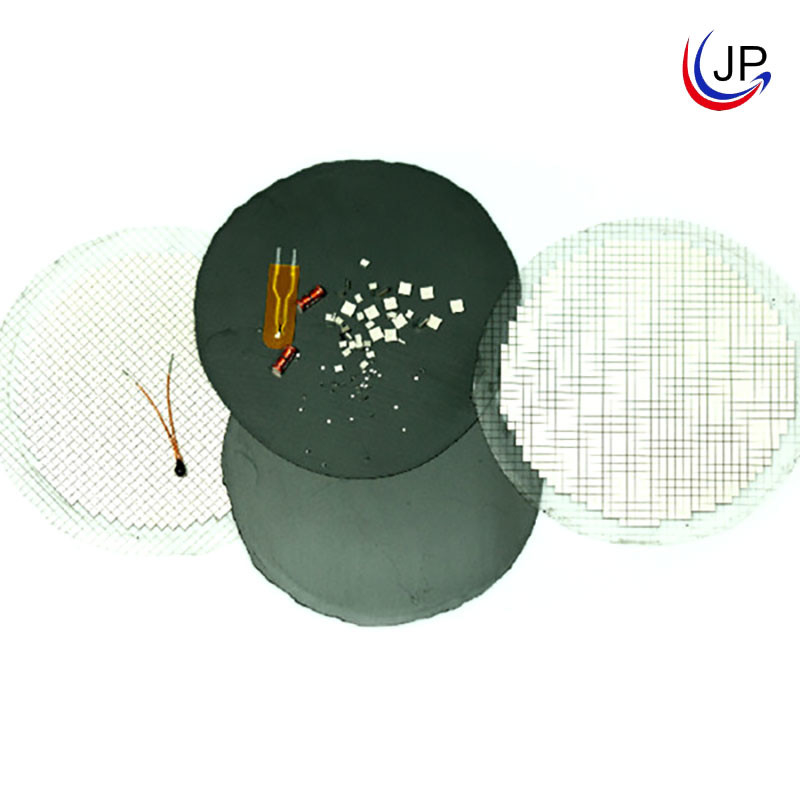

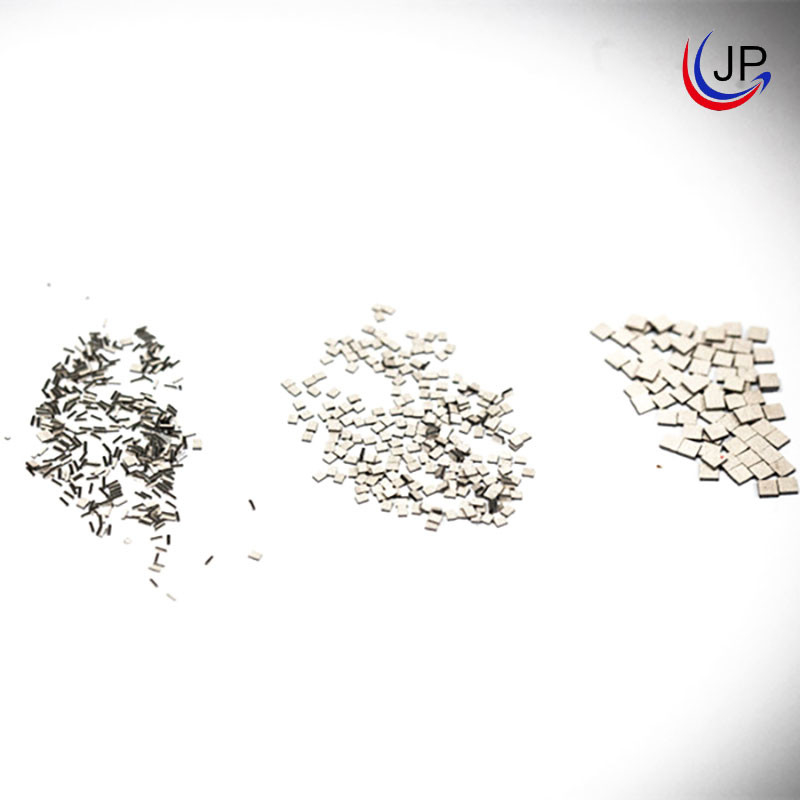

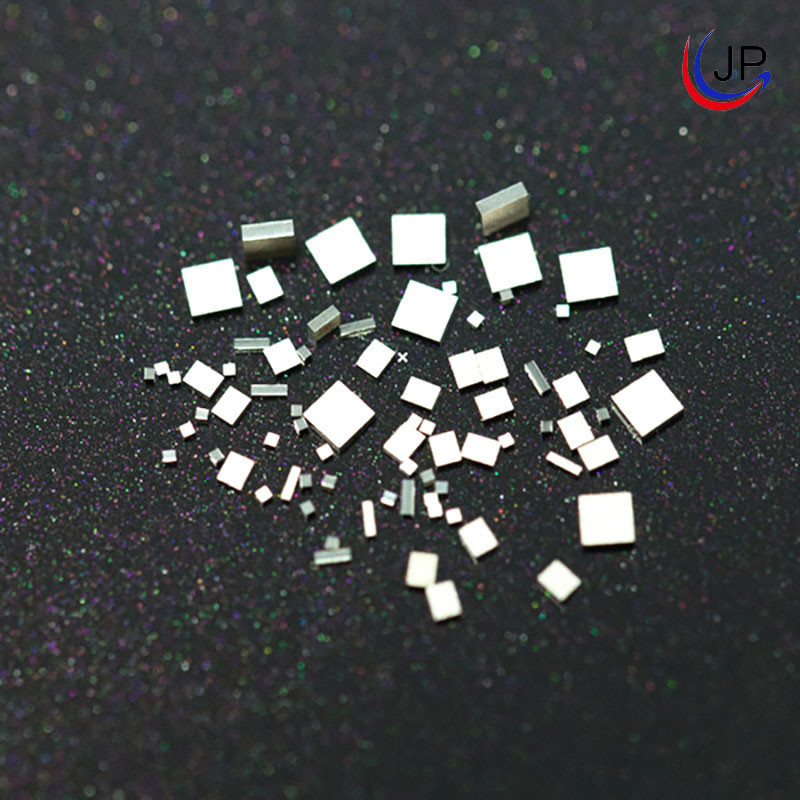

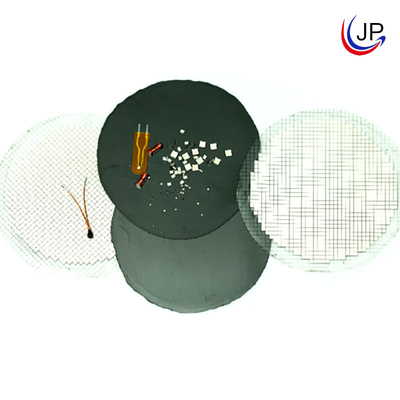

8KΩ 3988k NTC Thermal chip is used widely, and it is generally applied for the temperature measurement of automobile seat heating. Tolerance:±1%,±2%,±3%,±5%.
Features:
Comply with RoHS standard
Stable
Soldering resistant
easy assembly
Application:
It is applied to produce NTC thermistors and temperature sensors.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) BPmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
