| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25: | R25℃=47KΩ±1% | B Value: | B25/50=3950±1% |
|---|---|---|---|
| Encapsulation: | Glass Coated Encapsulation | Operation Temperature Range: | -40℃~250℃ |
| Feature: | High Temperature Resistance | Chip: | NTC Chip |
| Highlight: | Glass Bead Thermistors 3950K,3950K Glass Bead Thermistors,3950K 47Kohm ntc sensor probe |
||

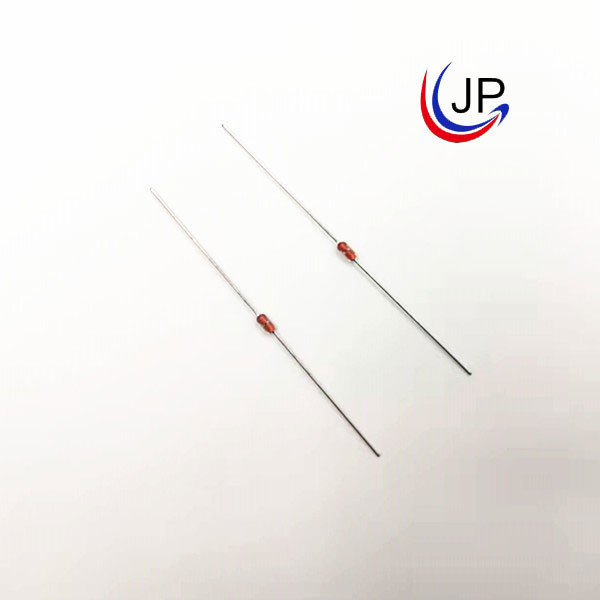

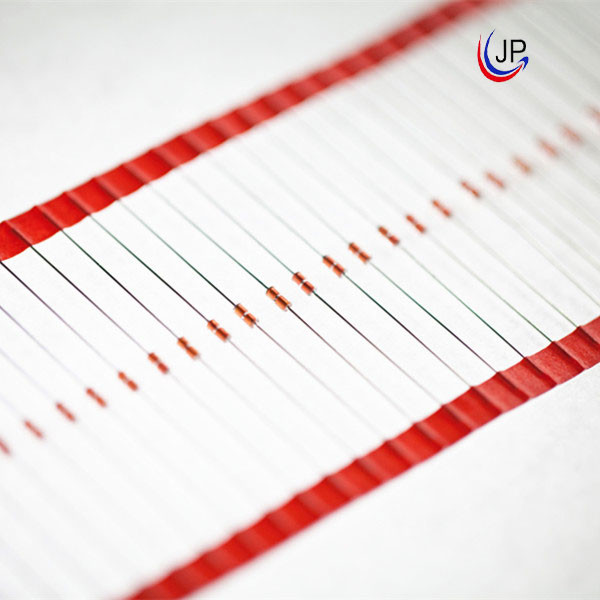

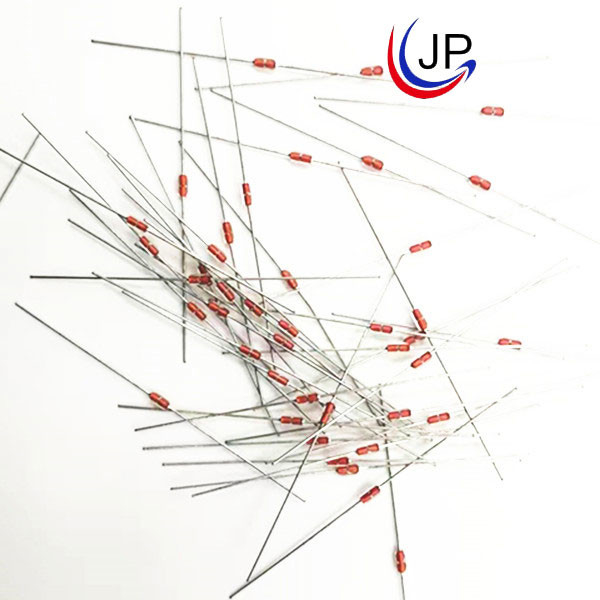

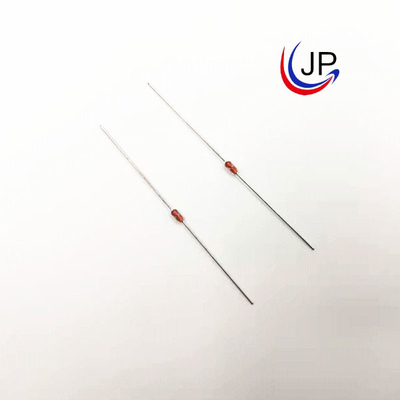

47Kohm 3950K Diode NTC Glass Bead Thermistor For Home Appliances
Brief Introduction:
This Diode NTC Glass Bead Thermistor is MF58 series glass bead temperature sensor, which is one of NTC thermistor sensors, and glass coated NTC thermistor consists of dumet wire and glass bead. Its important feature is high-temperature resistance. Glass coating NTC thermistor is widely used for electronics of vehicles, industrial devices, household appliances, etc.
Features:
Glass encapsulation
High temperature resistant
Operation temperature range: -40℃~250℃
R25=47KΩ±1%, B25/50=3950±1%
Application:
Home appliances
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B8202□3470A | 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | 60 |
| B8202□3830A | 2 | B25/85=3977 | |||||
| B8103□3470A | 5 | B25/50=3470 | |||||
| B8502□3950A | 5 | B25/85=3950 | |||||
| B8103□3435B | 10 | B25/85=3435 | |||||
| B8103□3470A | 10 | B25/50=3470 | |||||
| B8103□3580A | 10 | B25/50=3580 | |||||
| B8103□3630B | 10 | B25/50=3950 | |||||
| B8103□3950A | 10 | B25/50=3950 | |||||
| B8103□3977B | 10 | B25/50=3950 | |||||
| B8503□3950A | 50 | B25/50=3950 | |||||
| B8104□3950A | 100 | B25/50=3950 | |||||
| B8104□3990A | 100 | B25/50=3990 | |||||
| B8104□4132B | 100 | B25/85=4132 | |||||
| B8104□4200A | 100 | B25/50=4200 | |||||
| B8200R102□4537G | R200℃=1 | B100/200=4537 |
