| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |

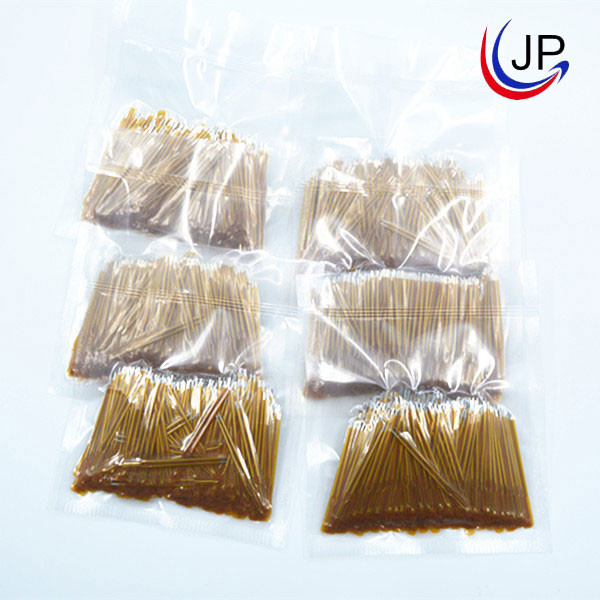

| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 100KΩ | B25/50 Value: | 3950k |
|---|---|---|---|
| Operating Temperature Range: | -40℃~100℃ | Optional Resistance Tolerances: | ±1%，±2%，±3%，±5% |
| Application: | Home Appliances, Computer, Printer, Battery Pack | Chip: | NTC Chip |
| Film: | Polyimide Film | Customization: | Available |
| High Light: | Polyimide Film Type NTC Thermistor,ISO9001 Thin Film NTC Thermistor,100k NTC Thermistor Temperature Sensor |
||
ISO9001 3950k Polyimide Film Type NTC Thermistor , 100k NTC Thermistor Temperature Sensor
Brief Introduction:

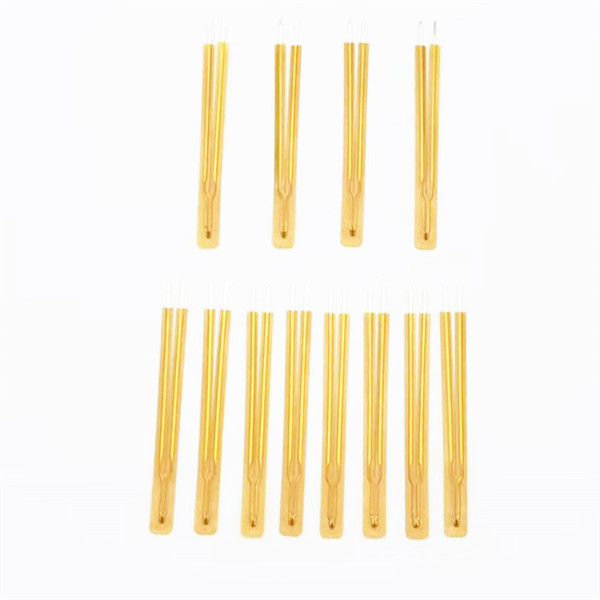

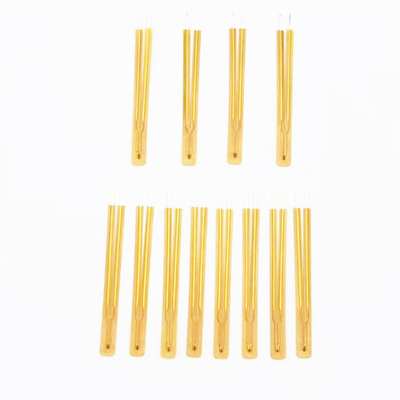

The film width of the 100KΩ 3950k Film type NTC thermistor is 4.5mm, the total length of the product is 25mm, the total thickness is Max 0.6mm.
Features:
Thin-film type
Thin, fast response time
Operating temperature range: -40℃~100℃
Optional resistance tolerances are ±1%,±2%,±3%, and ±5%.
Application:
Home appliances, computer, printer, Battery pack.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
