| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 10KΩ | Wire: | 28AWG(1/0.3) Bunch Wire |
|---|---|---|---|
| Probe: | HDPE | Encapsulation: | Epoxy Resin |
| Chip: | NTC Thermal Chip | Customization: | Available |
| High Light: | 3976K ntc thermistors for temperature measurement,ntc thermistors for temperature measurement 10Kohm,HDPE ntc temp sensor |
||

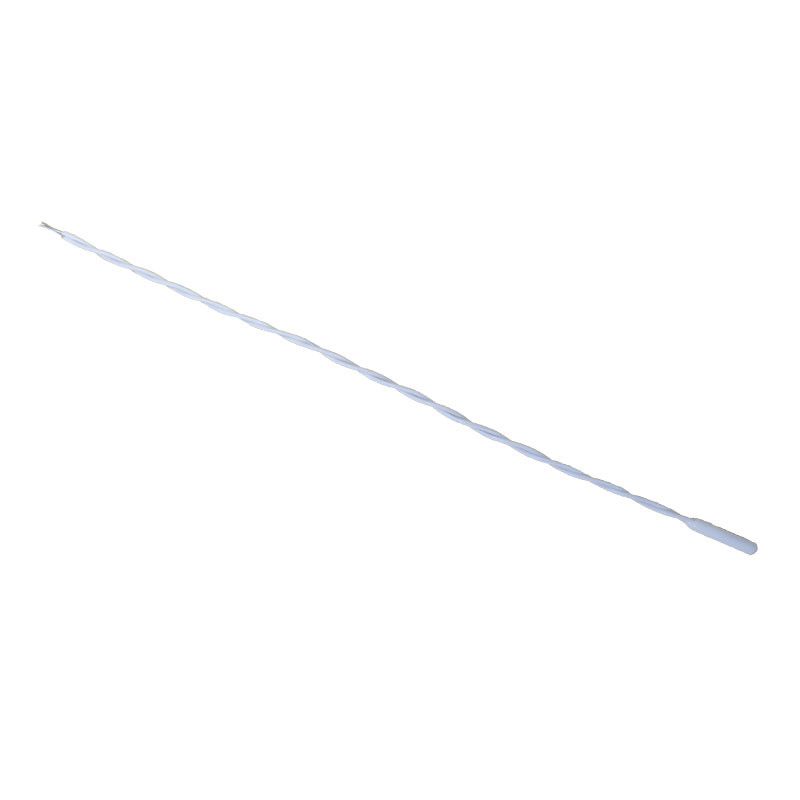

3976K NTC Thermistors For Temperature Measurement 10Kohm
Brief Introduction:
MF5A-7 series 10KΩ HDPE Plastic housing type NTC thermistor consists of NTC Chip, Probe, Epoxy resin, 28AWG(1/0.3) bunch wire, its probe is HDPE. The accuracy of this product is high, and it is mainly used in the production of medical temperature sensor.
Features:
Comply with RoHS standard
(25℃ ~ 45℃) ±0.1℃
R25=10KΩ
B25/85=3976k
Application:
Human body temperature measurement
Medical electric equipment
Skin / coelom / body temperature measurement
Adult / pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, health monitor

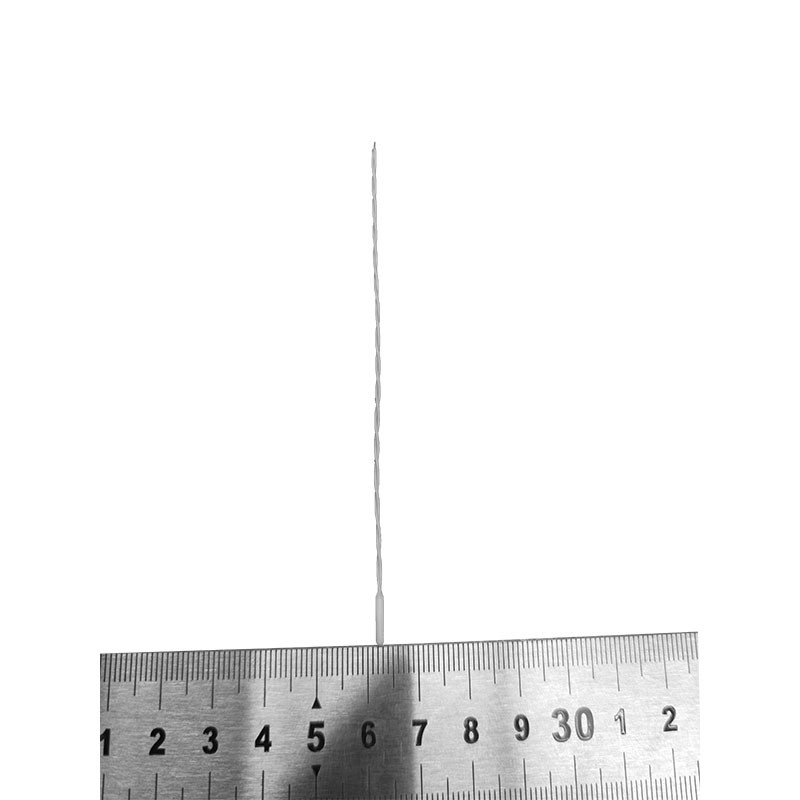

Structure and Dimensions:
