ISO9001 Epoxy Resin Temperature NTC Sensor For Powered Cables In Server Room

Basic Information
Place of Origin: Anhui, China
Brand Name: JINGPU SENSOR
Certification: ISO9001, RoHS
Model Number: MFP
Minimum Order Quantity: 500 Pieces
Price: To be negotiated
Packaging Details: Carton Packaging
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, Western Union
Detail Information
Probe: DBN5.5-14 Copper Tinned Probe Wire: XLPE UL4413 26AWG Wire
Operating Temperature Range: -40℃~125℃ Chip: NTC Chip
Encapsulation: Epoxy Resin Customization: Available
Highlight:

ISO9001 temperature ntc sensor jingpu

,

jingpu ISO9001 temperature ntc sensor

,

jingpu Server Room thermistor type temperature sensor


Product Description

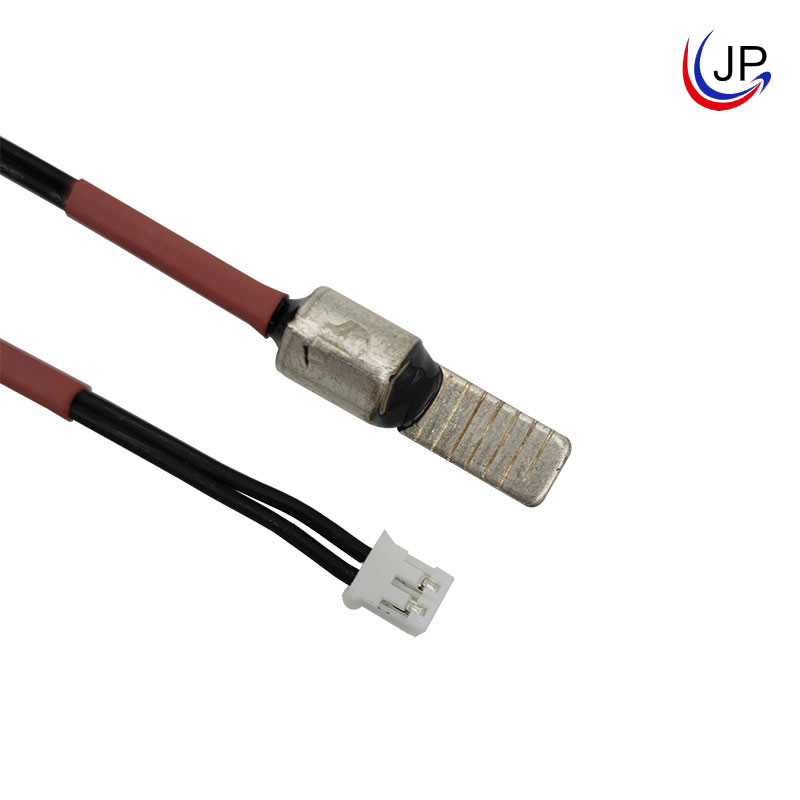

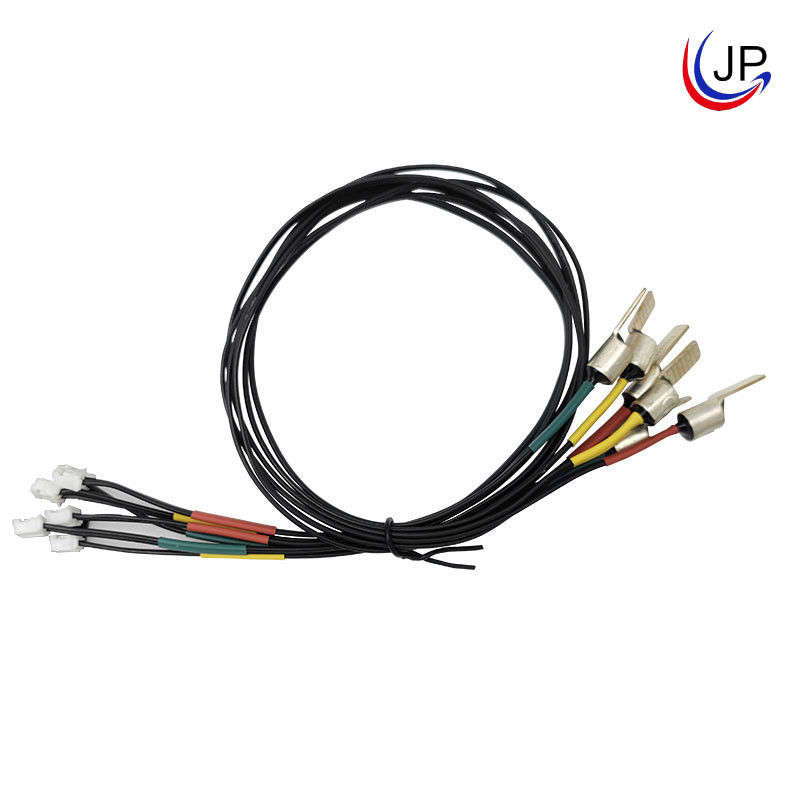

ISO9001 Epoxy Resin Temperature NTC Sensor For Powered Cables In Server Room



Product Description:

DBN5.5-14 copper tinned probe, XLPE UL4413 26AWG wire, which measures the heating temperature of the powered line.




Features:

Comply with RoHS standard

Interchangeability

XLPE insulated lead wires series Operating temperature range: -40℃~125℃




Application:

Monitor the temperature of powered lines in server room.




Structure and Dimensions:

ISO9001 Epoxy Resin Temperature NTC Sensor For Powered Cables In Server Room 0




Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -40℃~125℃ 200~1000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
