| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | R25℃=2Kohm | Operating Temperature Range: | -40℃~125℃ |
|---|---|---|---|
| B25/85: | 3550K | Wire: | UL1322 22AWG |
| Shipping: | Sea Freight, Express, Air Freight | Resistance Tolerance: | ±2% |
| Beta Value Tolerance: | ±2% | OEM/ODM: | Available |
| High Light: | High Accuracy NTC Temperature Sensor,NTC Temperature Sensor 2Kohm,NTC Temperature Sensor 3550K |
||
High Accuracy NTC Temperature Sensor 2Kohm 3550K 2%
Product Description:
High Accuracy NTC Temperature Sensor 2Kohm 3550K 2% is an MFP series product of JP Sensor, Of which the resistance value is 2KΩ±2% at 25℃, the Beta value is 2550k±2%, and the shell is PA66OD8.6 6*30.5, Its wire is UL1322 22AWG, and the total length of wire is 205mm.
Features:
R25℃=2Kohm
Resistance Tolerance=±2%
B(25/85℃)=3550K
Beta Value Tolerance=±2%
Cable: UL1322 22AWG
Technical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 |
Application:
Our NTC temperature sensors are applied in home appliances, Air conditioning, Water heaters, the Battery pack of vehicles, medical devices, etc.

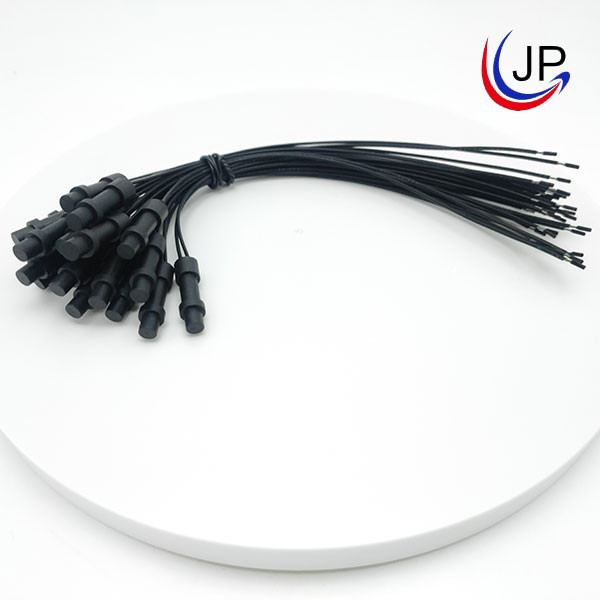

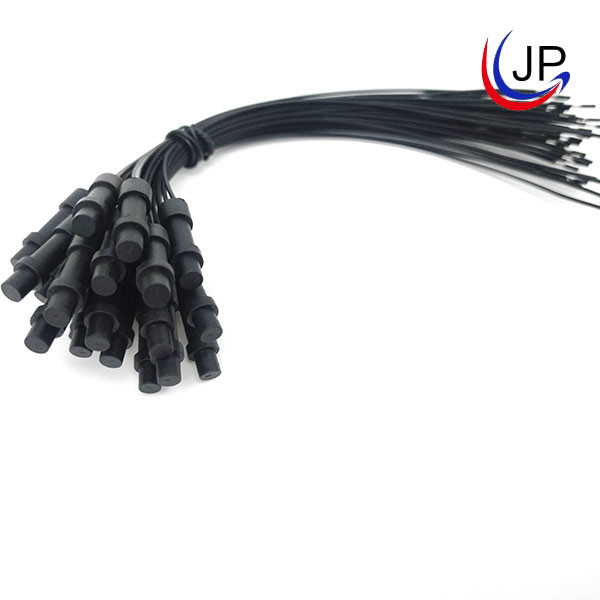

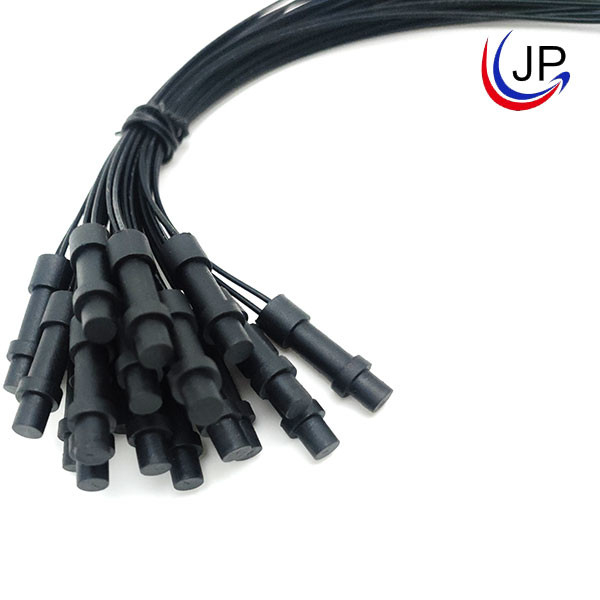

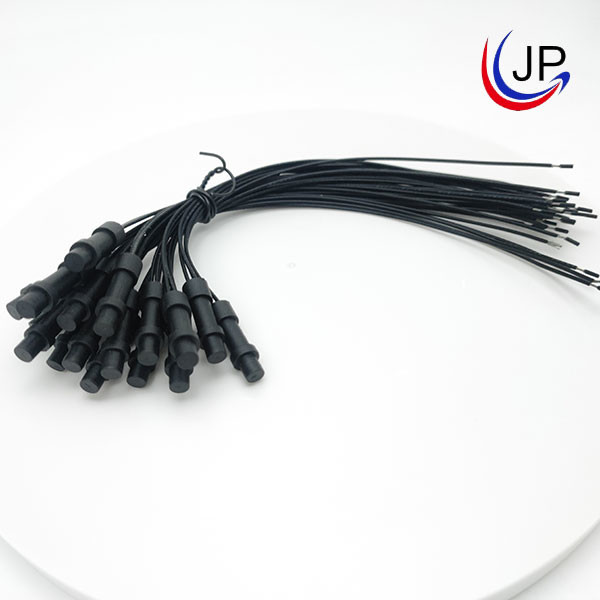

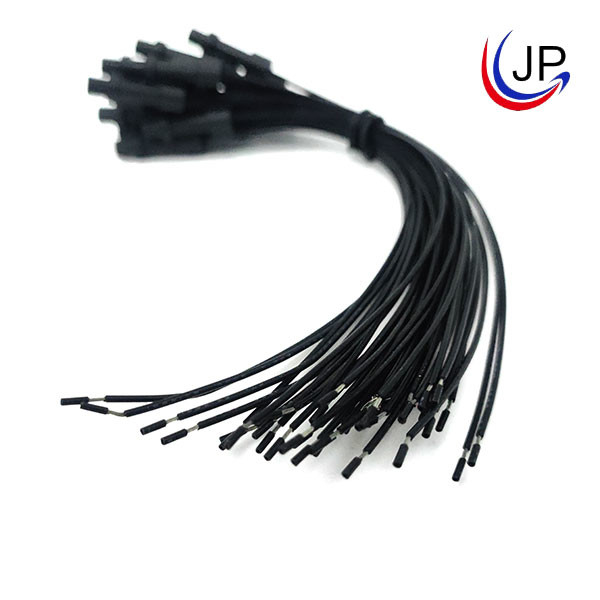

Product Images:
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment method?
T/T, L/C, Western Union.
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
