| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | DS180 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Colorful |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -55℃~125℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Ds18b20 Ntc Temperature Sensor,Digital Ntc Temperature Sensor,Grain Elevator Ntc Temperature Sensor |
||

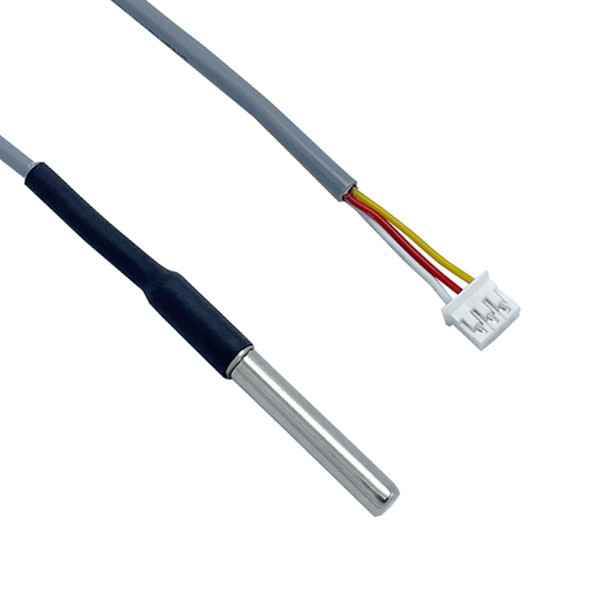

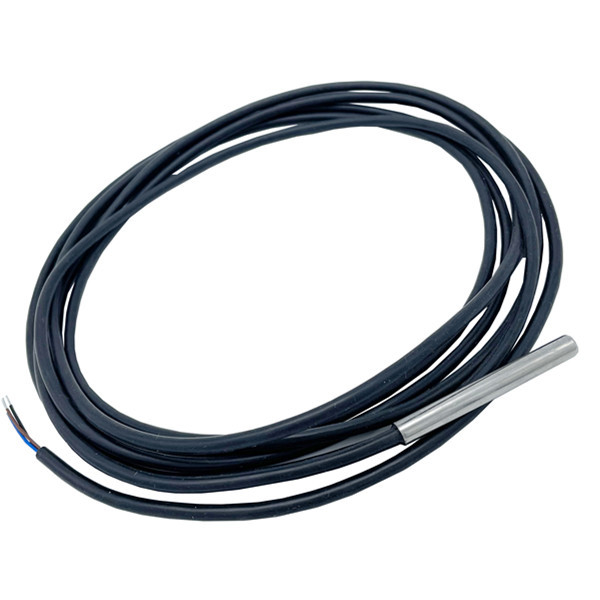

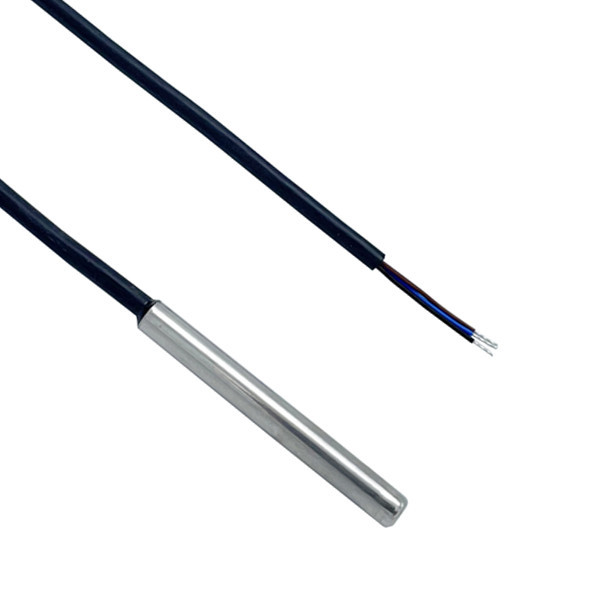

Ds18b20 Digital Ntc Temperature Sensor For Freezer And Grain Elevator
Brief Instruction:

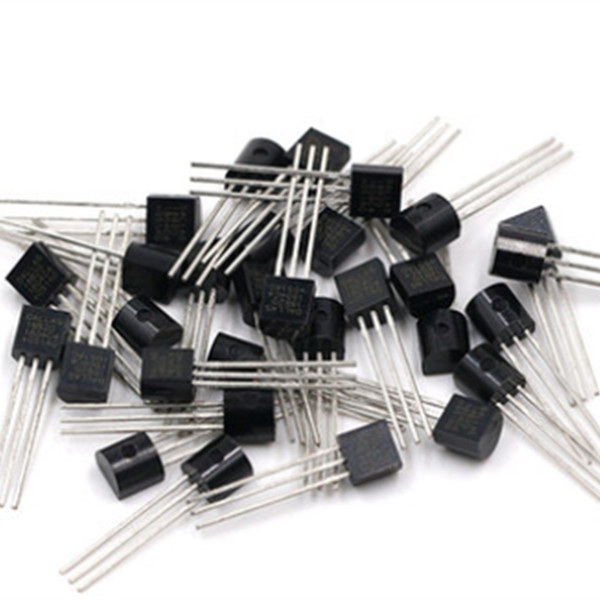

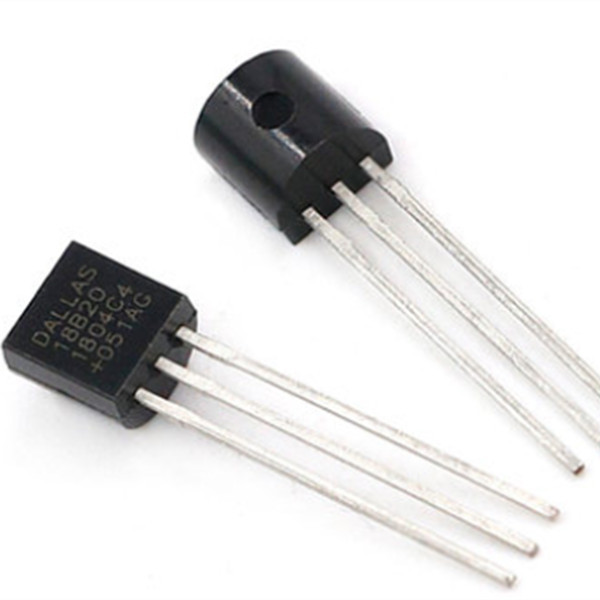

DS18B20 is one common digital temperature sensor. Its output is digital signal. Small volume, a strong anti-interference ability, fairly precise. Easily wired. The DS18B20 digital temperature sensor assembly can be more useful when you need to measure something far away, underwater or under the ground
Measurement temperature range: -55°C - +125°C (-67°F - +257°F)
Accuracy: ±1°C.
Power supply range:3.0V-5.5V/DC
Stainless steel tube size:Approx.6.0mm(Diameter)
The stainless steel tube inside be filled in the epoxy
Features:
Comply for ROHS standard
Digital signal output
Operating temperature range: -20℃~+80℃
Stainless steel tube Φ6*50mm
Application:
Freezer
Grain elevator
Storage tank
Telecommunications room
Cable trunking
HVAC systems
Cold chain logistics
Industrial systems
Thermostat controls system
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Component | DS18B20 | 1 | / |
| 2 | Probe | SUSφ6*50 | 1 | / |
| 3 | Tube | Double wall heat shrinkable sleeve | 1 | black |
| 4 | Wire | PVC 26AWG*3C(red/yellow/white)Round sheathed wire | 1 | Gray |
| 5 | Stripped | Tinned | 3 |
