| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | IP64 Temperature Sensor,Surface Mounting Temperature Sensor,HEV Bus Bars Temperature Sensor |
||
Brief Instruction:
Surface mounting temperature sensor be consist of the insulated wire (FEP cable & PVC cable,XLPE insulated wire), NTC chip and epoxy resin, ring lug M2/M4/M5/M6. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K. These surface mount temperature sensor be widely used for battery pack, solar inverter, YF, welding machine, control cabinet etc.
Features:
Comply for ROHS standard
Miniature designed
Interchangeability
Surface mount temperature measurement
PVC insulated lead wires series
Operating temperature range: -20℃~105℃
PTFE insulated lead wires series
Operating temperature range: -40℃~150℃
Sensing element electrically isolated from tag
Eyelets to fit M3, M4&M5 screw sizes
Range of wire lengths 1.97 in to 78.74in (50mm to 2000mm)
Application:
EV/HEV Bus Bars
Battery Covers
Power Distribution
Thermal Management
Heat Sinks
Panel Enclosures
Inverters
Welding machine
Control cabinet
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

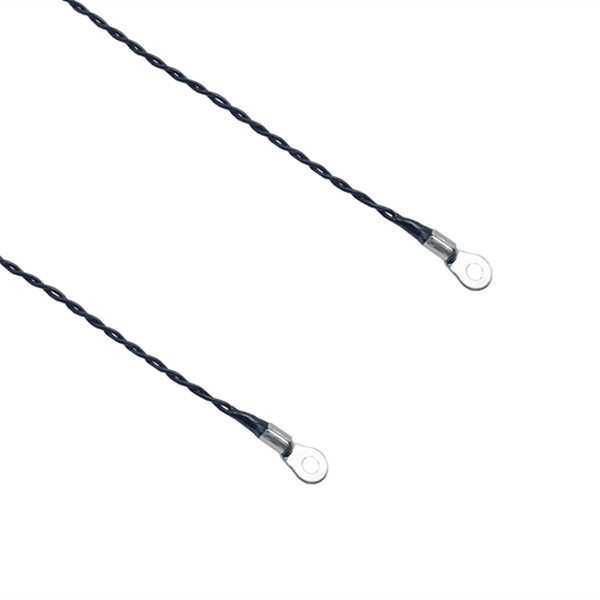

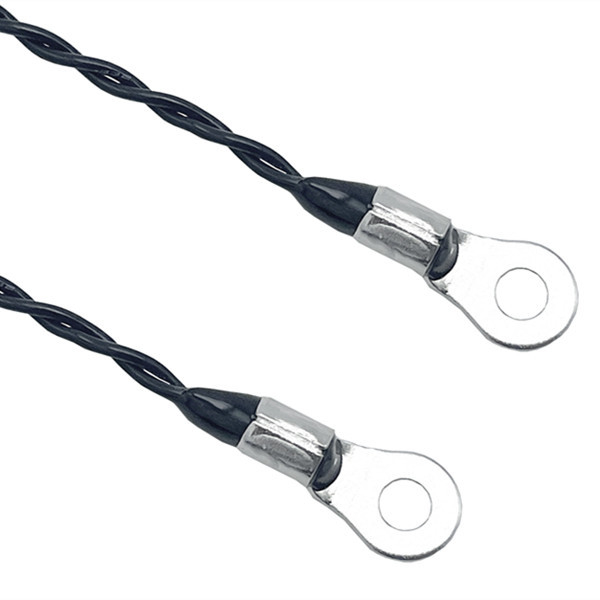

Product picture:
Six advantages - make the work more accurate, make the quality better
Original manufacturing, affordable
Fine craft, exquisite technology
Strict quality control, precision assurance
Rapid response, rapid delivery
Support customization, non-standard customization
Enterprise shop, can be invoiced
