| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | RoHS Standard Temperature Sensor,Electrocar Motors Temperature Sensor,Epoxy And Metal Temperature Sensor |
||

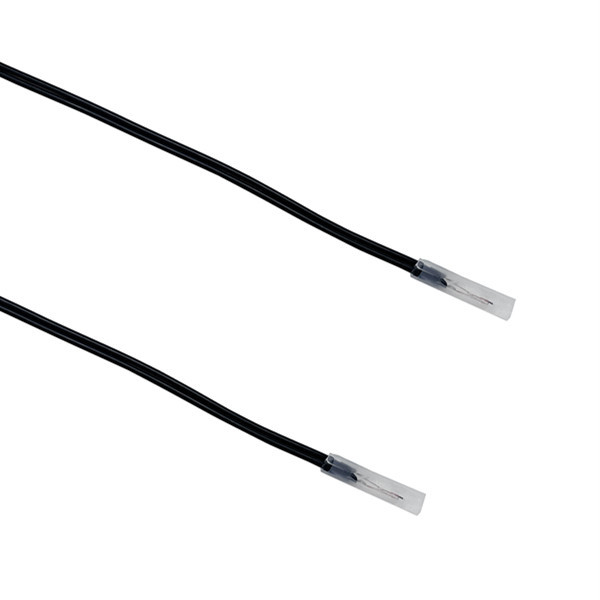

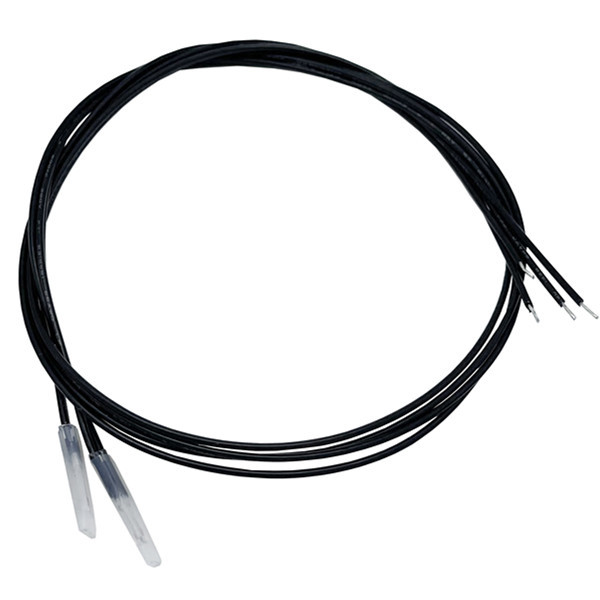

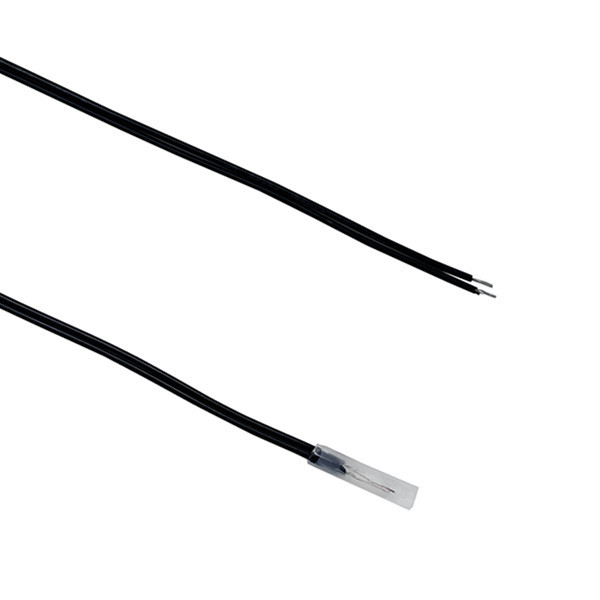

Brief Instruction:
This product uses UL1332 24AWG high temperature wire welding single end glass package, the probe uses high winter flon tube packaging forming (rectangular), the parameter is R100=3.3K ω, B0/100=3970K, 1500V 1mA 1S.
Features:
Comply for RoHS standard
The product is resistant to oil and high temperature
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ,B0/100=3970K
Application:
HV (hybrid electric vehicle) /EV (electric vehicle) motor motor
Structure and Dimensions:
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5尺寸(mm) | 3.5 | 15 | 2.0 | 2.3 | 500 | 3 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | tube forming | 1 | / |
| 3 | Wire | UL1332 24AWG PTFE wire 200℃ | 2 | Black |
| 4 | Stripping | tinned | 2 |
Note: Line length, resistance parameters, steel pipe length, temperature resistance requirements can be customized according to customer requirements, specific customized content can consult customer service or call consultation
Our company specializes in the production and packaging of various DS18B20/PT1000/NTC temperature sensors, temperature probes, temperature probes, etc., good waterproof performance, stable quality, long-term mass production.
