| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Rohs NTC Temperature Sensor,Rohs Standard Ntc Chip Thermistor,AC 1500V NTC Temperature Sensor |
||
Brief Instruction:

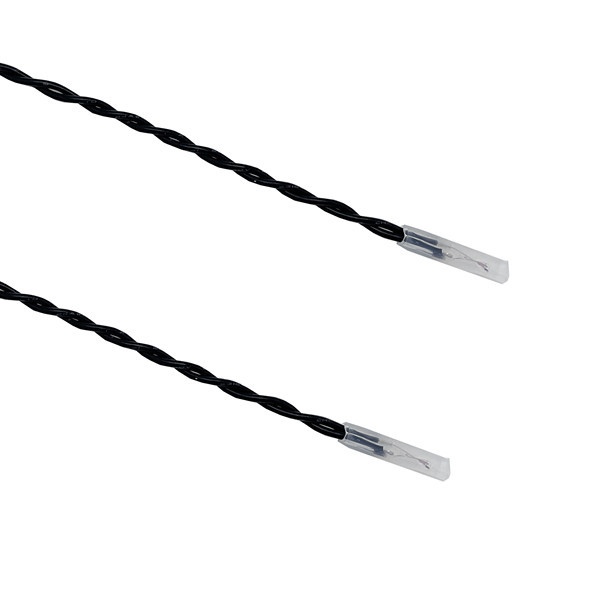

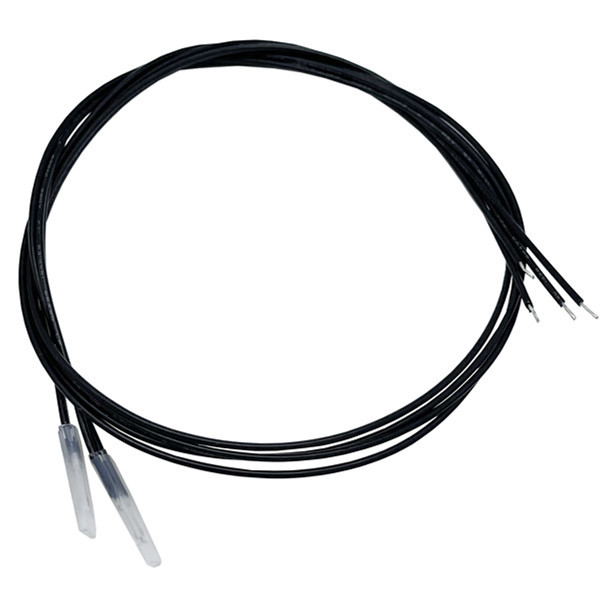

This product uses UL1332 24AWG PTFE high temperature wire welding single end glass package, the probe uses high temperature PTFE tube packaging forming (rectangular), the parameter is R100=3.3K ω, B0/100=3970K, 1500V 1mA 1S.
Features:
Comply for ROHS standard
The product is resistant to oil and high temperature
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ,B0/100=3970K
Application:
HV (hybrid electric vehicle) /EV (electric vehicle) motor
Structure and Dimensions:
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5(mm) | 3.5 | 15 | 2.0 | 2.3 | 500 | 3 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | PTFE tube forming | 1 | / |
| 3 | Wire | UL1332 24AWG PTFE wire 200℃ | 2 | Black |
| 4 | Stripping | tinned | 2 |
