| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Generator Temperature Measurement Ntc Sensor,Generator Ntc Temperature Sensor,Custom Ntc Temperature Sensor |
||
Brief Instruction:

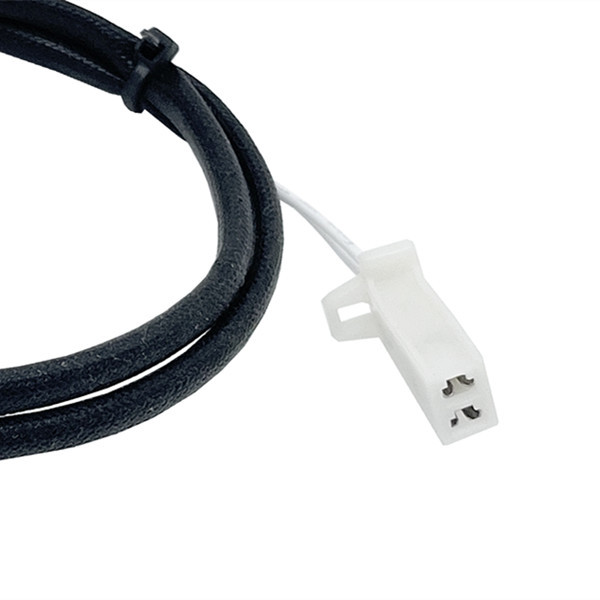

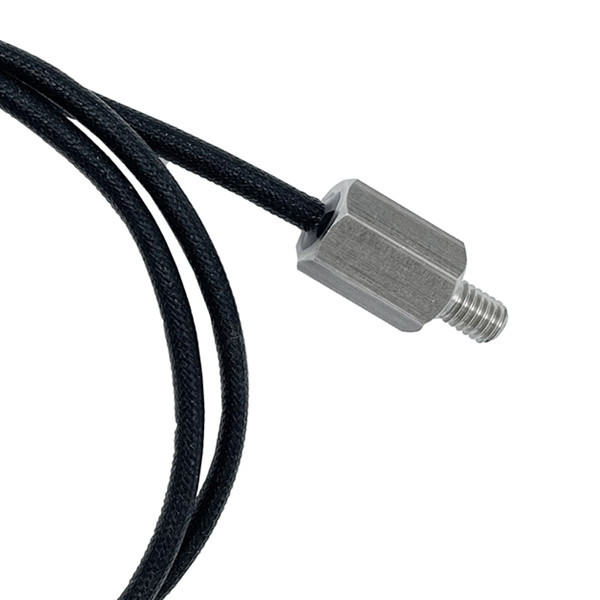

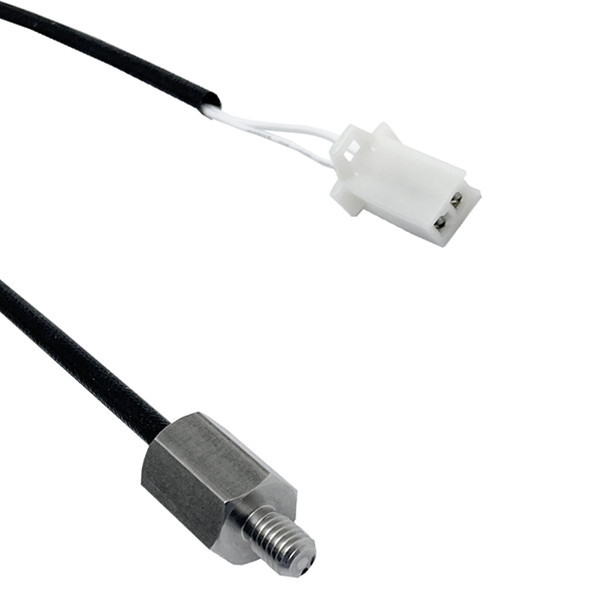

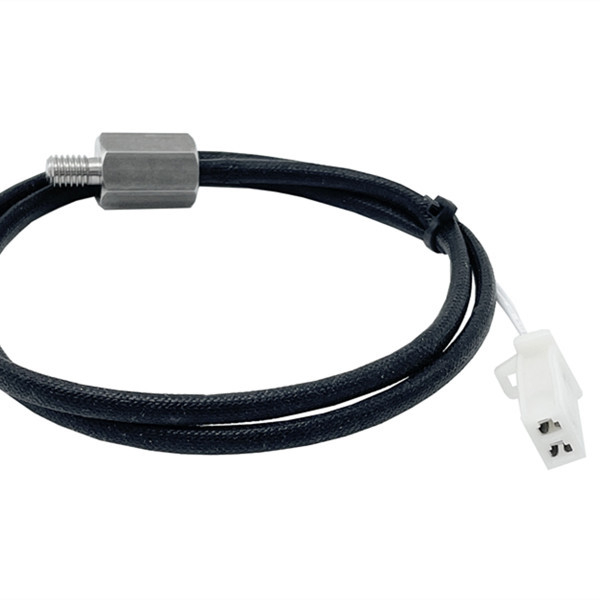

This product is used to measure the temperature of the generator, feedback to the temperature control system, the product probe is stainless steel probe, wire is PTFE UL1332 24AWG high temperature wire 200℃, wire coat black fiberglass sleeve Φ3.0, R25=30KΩ±1%,B25/50=3950k±1%.
Features:
Comply for RoHS standard
Operating temperature range: -40℃~150℃
Stainless steel probe
R25=30KΩ±1%,B25/50=3950k±1%
Accurate measurement and high reliability
Application:
Generator temperature measurement
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | -- |
| 2 | Shell | SUS M6*26-K-M5*13 | 1 | / |
| 3 | Encapsulation | Epoxy Resin | / | Black |
| 4 | Tube | Φ3.0 | 1 | Black |
| 5 | Cable | UL1332 24AWG 200℃ | 2 | White |
| 6 | Connector | DJ7021A-2.8-21 | 1 | White |
Precautions and storage methods
1, in the measurement of resistance value, to ensure that the temperature fluctuation of the test environment is 0.02℃ soil, the accuracy of the instrument is ±2%, if not up to the above test conditions, please use standard resistance in a relatively closed environment for comparison test.
2, in the design, please fully consider the product structure on the sensor temperature impact.
3. during storage and transportation, the height of each stack shall not exceed 4 boxes of products.
4, in the process of transportation to avoid rain, snow direct or indirect drench and mechanical damage.
