| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Stainless Steel Probe Temperature Sensor,Industrial Control NTC Temperature Sensor,RoHS Standard NTC Temperature Sensor |
||
Brief Instruction:

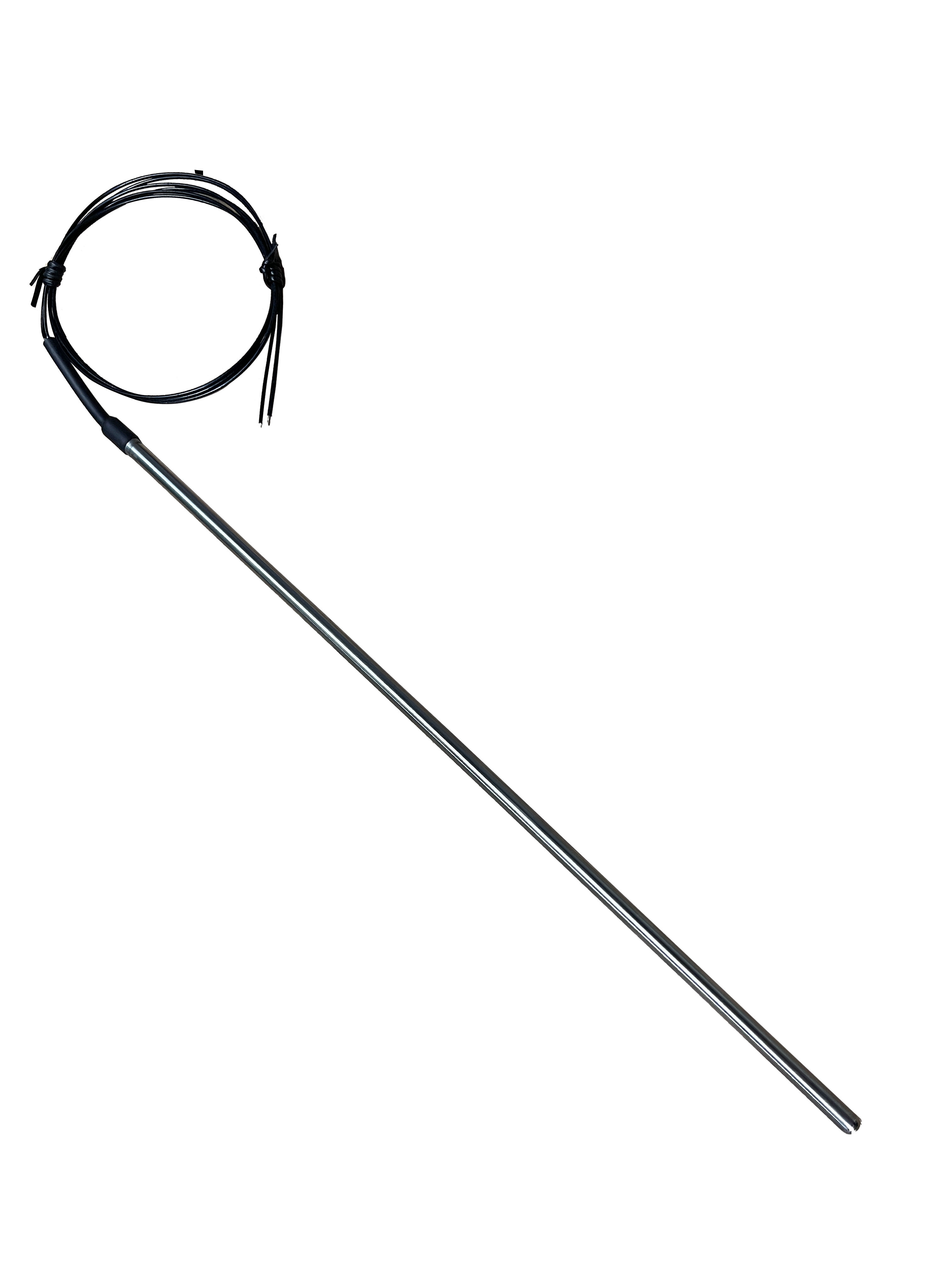

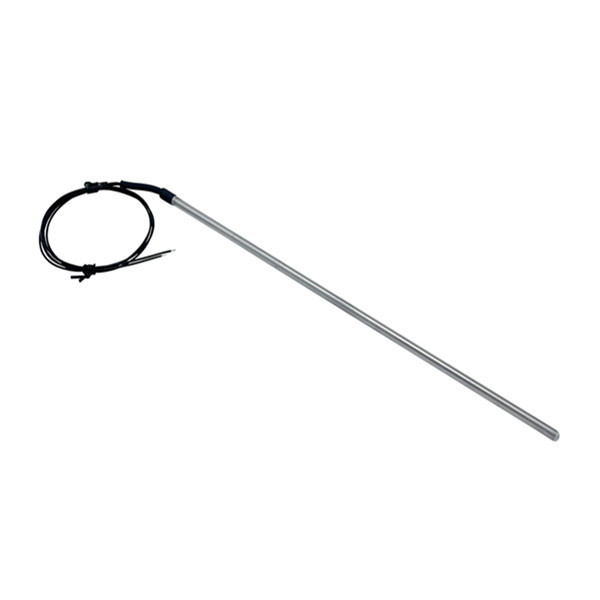

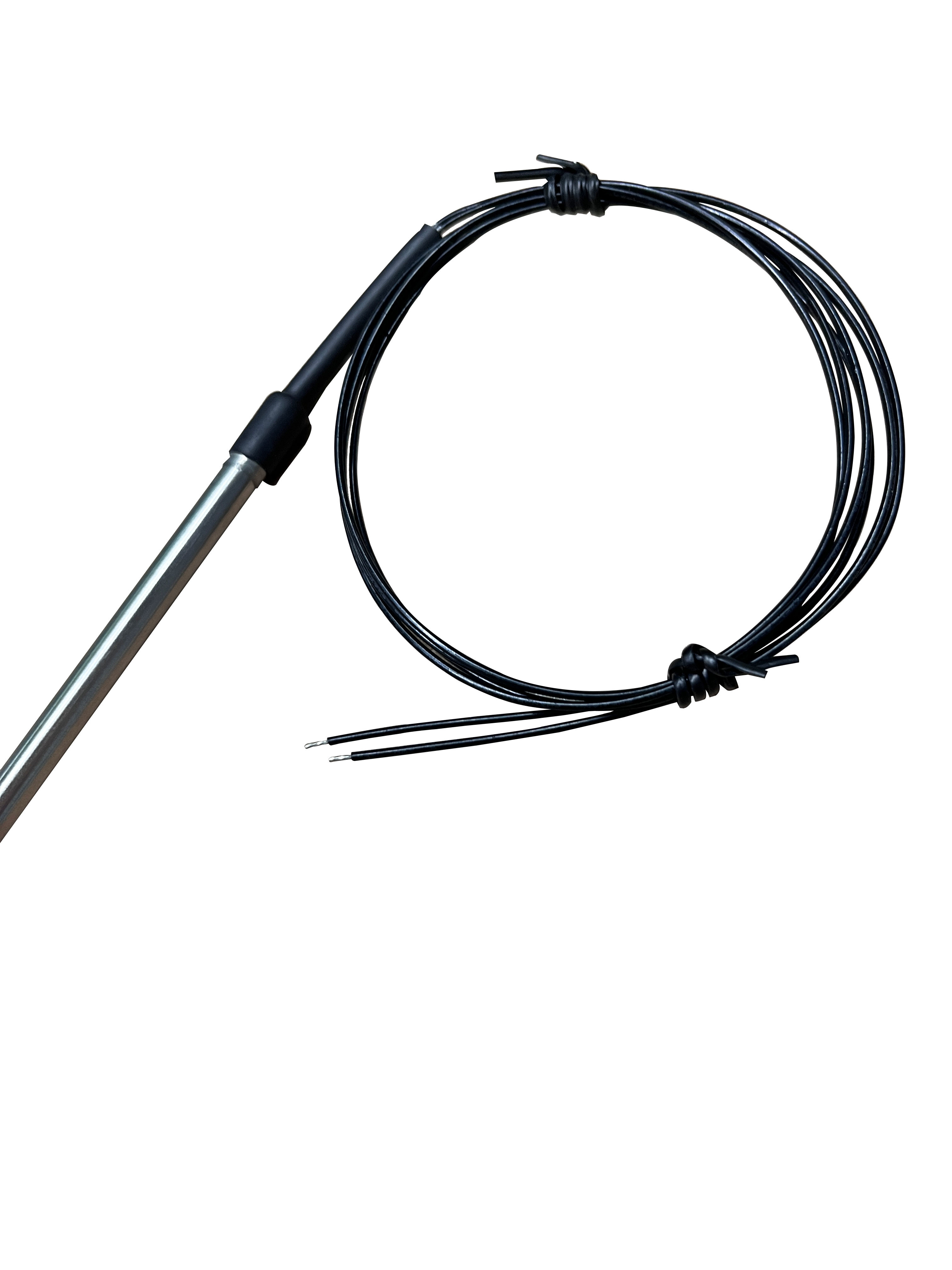

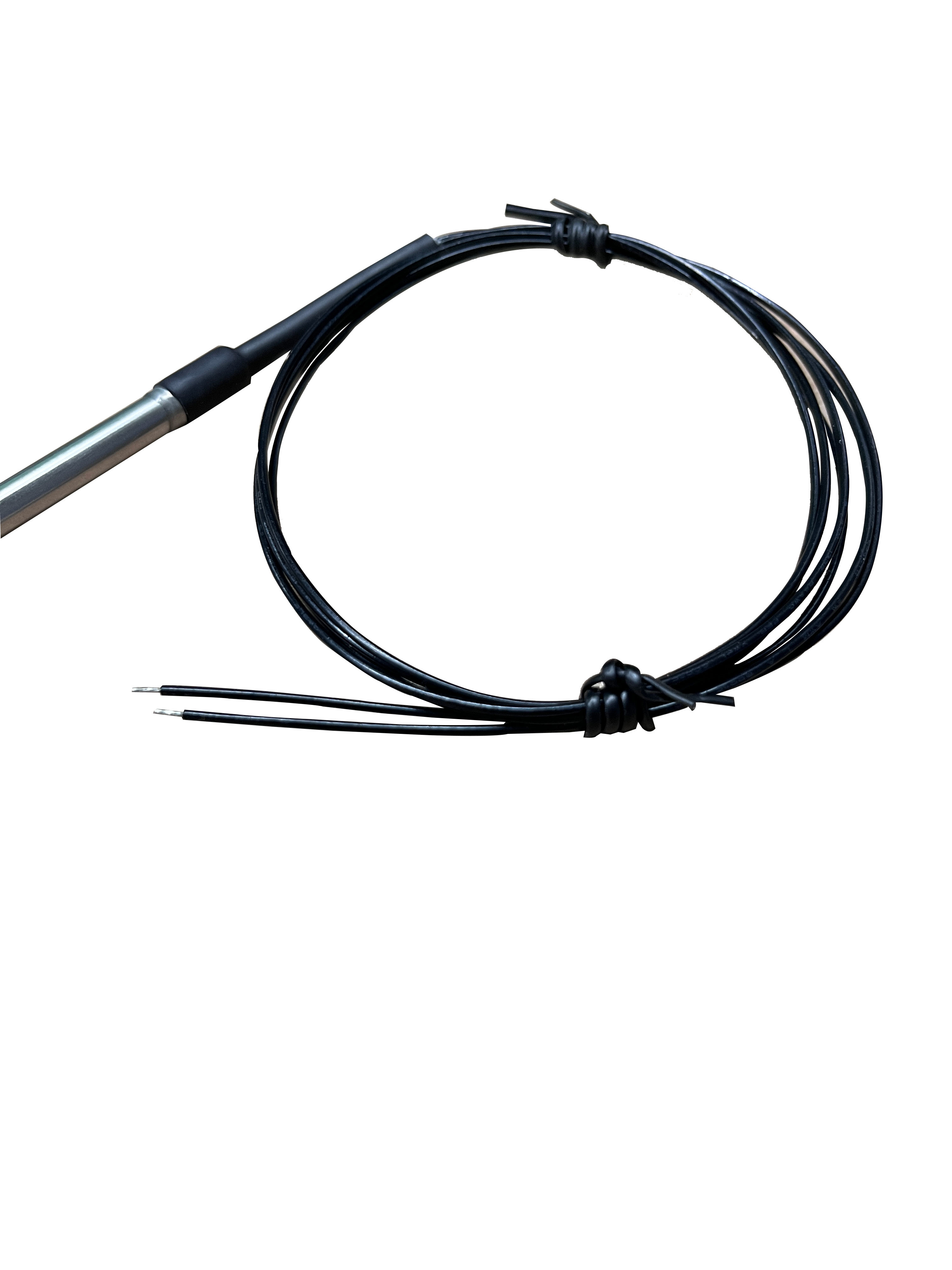

It consists of lead wires (PVC insulated wire, FEP insulated wire, XLPE insulated wire), NTC resistor, cylindrical housing ( stainless steel tube, copper tube and plastic housing) and connector. R25=10KΩ±1%,B25/50=3950k±1%(The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K).
Features:
Comply for RoHS standard
PVC insulated lead wires series
Operating temperature range: -20℃~105℃
FEP insulated lead wires series
Operating temperature range: -40℃~150℃
SUSφ5*200mm
Application:
Industrial intelligent controller
Industrial control
Structure and Dimensions:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
custom
Have professional industrial control equipment, tailored for every customer
process
Fine processing technology, products show clear texture, durable! Non - standard specifications can be customized
The material
Most products are made of 304 stainless steel, with high density, waterproof, high temperature resistance, corrosion resistance, durable and other characteristics
