| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Threaded Probe Temperature Sensor,Home Appliance Ntc Temperature Sensor,Automobile Ntc Temperature Sensor |
||

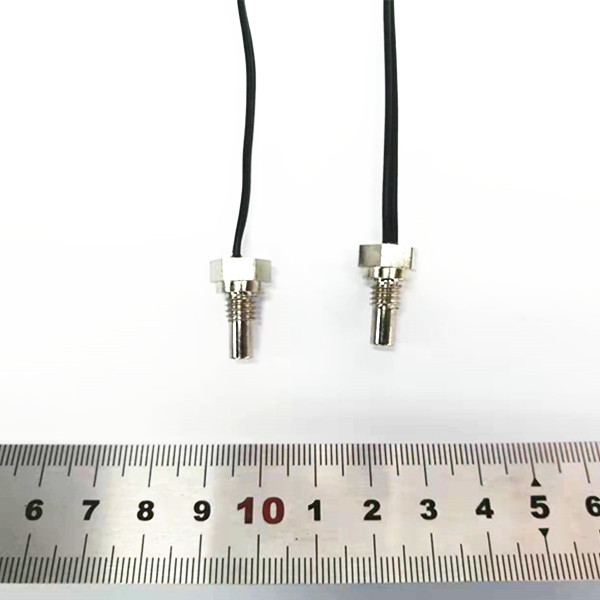

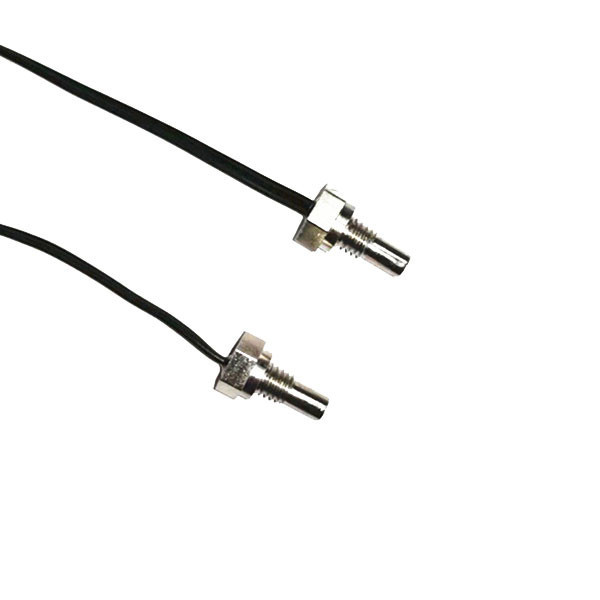

Threaded Probe Ntc Temperature Sensor For Home Appliance And Automobile
Brief Instruction (Product Description):
It is consist of the insulated wire (PTFE wire,PVC wire,XLPE insulated wire), NTC chip and epoxy resin,Copper plated M6 threaded probe. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply for ROHS standard
insulated lead wires series Operating temperature range: -40℃~125℃
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Easy to install and manipulate as the sealing can be done according to environment
Application:
Household appliances,commercial unit,automobile,etc.
Also widely used: air conditioner, water heater, refrigerator, incubator, heater, Radiator, soybean milk machine, coffee machine, hot kettle, precision electronics, sports equipment, mobile phone, 3D printer, copier, fax machine, thermometer, communication, medical equipment, oil temperature measurement, oil module, evaporator, lithium battery, seat, engine cooling system, thermal protection, circuit board, burner, machine appliances, heating control system, power supply protection, etc.
Structure and Dimensions:(unit:mm)
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
Electrical Specification: |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 | |
| 1.5 | B25/50=3850 | ||||||
| 1.5 | B25/50=3935 | ||||||
| 2 | B25/85=3550 | ||||||
| 2 | B25/85=3935 | ||||||
| 2.08 | B25/85=3580 | ||||||
| 2.2 | B25/50=3935 | ||||||
| 3 | B25/50=3950 | ||||||
| 5 | B25/50=3470 | ||||||
| 5 | B25/50=3950 | ||||||
| 8 | B25/100=3988 | ||||||
| 10 | B25/85=3435 | ||||||
| 10 | B25/50=3470 | ||||||
| 10 | B25/50=3935 | ||||||
| 10 | B25/50=3950 | ||||||
| 20 | B25/50=3950 | ||||||
| 47 | B25/50=3950 | ||||||
| 50 | B25/50=3950 | ||||||
| 50 | B25/50=4200 | ||||||
| 100 | B25/50=4200 | ||||||
| 200 | B25/50=4200 | ||||||
| 500 | B25/50=4450 | ||||||
| 1000 | B25/85=4600 |
