| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | 24AWG/1C OD3.1 Shielded Round Sheath Wire |
| High Light: | Custom Resistance NTC Temperature Sensor,Boiler NTC Temperature Sensor,ISO NTC Temperature Sensor |
||

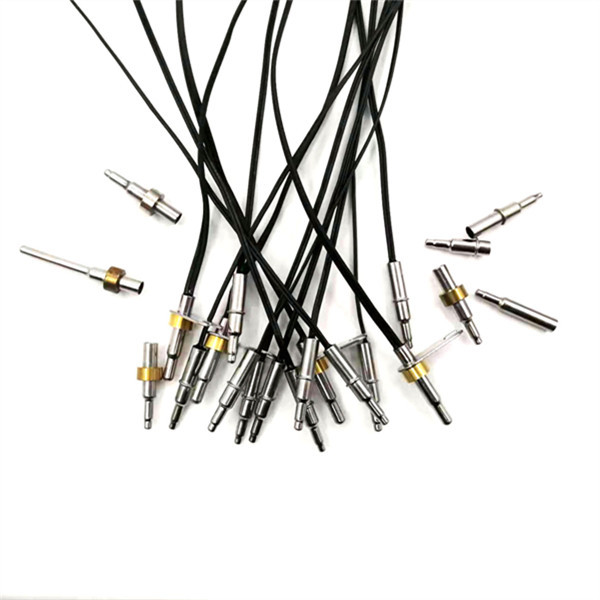

Quick Response Temperature Sensors For Boiler And Small Household Appliances
Brief Instruction (Product Description):
This product is generally used in electric kettles and other small household appliances. The probe is stainless steel and the wire is UL4413 26AWG XLPE 150℃ irradiated line. The resistance parameter is generally 50KΩ,B25/50=3950K (also can be customized according to customer requirements) use epoxy resin packaging, wire tail can be equipped with the corresponding connector according to customer requirements(PH-2Y).
Features:
Quick response
Comply for RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stainless steel probe
Application:
Electric kettles, water heaters and other small household appliances

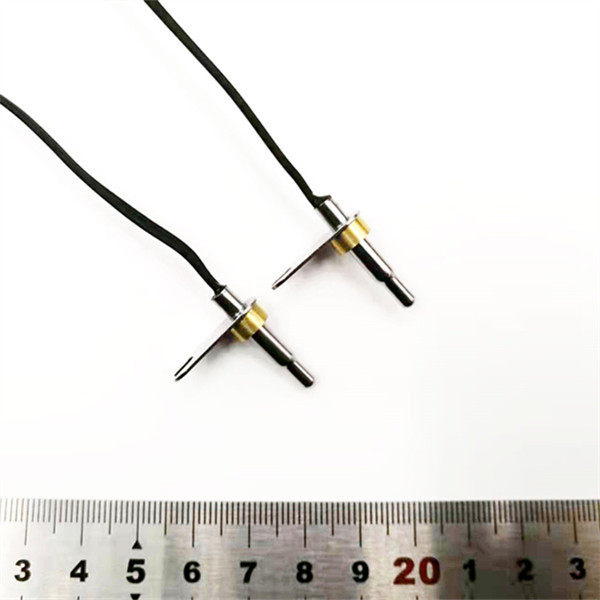

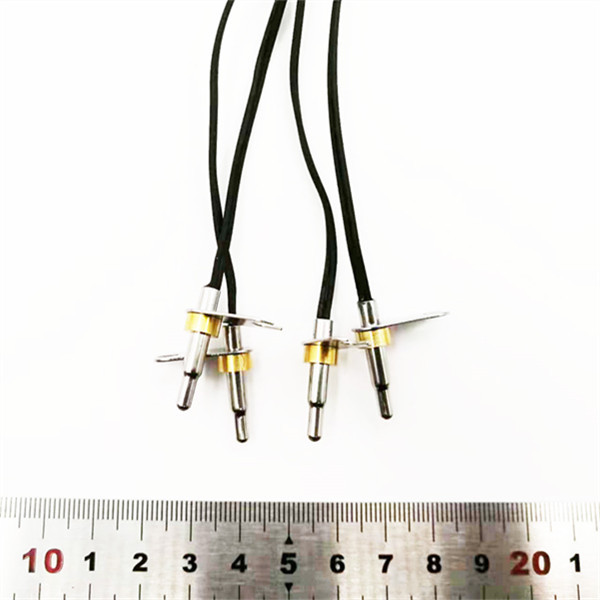

Structure and Dimensions:(unit:mm)
Special electrical appliance, quality assurance
Exquisite workmanship, brand trust, exquisite products
Hefei Jingpu Sensor Technology Co., LTD. NTC components, meet various engineering requirements and specifications
