| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Yellow |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Battery Ntc Thermistor Temperature Sensor,Home Appliances Ntc Temp Sensor,Ceramics Ntc Thermistor Temperature Sensor |
||
Film Type Ntc Thermistor Temp Sensor For Battery And Home Appliances 4.5mm 50mm
Brief Instruction:
MF5A-6 10k film type ntc thermistor, the film width of the other size is 4.5mm, the total length is 50mm, and the total thickness of the product is Max 0.6mm. The resistance parameters of this size are as follows10KΩ3435K,10KΩ3977K.
Features:
MF5A-6 Series of products for the same direction lead film packaging type
Insulation film packaging, fast thermal sensing speed, high sensitivity
Good stability, high reliability
Good insulation
High resistance value precision
Small size, light weight, strong structure, easy to automate installation
Operating temperature range: -40℃~100℃
The width of the membrane is 4.5mm and the length is 50mm
Alternative resistance values are available for precision:±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, battery pack
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 | ||||

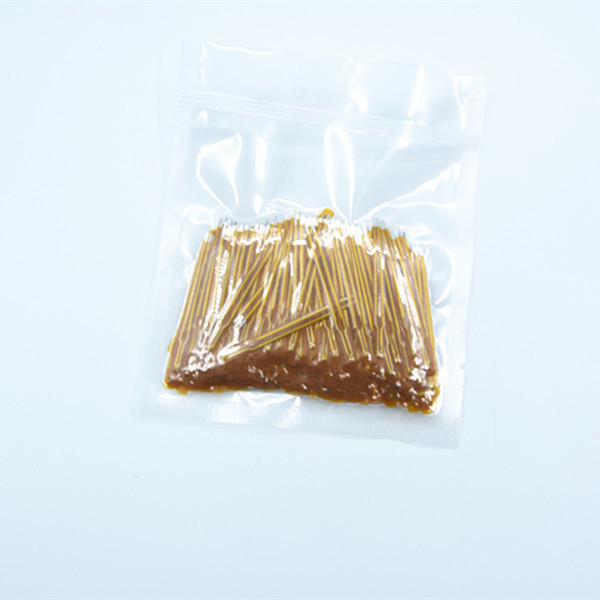

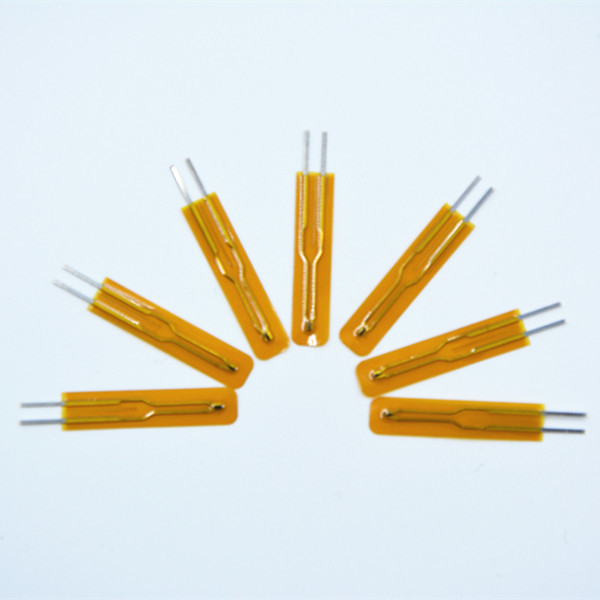

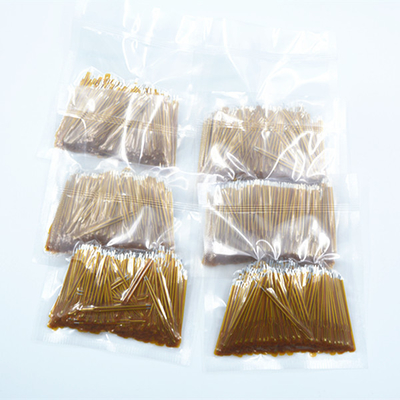

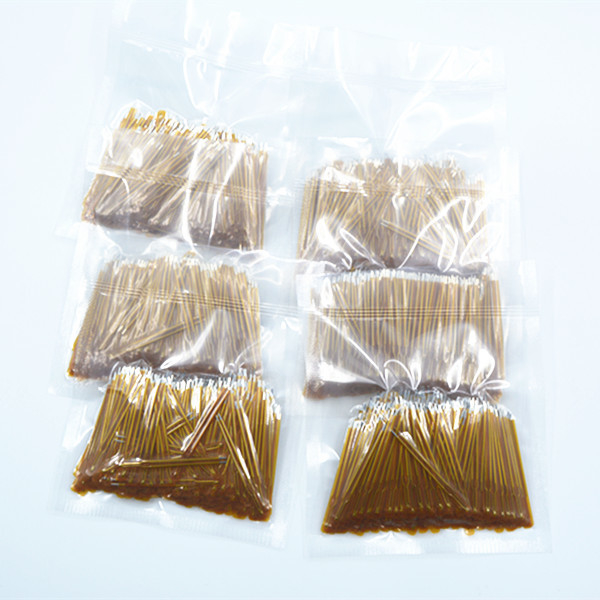

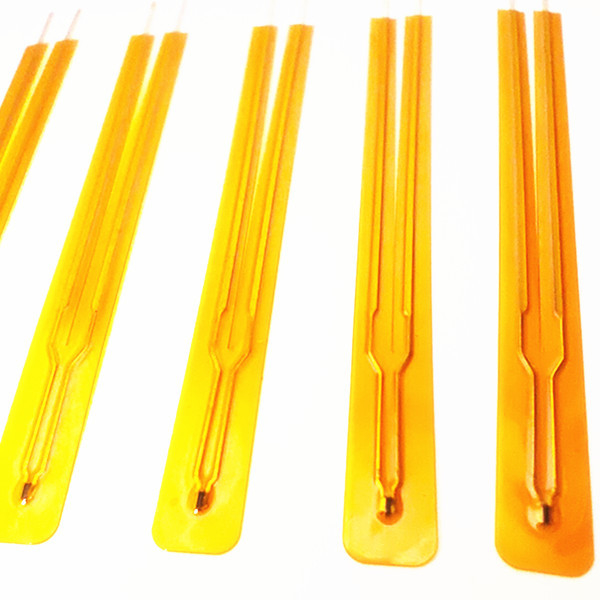

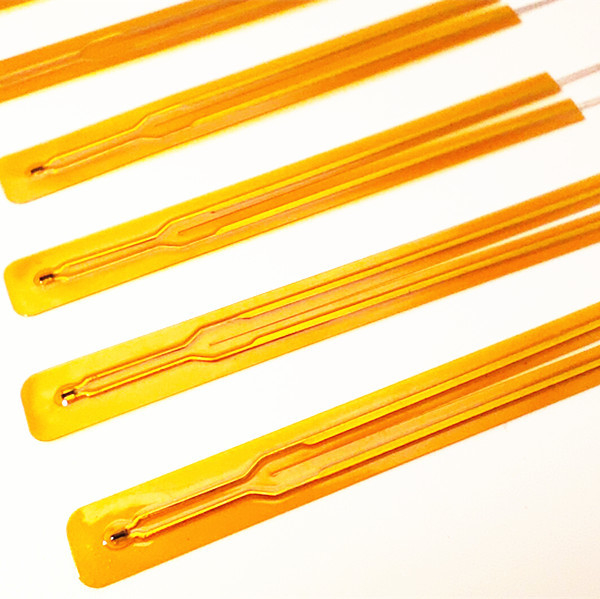

product picture/images:
Can be customized processing according to customer requirements
[Customization Notes]
1, resistance value of resistance (25°C resistance nominal resistance value requirements)
2. Precision of resistance (1%-5%)
3. B value coefficient of resistance
4, wire model length
5, wire tail specifications (tin immersion, with plug, special specifications)
6. Appearance size of head
7. Measure the ambient temperature
