| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Stainless Steel Ntc Temperature Sensor,Electrical Equipment NTC Temperature Sensor,PVC Wire NTC Temperature Sensor |
||

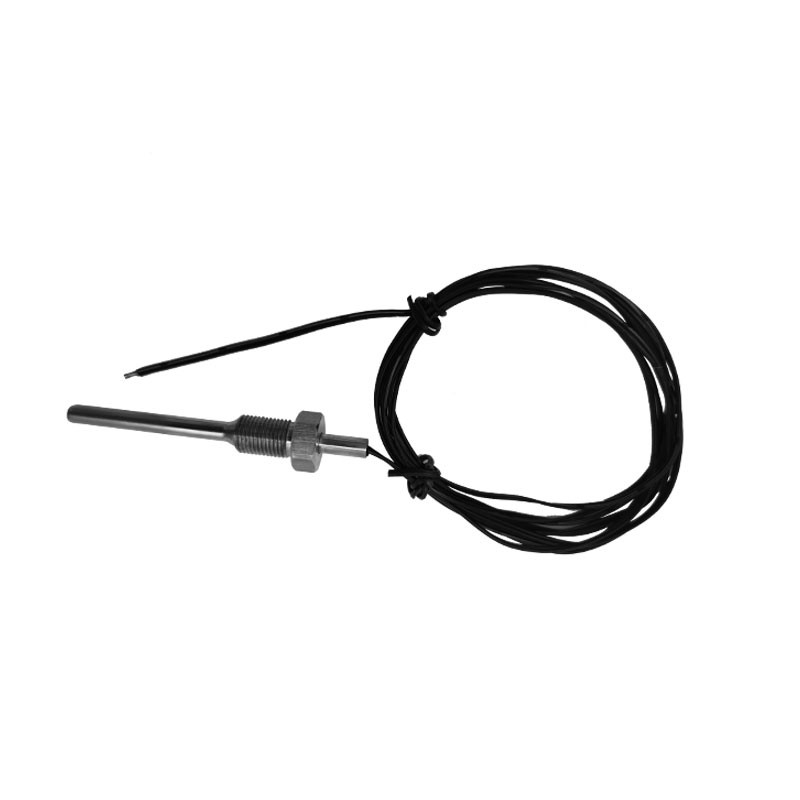

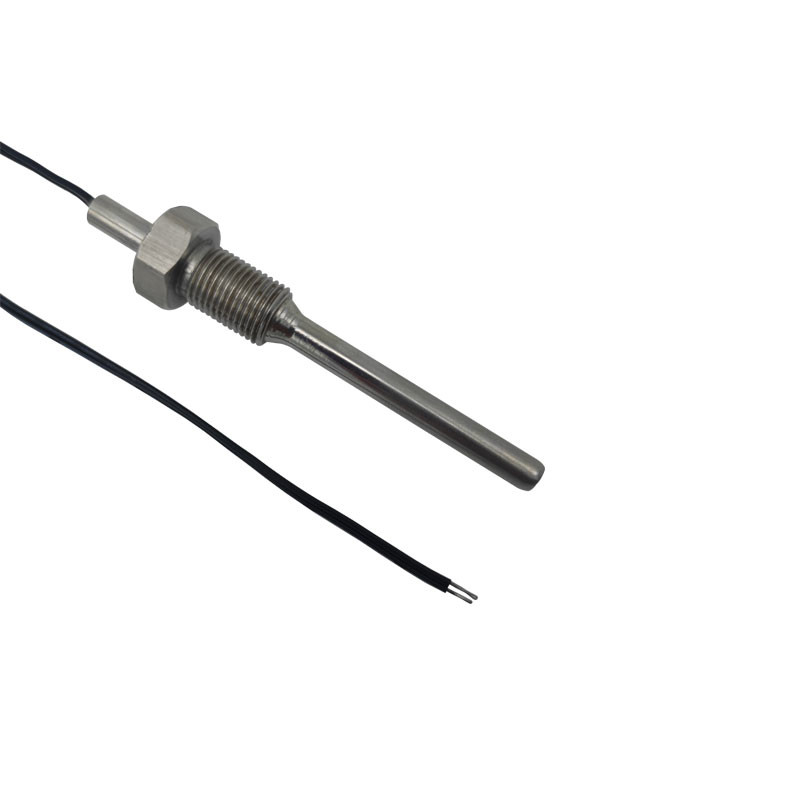

Stainless Steel Ntc Temperature Sensor For Mechanical And Electrical Equipment
Brief Instruction (Product Description):
It is consist of the insulated wire (PTFE wire,PVC wire,XLPE insulated wire), NTC chip and epoxy resin,Stainless steel M10 threaded probe. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply for RoHS standard
insulated lead wires series Operating temperature range: -40℃~125℃
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Easy to install and manipulate as the sealing can be done according to environment
Application:
Agricultural machinery equipment, mechanical and electrical equipment
Structure and Dimensions:(unit:mm)
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
Electrical Specification: |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 | |
| 1.5 | B25/50=3850 | ||||||
| 1.5 | B25/50=3935 | ||||||
| 2 | B25/85=3550 | ||||||
| 2 | B25/85=3935 | ||||||
| 2.08 | B25/85=3580 | ||||||
| 2.2 | B25/50=3935 | ||||||
| 3 | B25/50=3950 | ||||||
| 5 | B25/50=3470 | ||||||
| 5 | B25/50=3950 | ||||||
| 8 | B25/100=3988 | ||||||
| 10 | B25/85=3435 | ||||||
| 10 | B25/50=3470 | ||||||
| 10 | B25/50=3935 | ||||||
| 10 | B25/50=3950 | ||||||
| 20 | B25/50=3950 | ||||||
| 47 | B25/50=3950 | ||||||
| 50 | B25/50=3950 | ||||||
| 50 | B25/50=4200 | ||||||
| 100 | B25/50=4200 | ||||||
| 200 | B25/50=4200 | ||||||
| 500 | B25/50=4450 | ||||||
| 1000 | B25/85=4600 |
