| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MFE1 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Epoxy NTC Temperature Sensor,NTC Temperature Sensor 300mm,Integrated NTC Temperature Sensor |
||

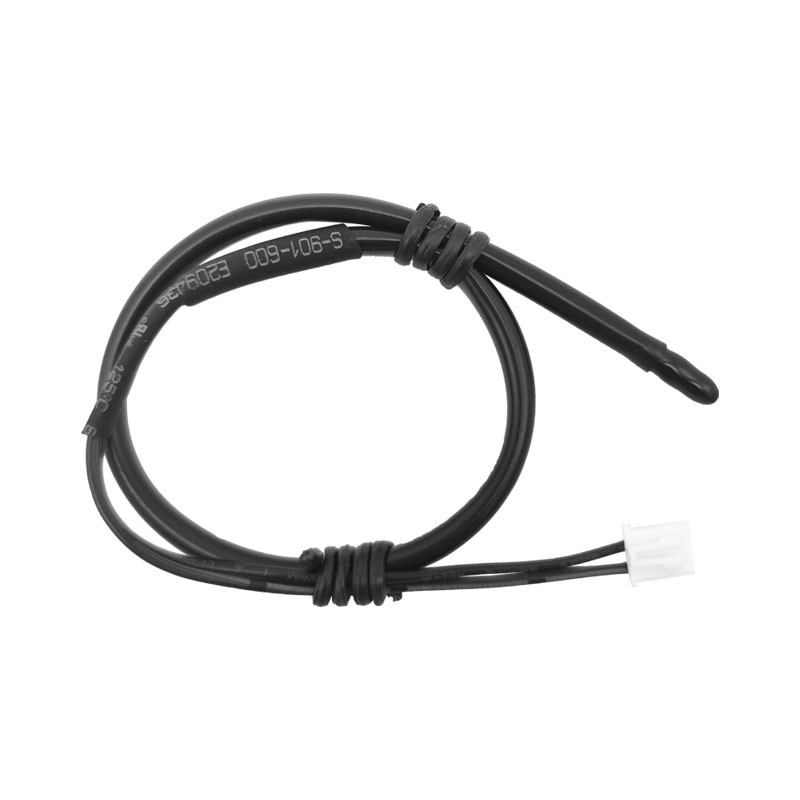

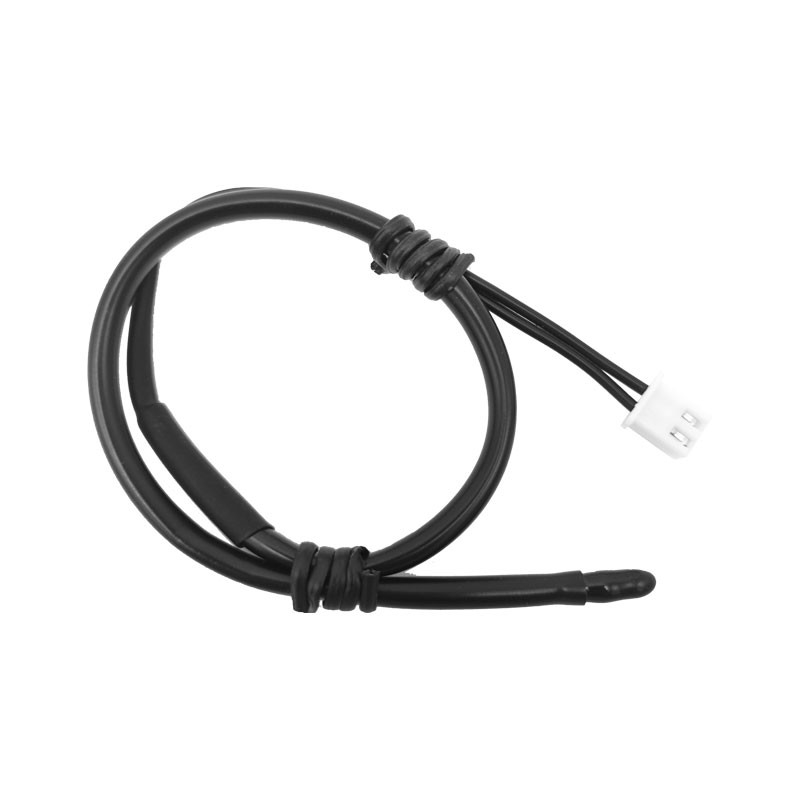

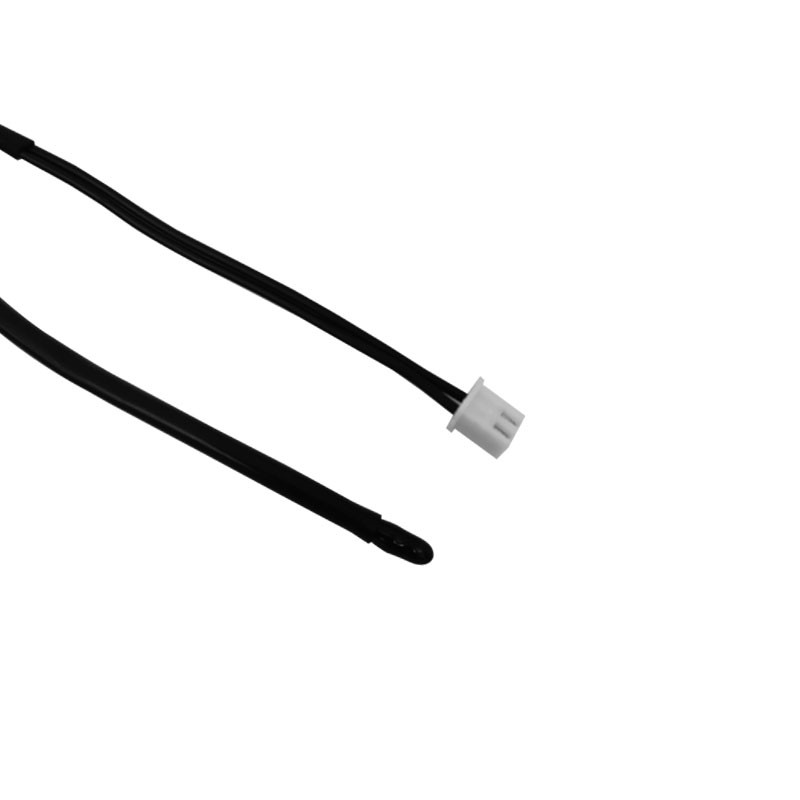

5k 10K 50k 100k 3950 Integrated Ceiling Epoxy NTC Temperature Sensor 300mm
Brief Instruction (Product Description):
10KΩ3950k Integrated Ceiling Epoxy Temperature Sensor is consist of the insulated wire (FEP wire,PVC wire,XLPE insulated wire), NTC chip and epoxy resin. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply for ROHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Good stability and reliability
Easy to install and manipulate as the sealing can be done according to environment
Accurate testing can reflect temperature change precisely.
AC1500V 1m 1S
Application:
For integrated ceiling temperature measurement
Structure and Dimensions:(unit:mm)
Method of storage
1 During storage and transportation, the height of each stack shall not exceed 4 boxes of products.
2 Any method of transportation is allowed. But to avoid rain, snow, direct or indirect drench and mechanical damage
3 Products should be stored in a temperature of 10"C/+40°C, relative humidity is not greater than 80%, the surrounding environment should not be acidic, alkaline substances and corrosive gases or radiation sources.
