| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Custom |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Induction Cooker Ntc Probe Temperature Sensor,250 Celsius NTC Temperature Sensor,Induction Cooker NTC Temperature Sensor |
||

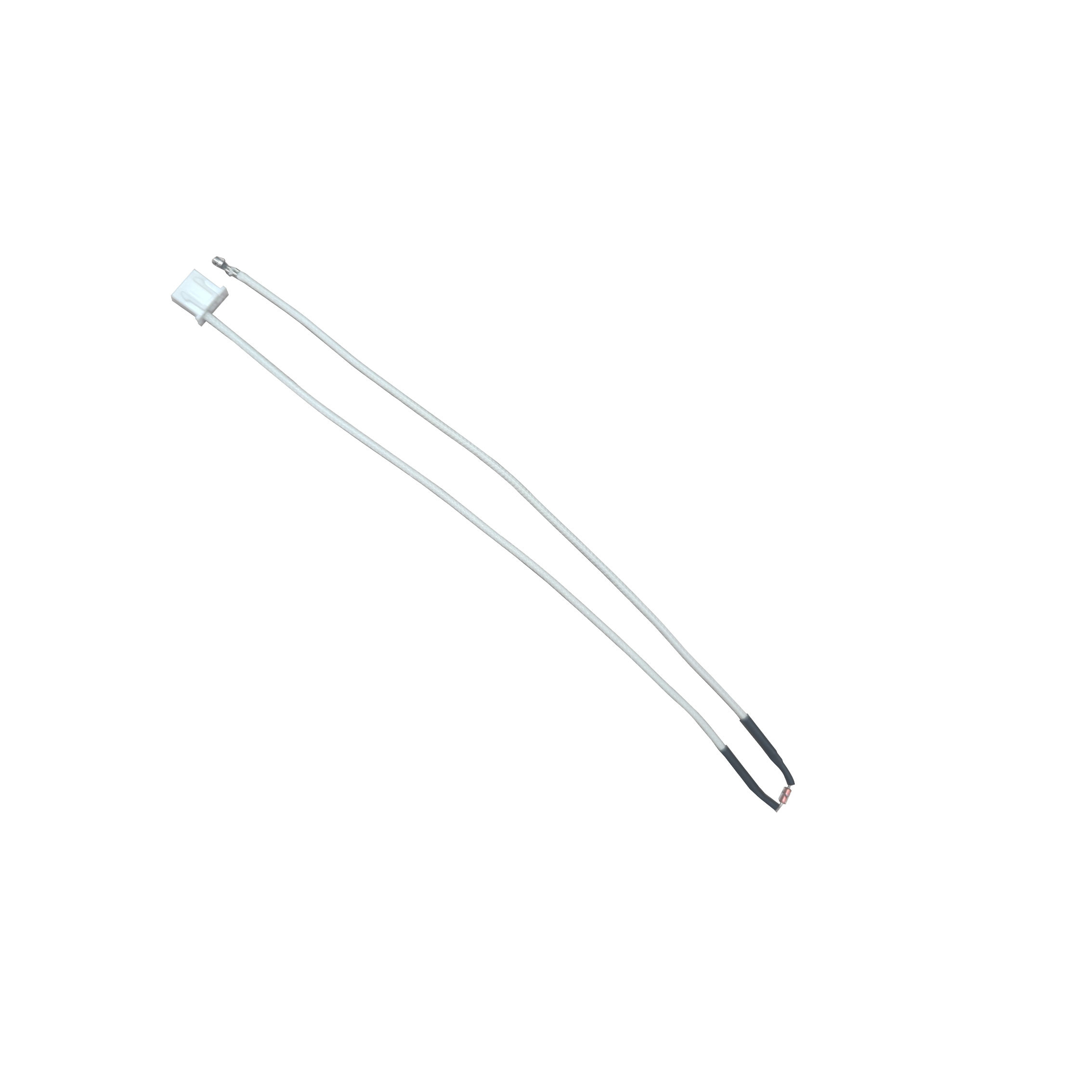

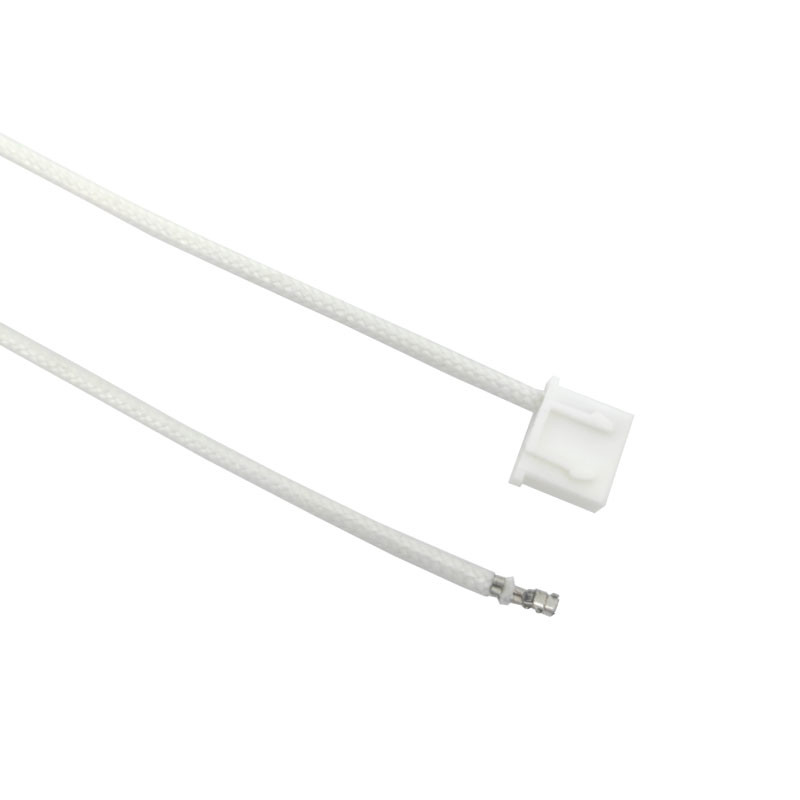

250℃ Ntc Temperature Probe Temperature Sensor For Induction Cooker
Brief Instruction (Product Description):
250℃ Temperature Sensor for Induction Cooker can withstand temperature of 250℃, glass fiber silicone wire and resistance are connected by copper belt.
Features:
Comply for ROHS standard
PVC insulated lead wires series
Operating temperature range: -40℃~250℃
Application:
Induction cooker, Milk warmer, thermostatic coasters, intelligent relays, wine cabinets, and so on
Product customization Notice:
⑴ Resistance value of the product (nominal resistance value of resistance at 25℃, or other)
⑵ Accuracy of the product (1%-5%)
(3) B-value coefficient of the product
⑷ Wire type and length (color, length, temperature resistance requirements)
Conductor tail specifications (tin immersion, socket plug-in, special specifications)
⑹ Probe specifications and materials (copper plated nickel, copper, stainless steel, ABS rubber shell)
⑺ has a temperature range
