| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MFP-4B |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Water |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Boiler Ntc Probe Temperature Sensor,Electric Kettle NTC Temperature Sensor,NTC Thermistor Temperature Sensor IP64 |
||

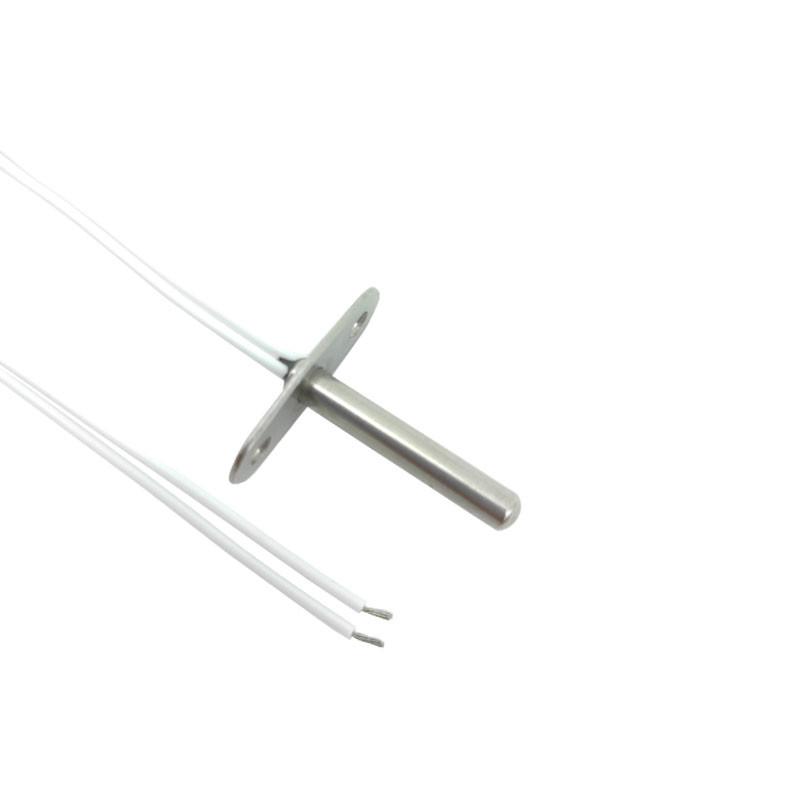

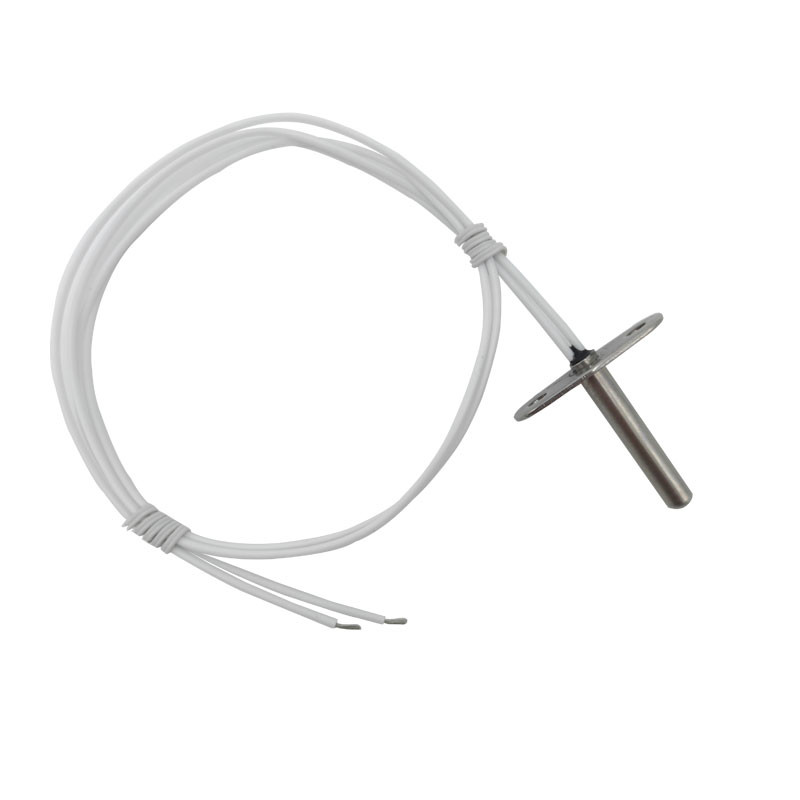

NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler
Brief Instruction (Product Description):
This product is generally used in the stainless steel probe of electric kettle, the wire is FEP 26AWG 200℃ wire, resistance parameters are generally 50K ω, 100K ω, B25/50=3950K (also can be customized according to customer requirements) use epoxy resin packaging, wire tail can be matched according to customer requirements with the corresponding connector.
Features:
Comply for ROHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stability is good
Stainless steel probe
Application:
Electric Kettle
Structure and Dimensions:(unit:mm)
Product customization Notice:
(1) Resistance value of the product (nominal resistance value of 25"C, or other resistance)
(2) Product accuracy (1%-5%)
(3) B-value coefficient of the product
(4) Wire type and length (color, length, temperature resistance requirements)
(5) Wire tail specifications (tin immersion, socket plug-in, special specifications)
(6) Probe specifications and materials (copper plated nickel, red copper, stainless steel, ABS rubber shell)
(7) Use temperature range
