| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~125℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Water Heaters NTC Temp Sensor,Household Appliances NTC Temp Sensor,Water Heaters NTC Temperature Sensor |
||

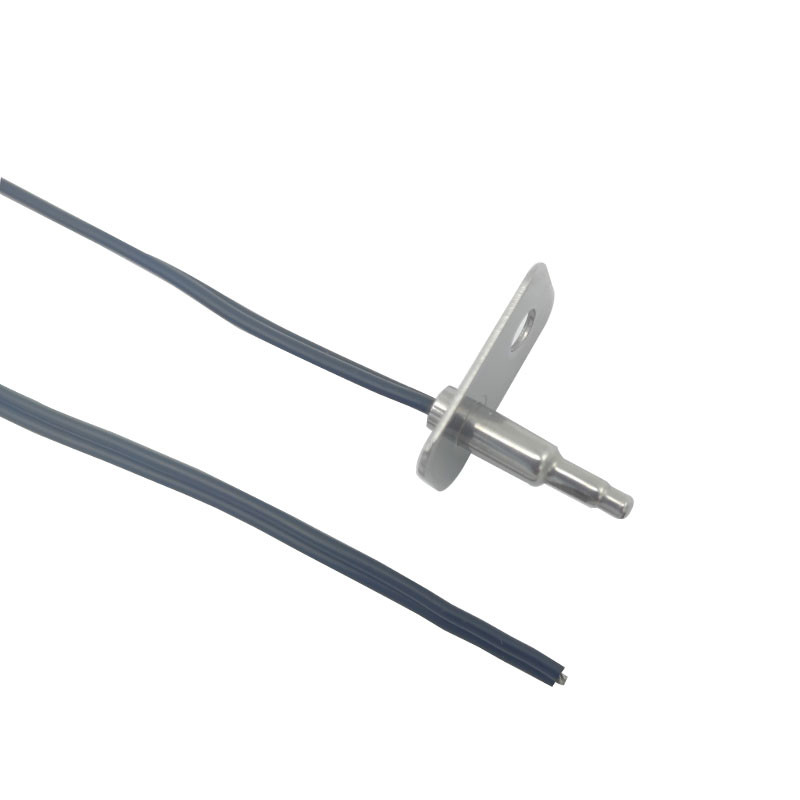

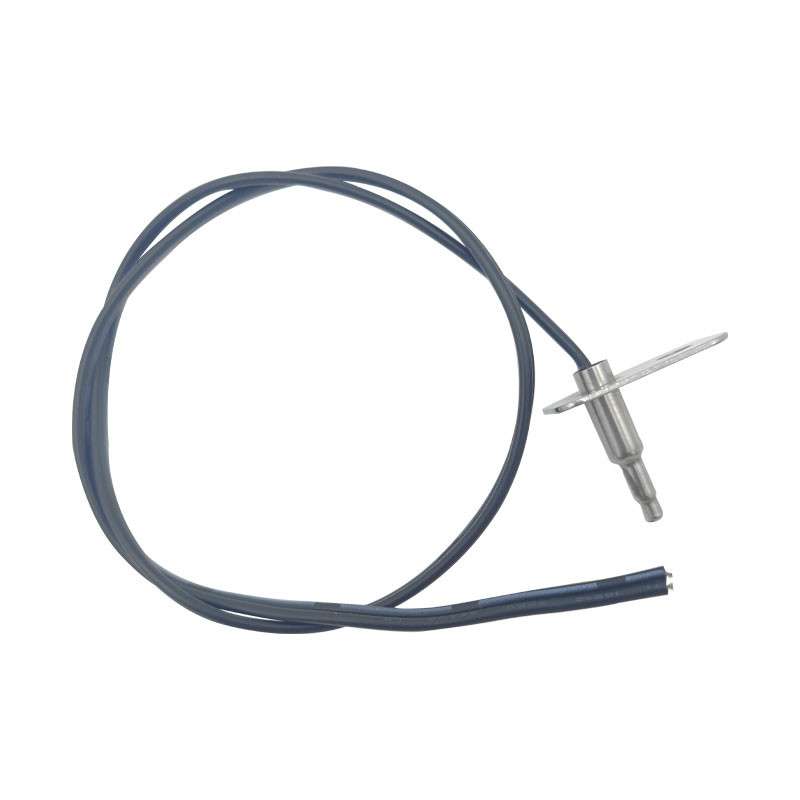

Efficient Temperature Sensors For Small Household Appliances And Water Heaters
Brief Instruction (Product Description):
Efficient NTC Temperature Sensors for Small Household Appliances is generally used in electric kettles and other small household appliances, the probe of the product is stainless steel, the wire is UL4413 26AWG XLPE 150℃ irradiation line, the resistance parameters are generally 50K ω, B25/50=3950K (can also be customized according to customer requirements) using epoxy resin packaging, the end of the line according to customer requirements with the corresponding connector.
Features:
A quick response
Comply for ROHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stainless steel probe
Operating temperature range: -40~+150℃ long time stable operation
Thermal time constant: about 10S
Water pressure: AC1800V*60S no breakdown and flicker phenomenon
Waterproof class: IP66
Product qualification: Meet environmental protection requirements
Using the resistance chip at room temperature and epoxy resin encapsulation, high temperature and low impact product resistance value is not cheap, no peeling, no dissolution.
With heat resistance, cold resistance and very good stability, easy to install, beautiful appearance, strong structure, fast temperature sensing, flexible customization size.
Application:
Electric kettles, water heaters and other small household appliances.
