| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Red |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~250℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Ntc 3950 Thermistor Sensor,Glass Bead Temperature Sensor,IP 64 Ntc Thermistor Sensor |
||
Ntc 3950 Thermistor Sensor 3d Printer And Fridge Or Kenmore Dryer
Brief Instruction:
MF58 series glass bead temperature sensor,as one 50k NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotive electronic, house appliances, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
R25=50KΩ±1%,B25/50=3950±1%
Application:
Home appliance
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;
Structure and Dimensions:

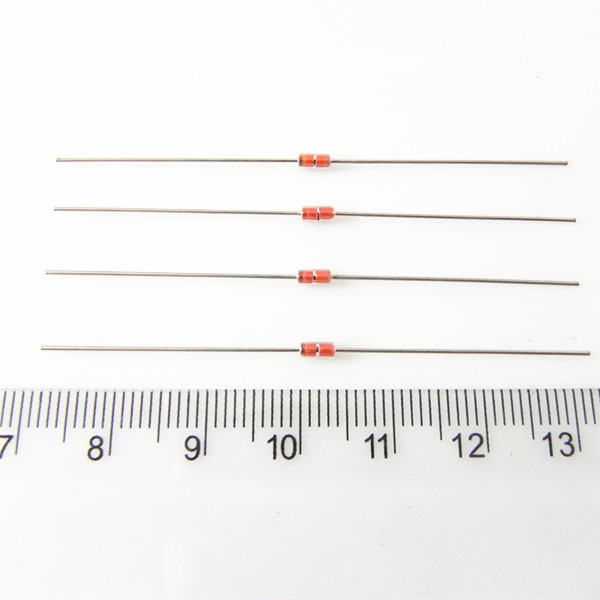

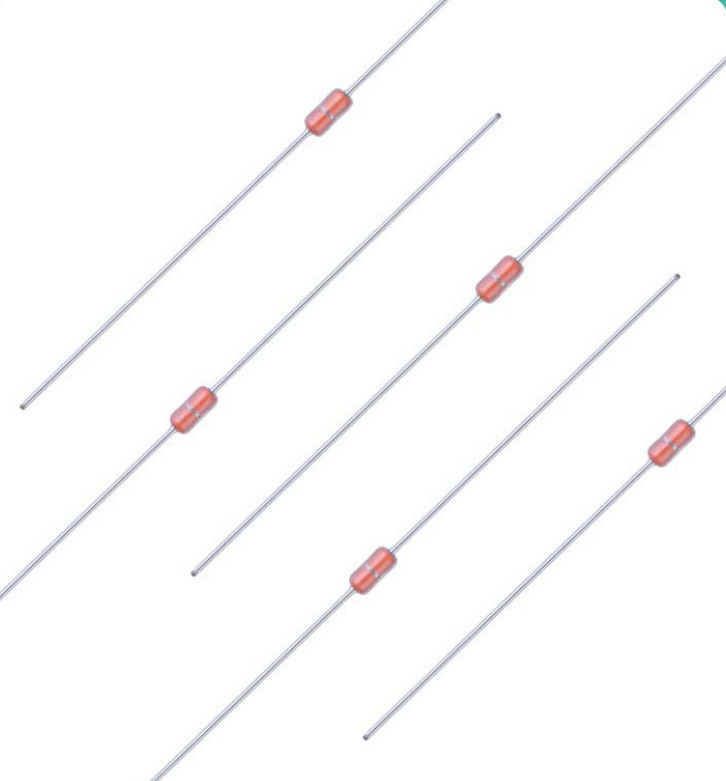

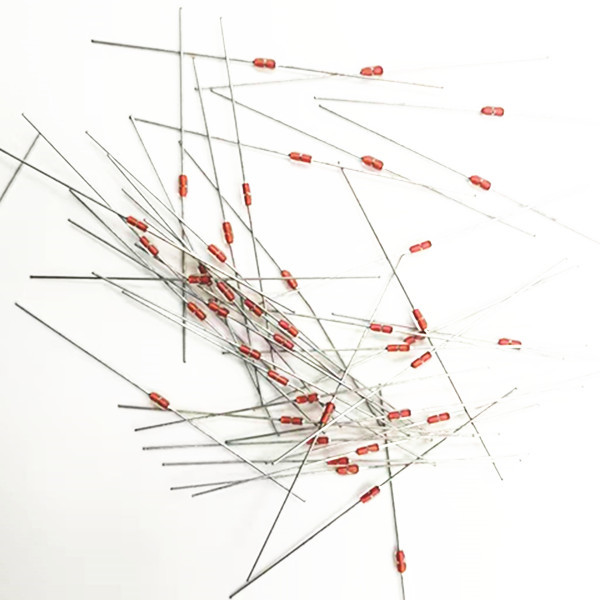

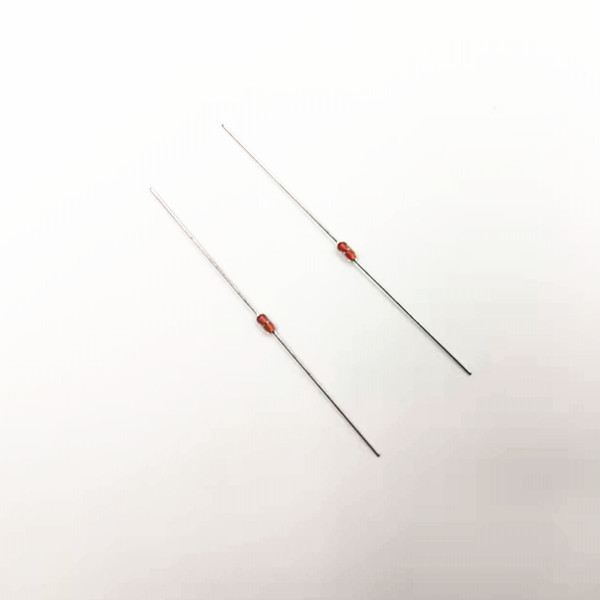

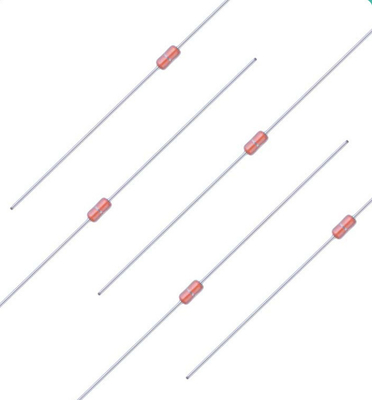

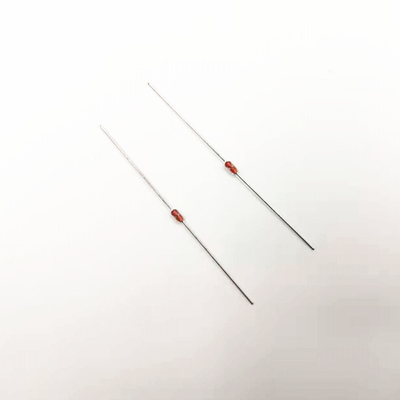

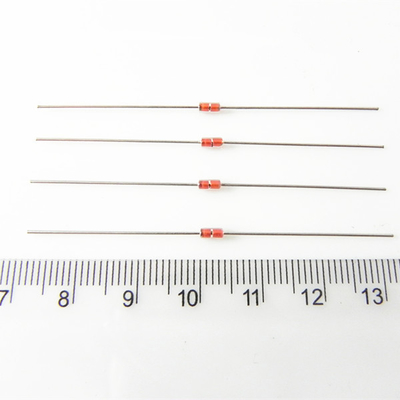

product picture/images:
Standard packing (inner packing): 500pcs/polybag
