| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Custom |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -20℃~80℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Freezer Temperature Sensor,Server Room Temperature Sensor,Cylindrical Housing Temperature Sensor |
||
Temperature Sensor For Server Room Temperature Monitor For Ac And Freezer
Brief Instruction:

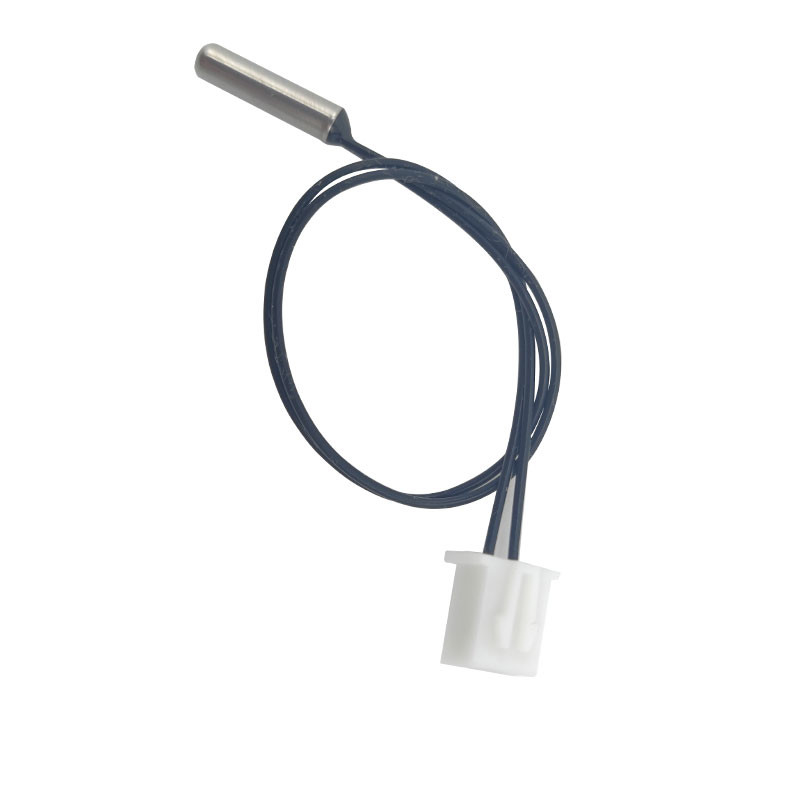

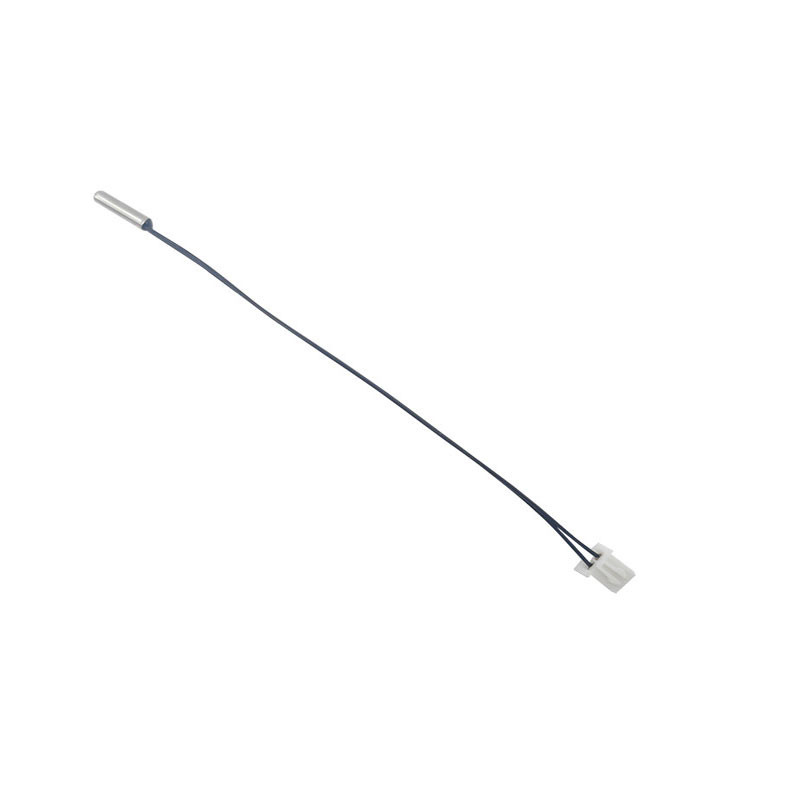

10KΩ Cylindrical Housing Temperature Probe consists of lead wires (PVC insulated wire, FEP insulated wire, XLPE insulated wire), NTC resistor, cylindrical housing ( stainless steel tube, copper tube and plastic housing) and connector. The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K.
Features:
Comply for ROHS standard
PVC insulated lead wires series
Operating temperature range: -20℃~80℃
Stable performance
Application:
Home appliances (A/C, refrigerator etc)
Industrial intelligent controller
