| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Custom |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -20℃~80℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | IP64 Nest Temperature Sensor,IP64 Industrial Temperature Sensors,ROHS Industrial Temperature Sensors |
||

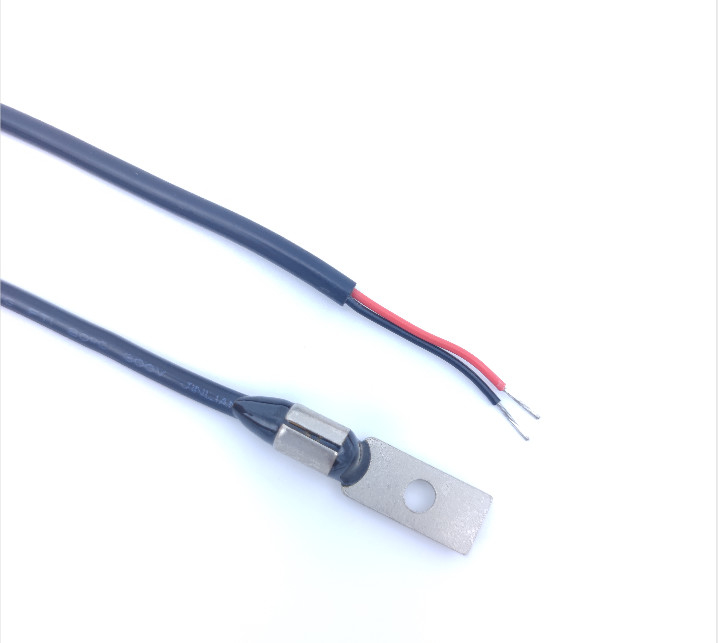

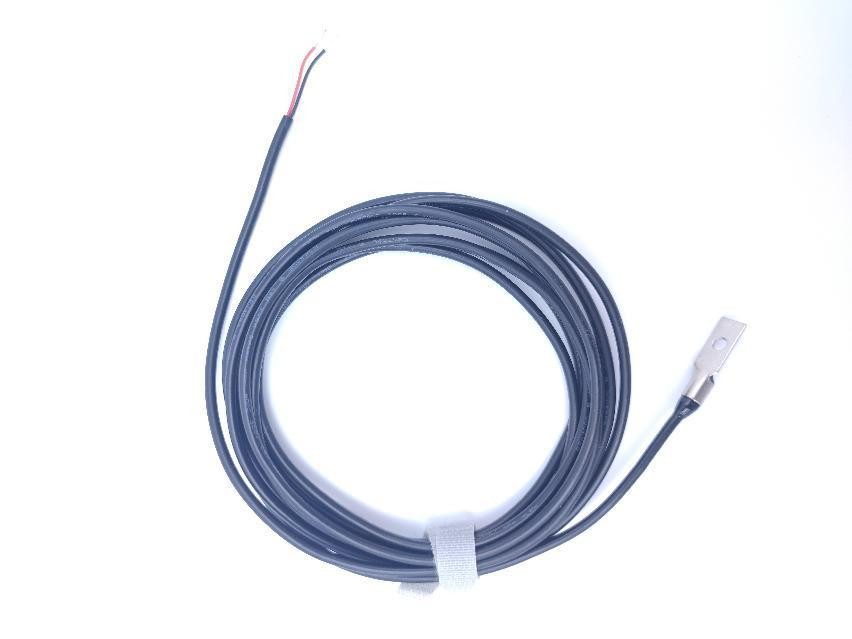

Nest Temperature Sensor Industrial Temperature Sensors Power Industry
Brief Instruction:
Ring lug M3.7 The optional resistance value range 0.3kΩto 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply for ROHS standard
Miniature designed
Interchangeability
Surface mount temperature measurement
Operating temperature range: -40℃~80℃
Application:
Control cabinet
Commercial unit
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
About the Product
Because the company is selling many models, not timely shelf products, if you do not find the products you need, please contact online customer service or call for consultation, thank you
