| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |

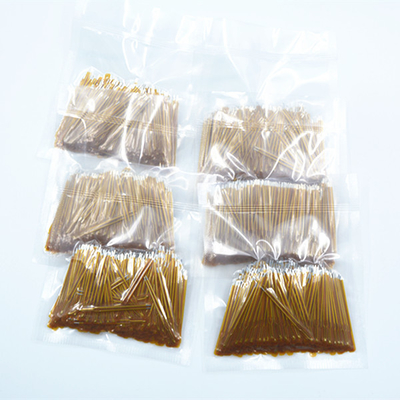

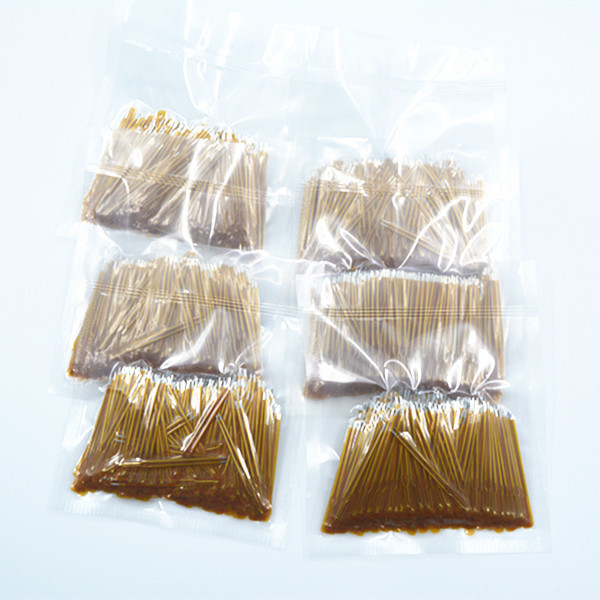

| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Thin Film Type |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~100℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | 50kohm Ntc Thermistors,IP64 Ntc Thermistors,Customization Ntc Thermistors |
||
50kohm 3950k 3990k Chip Ntc Thermistors Thermometrics Ntc Thermistors
Brief Instruction:
The width of 10KΩ3435k Film type NTC Thermistor is 4.5mm, the total length of the product is 25mm, and the total thickness of the product is Max 0.6mm.
Features:
Thin film type
Thin, fast response time
Operating temperature range: -40℃~100℃
Alternative resistance values are available for precision:±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, battery pack
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | |||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | |||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | |||

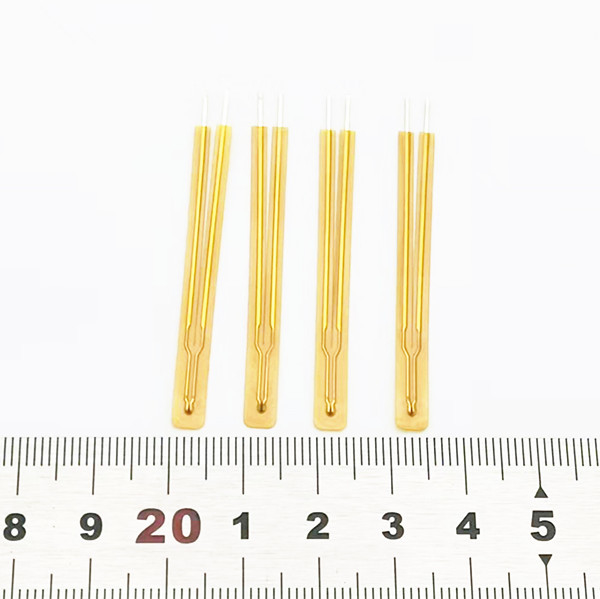

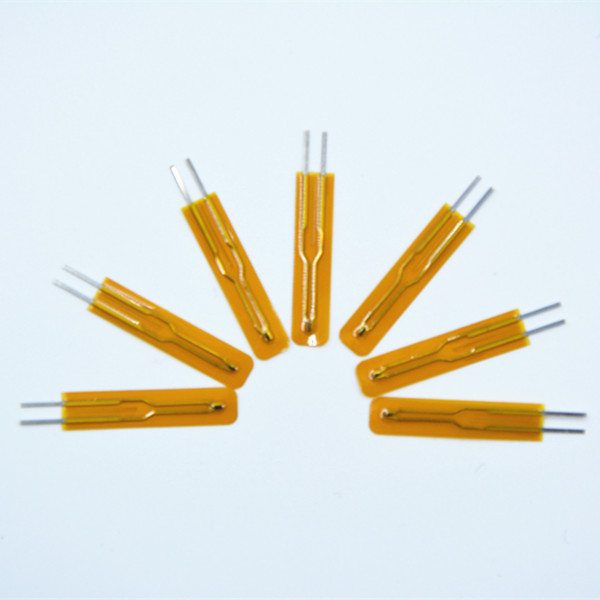

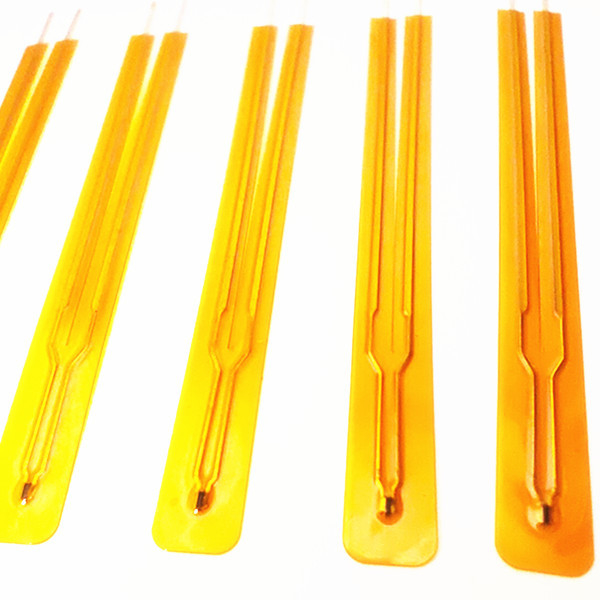

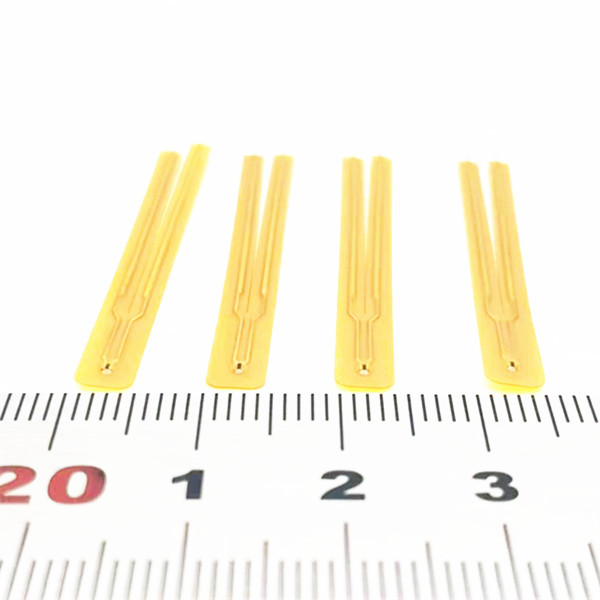

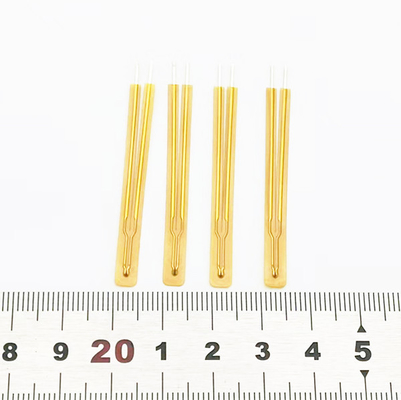

product picture/images:
Jingpu Sensor offers OEM Services in Temperature Monitoring and thermistor products. Bring us your ideas and we will help you develop them into quality products with a competitive edge in the medical market. We can also assist you in streamlining your production process and marketing your product.
