| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40 °C~125 °C |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Ntc Industrial Temperature Sensor,IP64 Industrial Temperature Sensor,Manufacturing Applications Ntc Temp Sensor |
||
Industrial Temp Sensors For Manufacturing Applications Wholesale Ntc Sensor
Brief Instruction (Product Description):

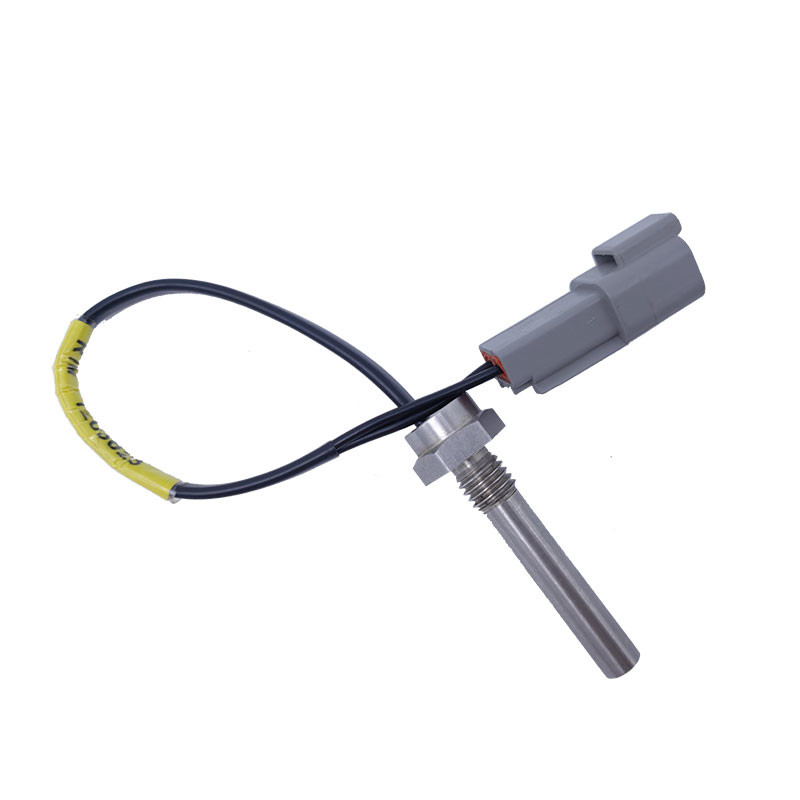

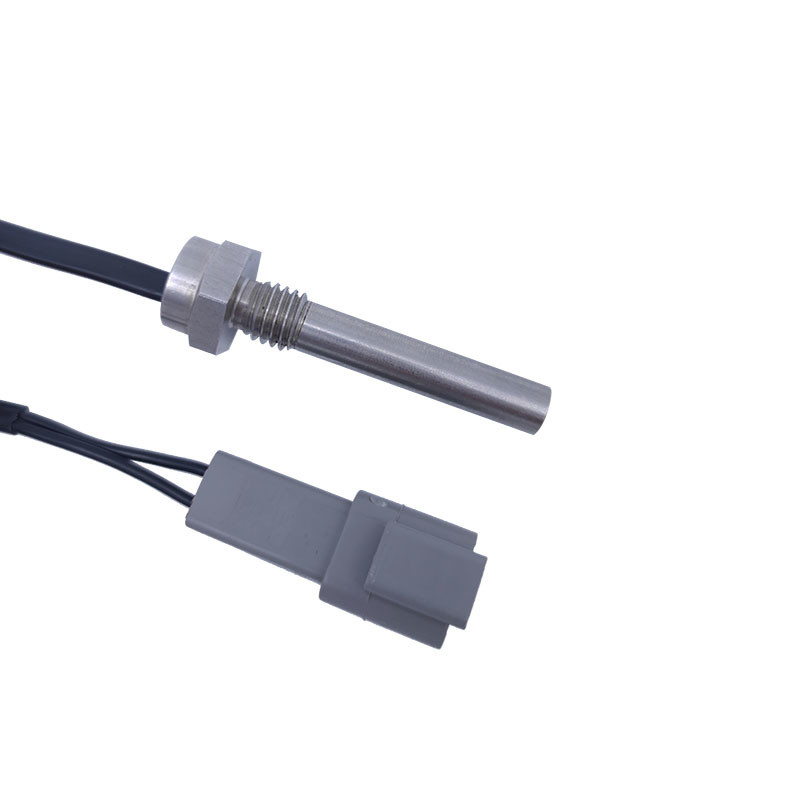

Temperature sensor of container loading truck in port is used for temperature measurement of construction machinery and vehicles, mainly used for port container loading vehicles. The probe is stainless steel, the thread is M10, and the connector is DT04-2P.
Features:
Comply for ROHS standard
R25℃=3kΩ
B25/85=3500K
Easy installation
High reliability
Probe stainless steel corrosion resistant
Application:
Engineering equipment
Structure and Dimensions:(unit:mm)
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
