| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | PVC Wire |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -20℃~80℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | IP64 Temperature Sensor Probe,Temperature Sensor Probe High Voltage,Ntc Thermistor Temperature Sensor Probe |
||
Temperature Sensor Probe High Accuracy High Voltage Resistant Ntc Thermistor
Brief Instruction:
High voltage surface temperature measurement NTC temperature sensor is widely used in transformer cabinet, high voltage cabinet and other electrical cabinets, can withstand AC5000V high voltage insulation.
Features:
Comply for ROHS standard
PVC insulated lead wires series
Operating temperature range: -20℃~80℃
Easy installation
Resistant to high voltage
Application:
Substation ark
High voltage
Electric cabinet
Appearance requirements:
1: Inner hole of ring terminal: 3.2MM,4MM,5MM,6MM,8MM(can be customized according to customer requirements)
2: Line length: customized according to customer requirements
3: Wire :PVC wire and wire (customized according to customer requirements)
4: Wire color: black, white, red, yellow, green (can be customized according to customer requirements)
5: Thermistor parameters: customized according to customer requirements
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

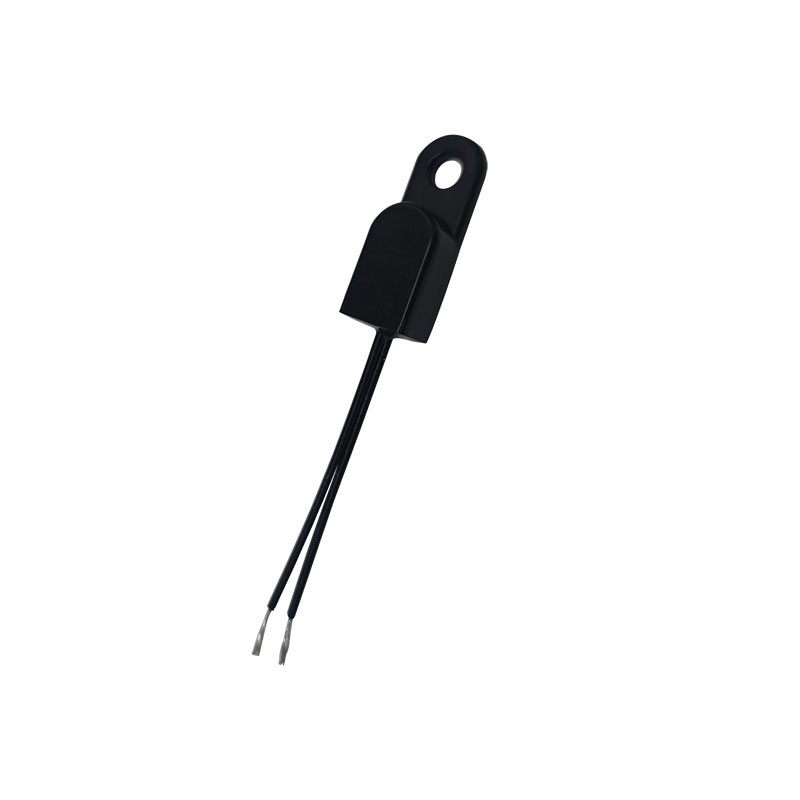

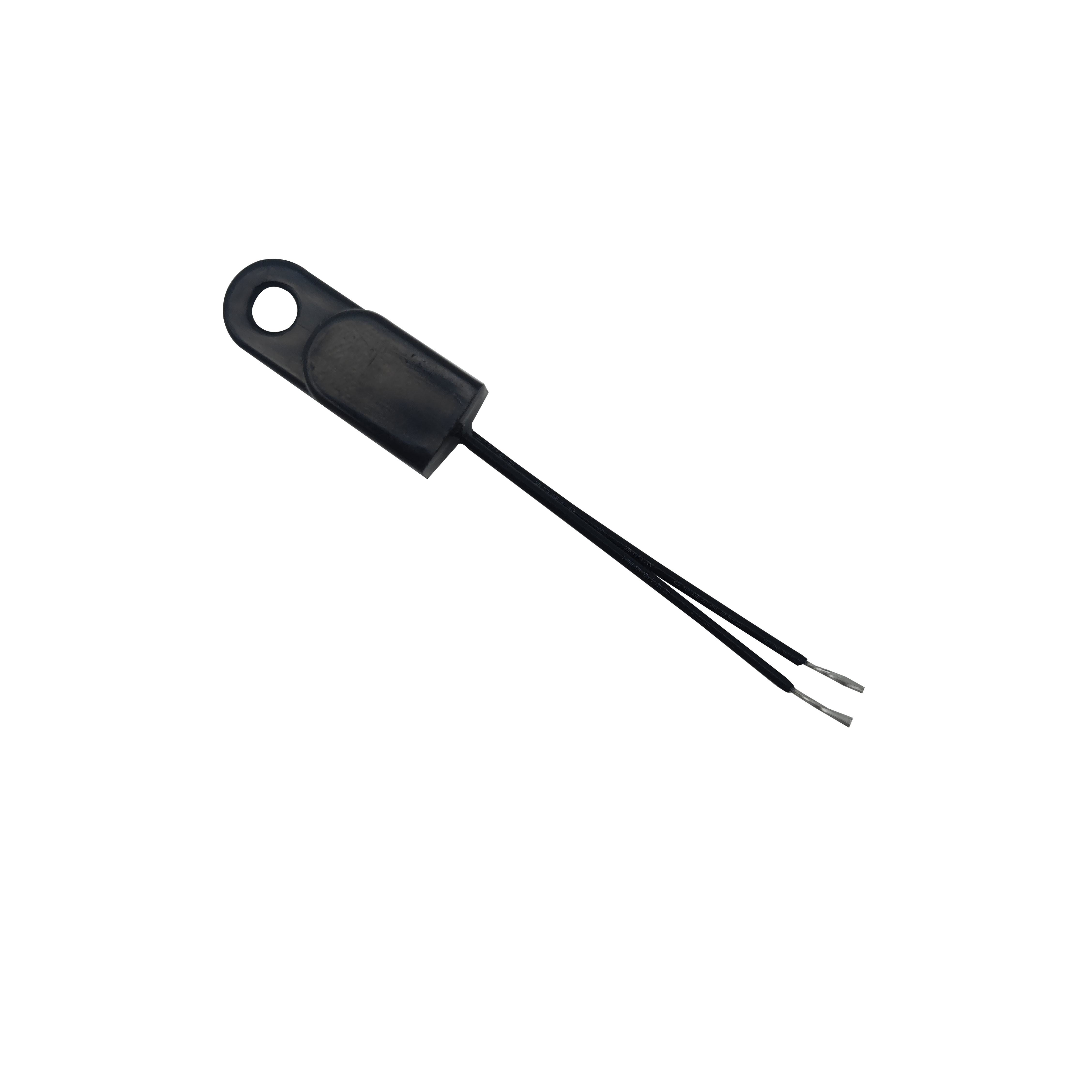

Product picture:
