| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFT |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | PVC Wire |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Yellow |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~80℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Moistureproof Fridge Temperature Sensor,10K Fridge Temperature Sensor,PVC Lead Fridge Temperature Sensor |
||

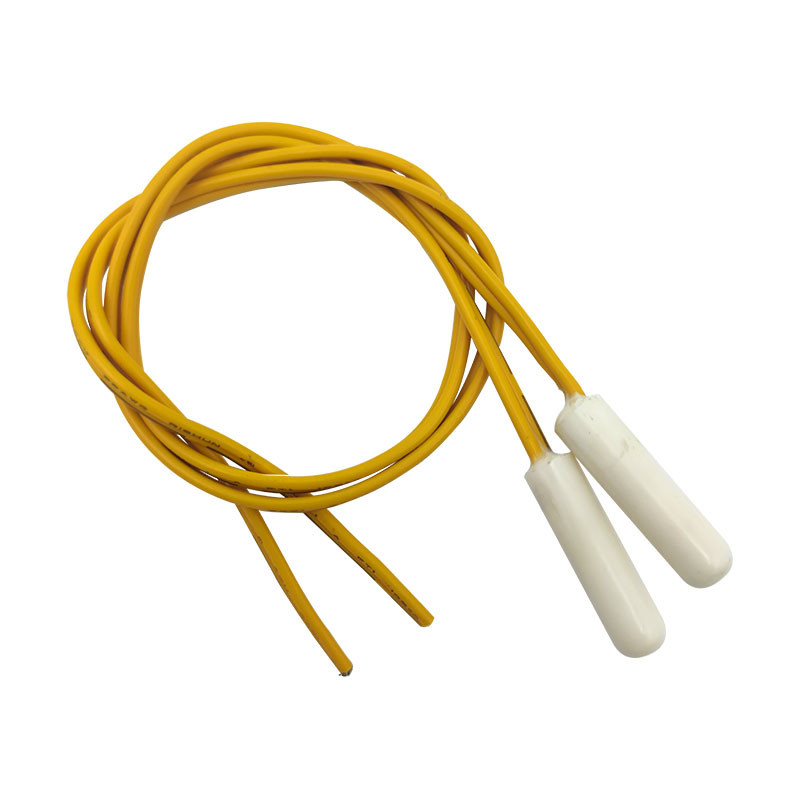

Moistureproof ABS Probe PVC Lead 10K Fridge Temperature Sensor NTC Thermistor
Brief Instruction:

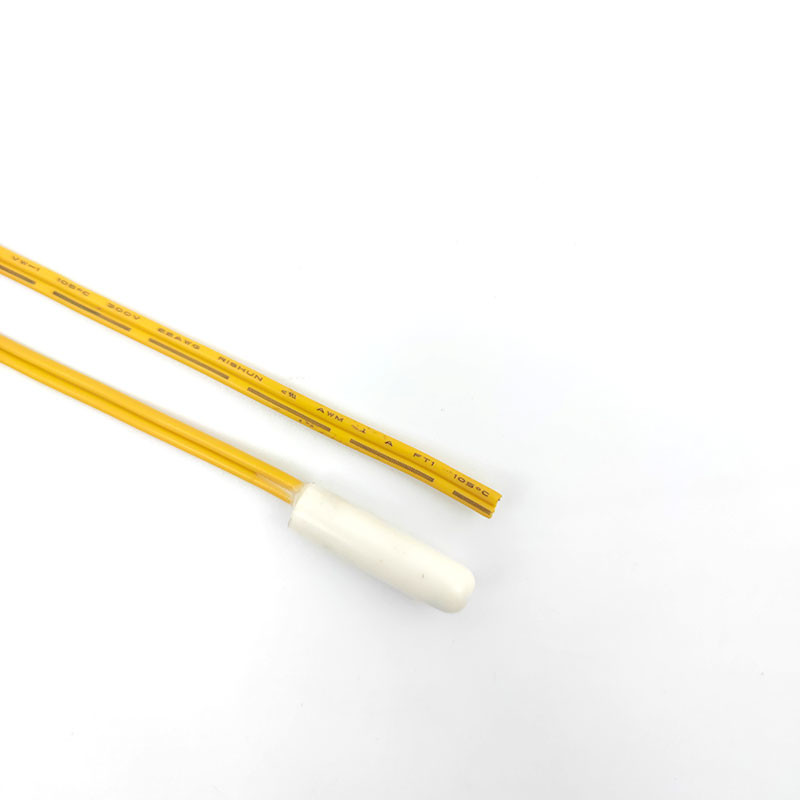

Refrigerator with ABS probe NTC temperature sensor, probe for the market general ABS φ 7*25mm shell, lead UL2651 24AWG wire, the parameters are generally 5kω, 10Kω, control temperature at 0℃ or so.
Features:
Comply for ROHS standard
PVC insulated lead wires series
Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Accurate low temperature control
R0℃=32.51kΩ±2%
B25/50=3950k±1%
Application:
Refrigerator
Structure and Dimensions(mm):
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
Electrical Specification: |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~80℃ | 100~2000 | |
| 1.5 | B25/50=3850 | ||||||
| 1.5 | B25/50=3935 | ||||||
| 2 | B25/85=3550 | ||||||
| 2 | B25/85=3935 | ||||||
| 2.08 | B25/85=3580 | ||||||
| 2.2 | B25/50=3935 | ||||||
| 3 | B25/50=3950 | ||||||
| 5 | B25/50=3470 | ||||||
| 5 | B25/50=3950 | ||||||
| 8 | B25/100=3988 | ||||||
| 10 | B25/85=3435 | ||||||
| 10 | B25/50=3470 | ||||||
| 10 | B25/50=3935 | ||||||
| 10 | B25/50=3950 | ||||||
| 20 | B25/50=3950 | ||||||
| 47 | B25/50=3950 | ||||||
| 50 | B25/50=3950 | ||||||
| 50 | B25/50=4200 | ||||||
| 100 | B25/50=4200 | ||||||
| 200 | B25/50=4200 | ||||||
| 500 | B25/50=4450 | ||||||
| 1000 | B25/85=4600 |
