| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MF5A-200 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Copper Tinned Lead |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Miniature |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | 25℃~45℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | High Accuracy Ntc Thermistor Sensor,Epoxy Coating Ntc Thermistor Sensor,4.0mm Ntc Thermistor Sensor |
||
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
Brief Instruction:
10Kω high precision epoxy coated NTC Thermistor, with temperature measuring accuracy of 25℃~45℃±0.1℃, can be used for medical instruments and equipment.
Features:
R25℃=10kΩ
B0/50=3892k±0.5%
Temperature measuring accuracy 25℃~45℃±0.1℃
Copper tinned lead 0.25
Application:
Medical instruments, medical equipment
Structure and Dimensions:(unit:mm)

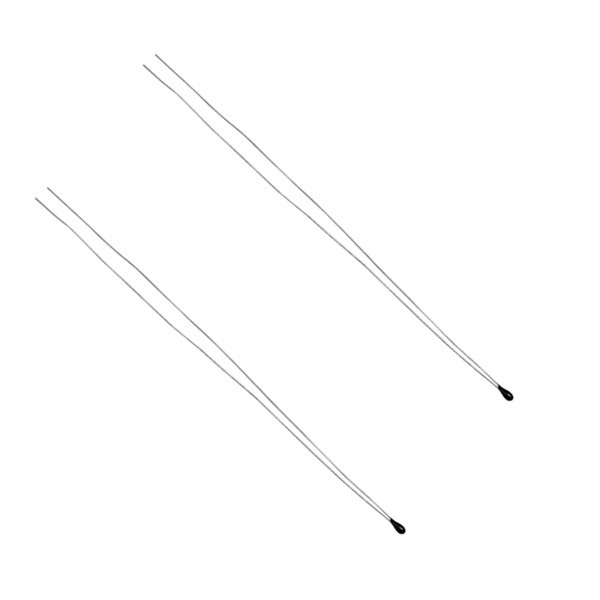

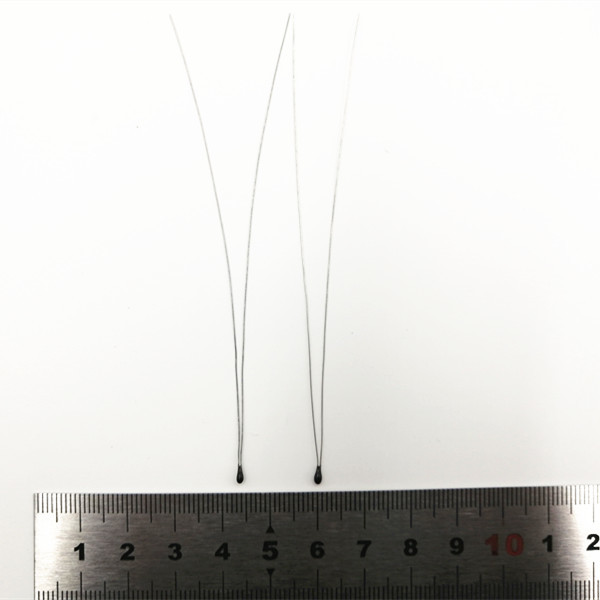

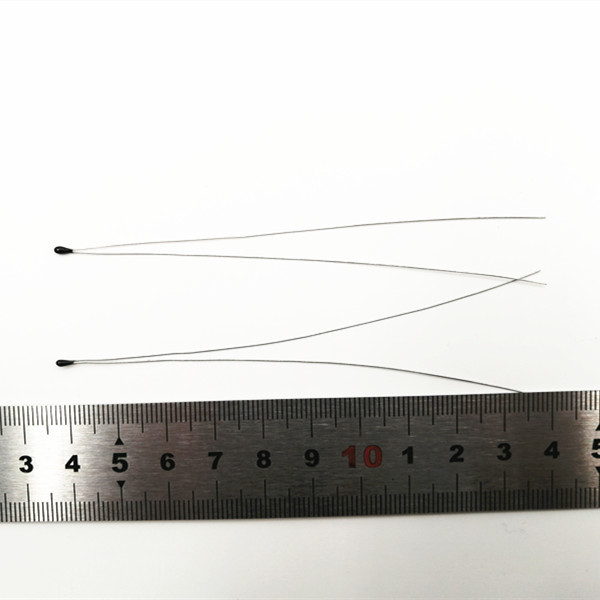

product picture:
Features:
1:MF5A-200 series products are NTC thermistor temperature sensors coated with epoxy resin in the same direction enameled wire
2: Wide resistance range: 1KΩ~200KΩ
3: high accuracy of resistance value and B value
4: good insulation, high reliability, small time constant
5: Small volume, fast reflection speed
6: Able to work steadily for a long time with good consistency
7: Operating temperature range :25~45℃
