| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~200℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Starter Generator Coil Temperature Sensor,IP64 Coil Temperature Sensor,Electric Motor Coil Temperature Sensor |
||

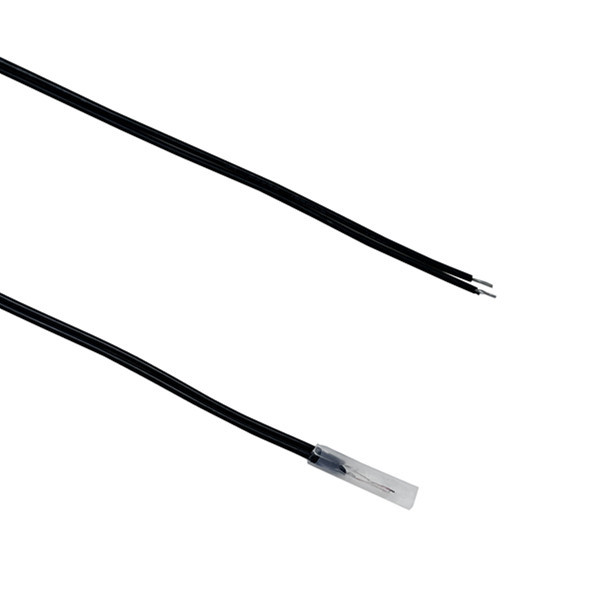

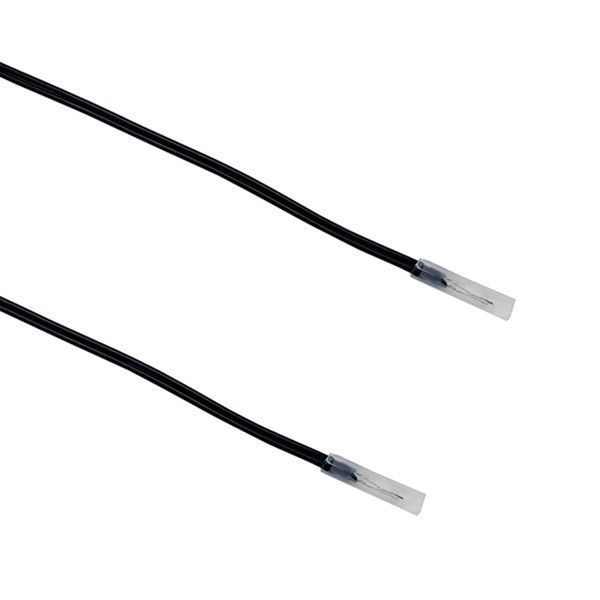

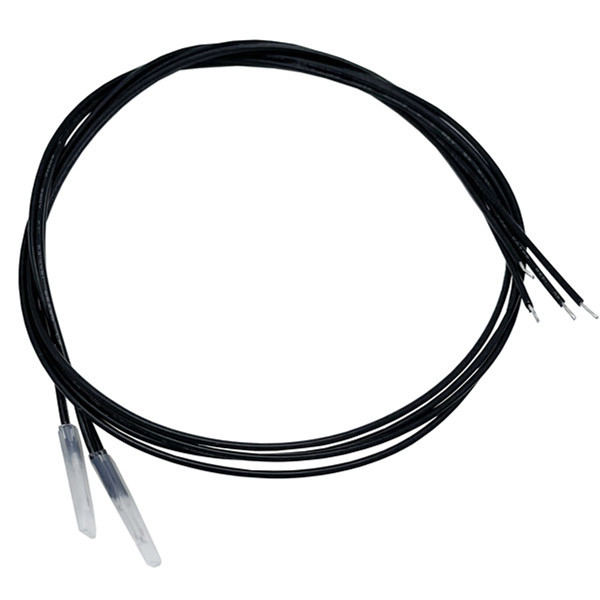

Motor Coil Temperature Sensor For Starter Generator And Electric Motor
Brief Instruction:
Motor Coil Temperature Measurement NTC Temperature Sensor can be used for temperature measurement of motor coil, the product is resistant to high temperature, oil. The temperature sensor NTC thermistor is polycrystalline mixed oxide ceramics made MF57 type glass bead NTC thermistor soldered with UL 1332 FEP insulated wire 24AWG. Most of temperature probe housings are rectangular FEP tube. Its parameters: R100=3.3KΩ,B0/100=3970K, voltage withstanding 1500V/1sec/1mA.
Features:
ROHS compliant
High temperature resistant
Oil-proof
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ,B0/100=3970K
Application:
Motor Coil Temperature Measurement
Structure and Dimensions:
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5 dimension (mm) | 3.5 | 15 | 2.0 | 2.3 | 500 | 3 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | tube (rectangular) | 1 | / |
| 3 | Wire | UL1332 24AWG wire 200℃ | 1 | Black |
| 4 | Stripping | tinned | 2 |
