| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFT |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~125℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Ntc Thermistor Digital Temperature Sensor,Ntc Thermistor Digital Temp Sensor,Cable Digital Temp Sensor |
||
Cable Temp Sensor Digital Temperature Sensor Circuit Using Ntc Thermistor 50k
Brief Instruction:

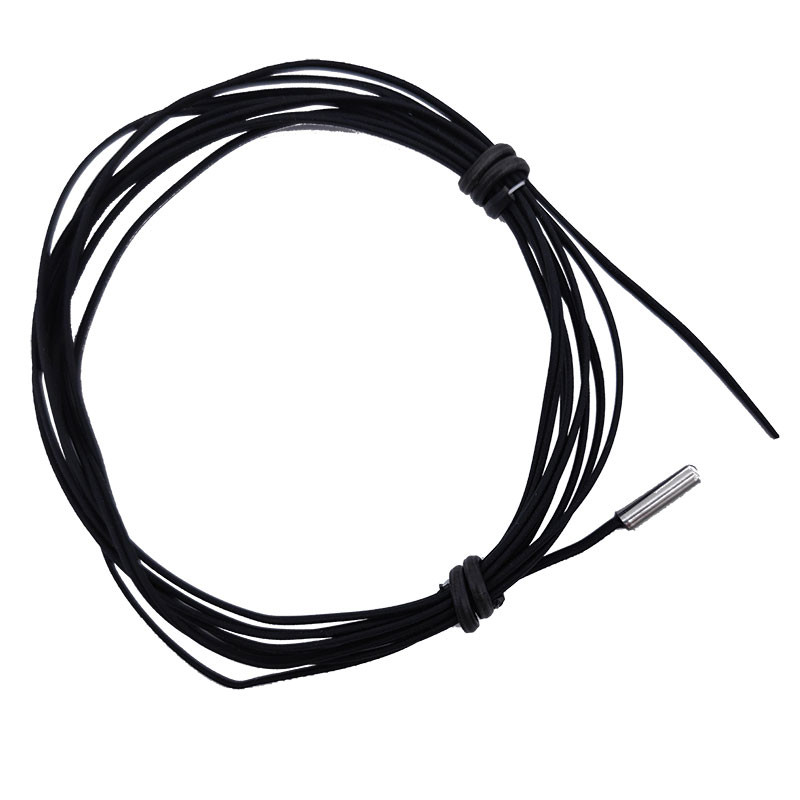

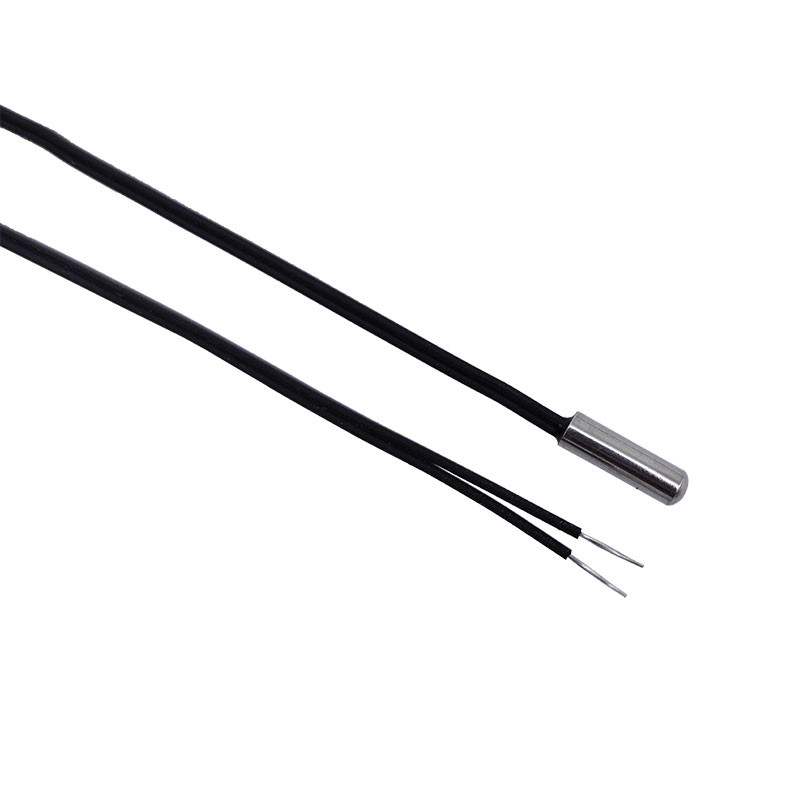

Stainless steel φ3*10mm probe, XLPE 28AWG wire, 50kΩ3950K Wire Monitoring Temperature Sensor for Communication Equipment Room is used to be embedded in the electric circuit, measuring wire heating temperature.
Features:
Comply for ROHS standard
Interchangeability
XLPE insulated lead wires series Operating temperature range: -40℃~125℃
R25℃=50kΩ±3%
B25/50=3950k±1%
Waterproof, dustproof, dew resistance, impact resistance, heat resistance, low temperature resistance, chemical resistance and excellent electrical properties, product size stability, good surface luster and so on
Application:
Monitor the cables in the communication room
Structure and Dimensions:
About the Offer
Jingpu has a variety of sensor probe specifications to choose from, we can also customize the specifications and sizes according to customer requirements, you can contact sales06@jingpusensor.com to customize. Due to the various probe models, the specific price can not be marked one by one, the above price is for reference only, please contact us to place an order!
