| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Package |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Million per Year |
| Probe: | Square Brass Copper Probe | Resistance: | R25℃=10KΩ±1% |
|---|---|---|---|
| B25/85: | 3435K±1% | Operating Temperature Range: | -40℃~125℃ |
| Dissipation Factor: | Approx 2mW/℃ In Still Air | Withstand Voltage: | AC750V 1mA 1s |
| Wire: | UL4484 28#（7/0.12）OD1*2.1 | Max Power: | Approx 60mW |
| Highlight: | Refrigeration Temperature Sensor,High Precision Thermistor Housing |
||
10KΩ 3435K Refrigeration Temperature Sensor
Product Description:
The 10KΩ 3435K refrigeration temperature sensor is a specialized sensor designed specifically for measuring and monitoring temperatures in refrigeration systems. Here are the key features and characteristics of this sensor:
Resistance Value: The sensor has a resistance of 10KΩ at 25°C. This resistance value is commonly used in temperature sensing applications and allows for accurate temperature measurements.
Temperature Coefficient: The 3435K refers to the temperature coefficient of the sensor. It indicates how the sensor's resistance changes with temperature. In this case, the sensor has a resistance change of 3.435Ω per degree Kelvin (°K) or Celsius (°C) increase in temperature.
Refrigeration Applications: This sensor is specifically designed for use in refrigeration systems. It can accurately measure the temperature inside refrigerators, freezers, cold rooms, or other cooling equipment.
Temperature Range: The sensor is suitable for a wide temperature range typically encountered in refrigeration applications. It can measure temperatures ranging from -50°C to +150°C (-58°F to +302°F), allowing for precise temperature monitoring within the refrigeration system.
Sensing Element: The sensing element of the sensor is designed to respond quickly to temperature changes, enabling real-time temperature monitoring and control in refrigeration systems.
Compatibility: The 10KΩ 3435K refrigeration temperature sensor is compatible with various types of temperature controllers, data loggers, and monitoring systems commonly used in refrigeration applications.
Durable Construction: The sensor is typically built to withstand the challenging conditions found in refrigeration environments. It is designed to be resistant to moisture, condensation, and other factors that could potentially affect its performance.
Easy Installation: The sensor is designed for easy installation within the refrigeration system. It can be integrated into the system's piping, ducting, or other appropriate locations to accurately measure the temperature of the refrigerated environment.
The 10KΩ 3435K refrigeration temperature sensor is a reliable and precise device that enables temperature monitoring and control within refrigeration systems. Its compatibility, wide temperature range, and durable construction make it suitable for a variety of refrigeration applications, ensuring optimal performance and temperature regulation.
Features:
R25℃=10KΩ±1%
B25/85=3435K±1%
Response time: ≤60S
Dissipation factor: Approx 2 mW in still air
Max Power: Approx 60mW in still air
Withstand voltage: in still air AC750V 1mA 1s
Operating temperature sensor: -40~125℃
Application:
This item is widely used for refrigeration, home appliances, etc.
Dimension:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx 60 | Approx 2 | ≤60 | -40～125 | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

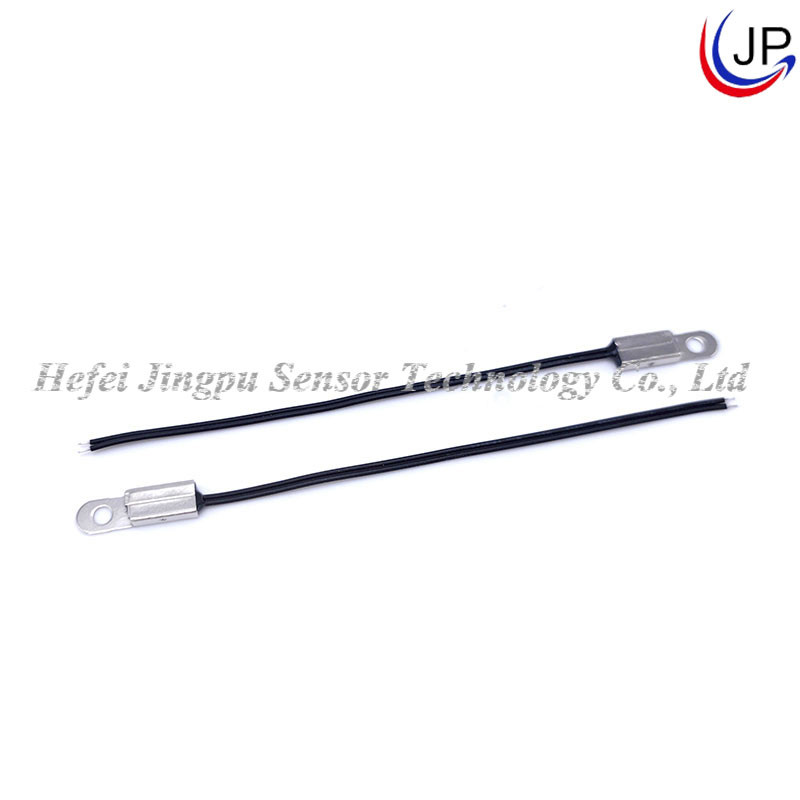

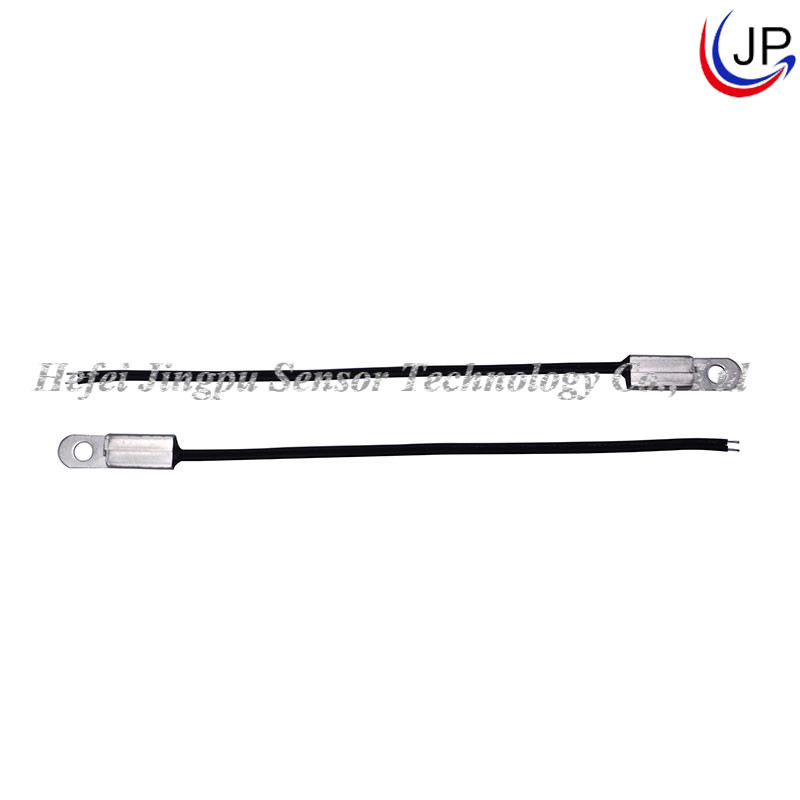

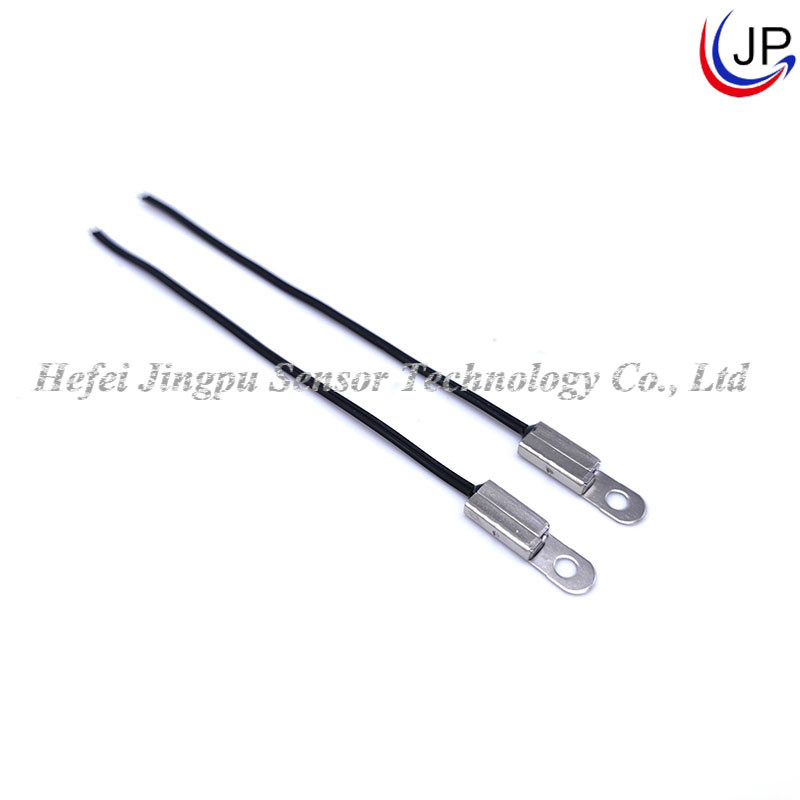

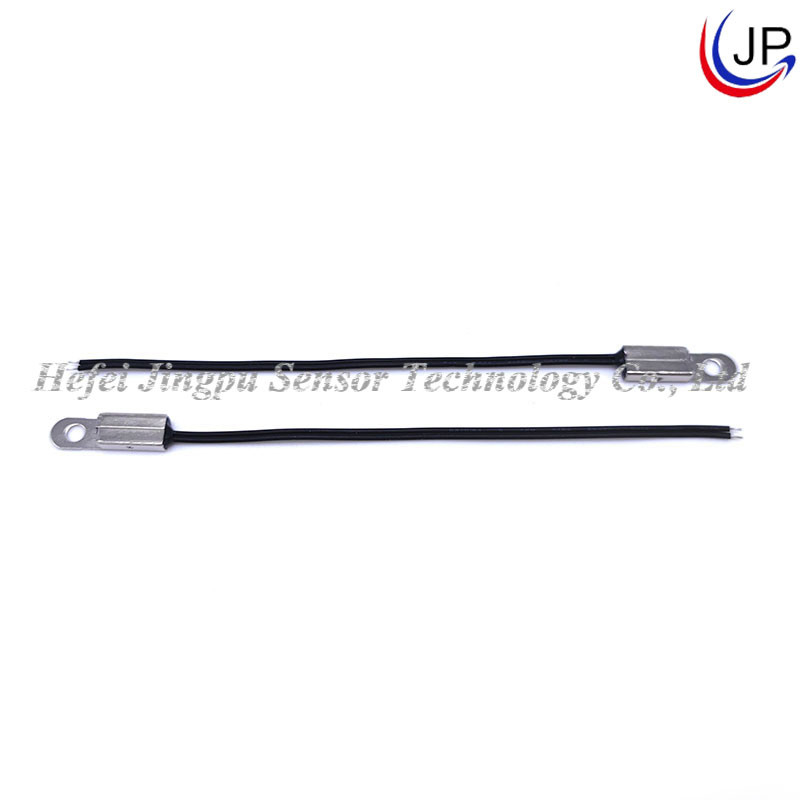

Product Images:
