| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF57 |
| Minimum Order Quantity: | 5000PCS |
| Price: | Negotiable |

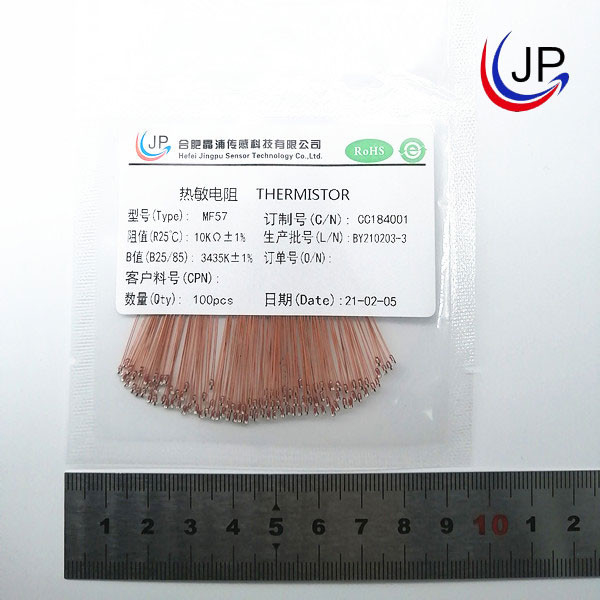

| Packaging Details: | 500PCS/bag |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Features: | Glass Encapsulation | Product Name: | MF57 Glass Coating NTC Thermistor |
|---|---|---|---|
| Brand Name: | JINGPU SENSOR | Operating Temperature Range: | -40℃~300℃ |
| Model Number: | MF57 | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | By Air, By Sea, Express | Packing: | Standard Packing |
| High Light: | Glass Bead ntc type temperature sensor,ntc type temperature sensor Home Appliance,Industrial Device ntc thermistor probe |
||

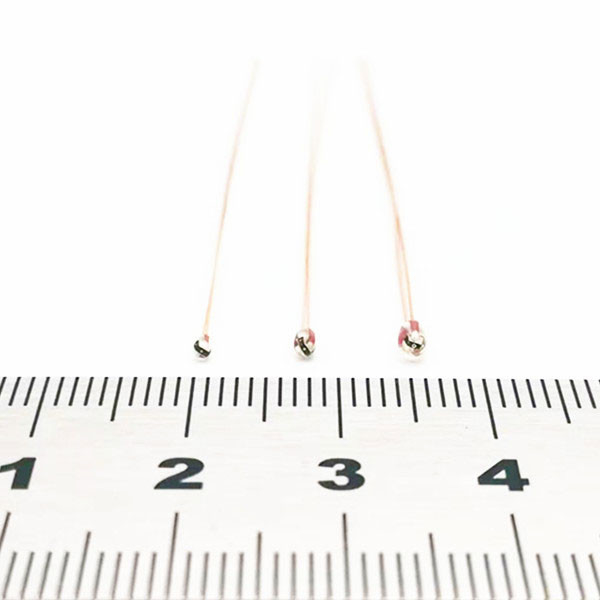

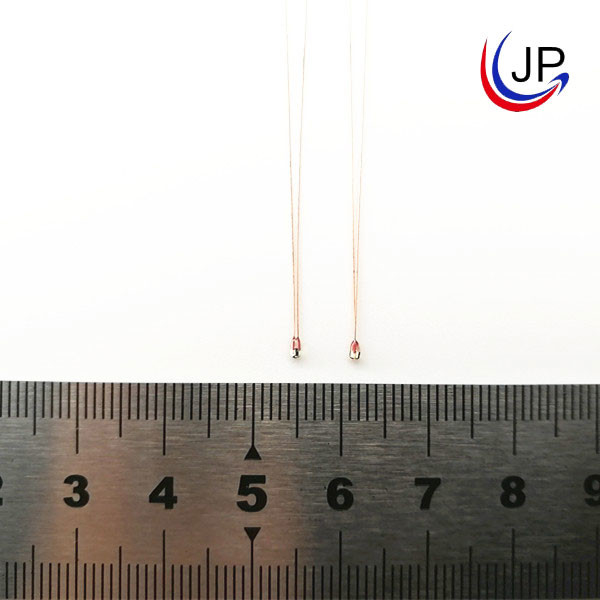

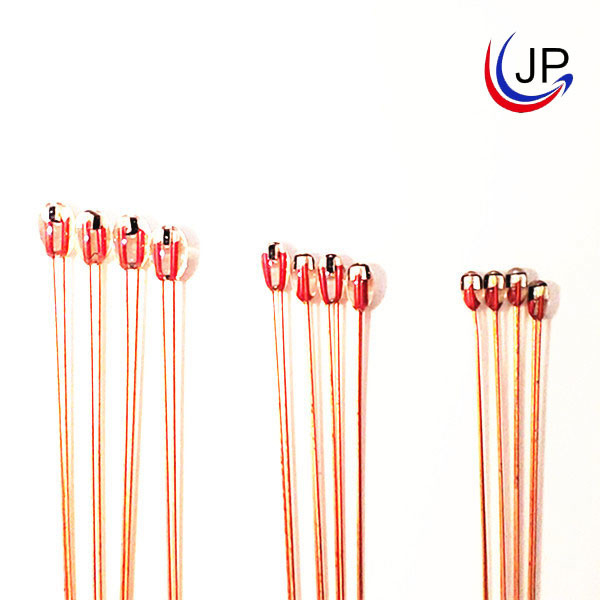

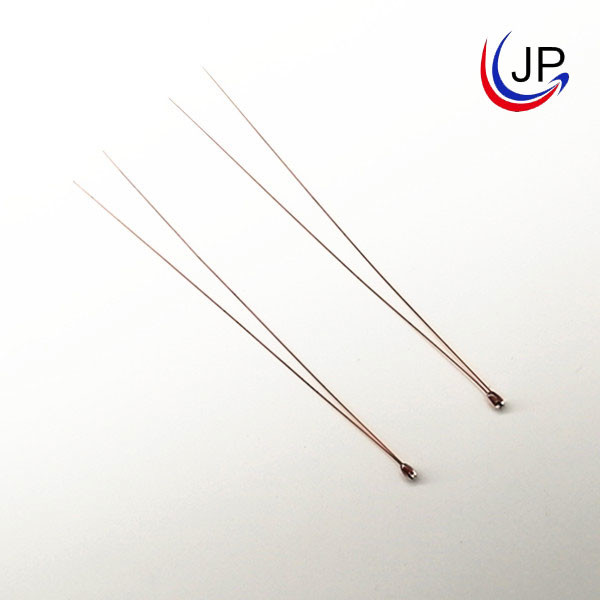

Glass Bead NTC Type Temperature Sensor For Home Appliance Automobile Industrial Device
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor be widely applied for automatic electronics, home appliances, industrial device, etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
| D | d | L1 | L |
| 1.3±0.2 | 0.2 | 2.0~3.0 | 50 |
| 1.6±0.2 | 0.2 | 3.0~4.0 | 50 |
| 2.0±0.2 | 0.3 | 3.0~4.0 | 50 |
| 2.3±0.2 | 0.3 | 3.0~4.0 | 50 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Encapsulation | Glass | 1 | / |
| 3 | Wire | Dumet Wire | 2 | / |
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B7A202□3470A□L50 | 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| B7A202□3830A□L50 | 2 | B25/85=3977 | |||||
| B7A502□3950A□L50 | 5 | B25/85=3950 | |||||
| B7A103□3435B□L50 | 10 | B25/85=3435 | |||||
| B7A103□3950A□L50 | 10 | B25/50=3950 | |||||
| B7A503□3950A□L50 | 50 | B25/50=3950 | |||||
| B7A104□3950A□L50 | 100 | B25/50=3950 | |||||
| B7A104□4132B□L50 | 100 | B25/85=4132 | |||||
| B7A104□4200A□L50 | 100 | B25/50=4200 |
