| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Operating Temperature Range: | -20℃~105℃(PVC) | Chip: | NTC Thermistor |
|---|---|---|---|
| Resistance: | 0.3KΩ~ 2000KΩ | B Value: | 2500k ~ 4500k |
| Application: | Home Appliances, Commercial Unit, Automobile, Etc | Customization: | Yes |
| High Light: | 2000k Probe Temperature Sensor,0.3k Probe Temperature Sensor,2500K high temp temperature sensor |
||
0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
Product Description:
It consists of the insulated wire ( wire,PVC wire,XLPE insulated wire), NTC chip, epoxy resin, and Nickel-plated copper M6 threaded probe. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
insulated lead wires series Operating temperature range: -40℃~125℃
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Easy to install and operate as the sealing can be done according to the environment
Application:
Home appliances, commercial units, automobiles, etc.
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

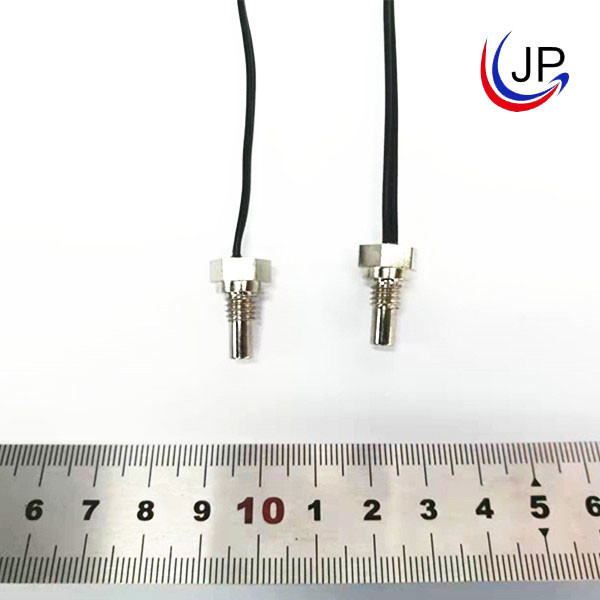

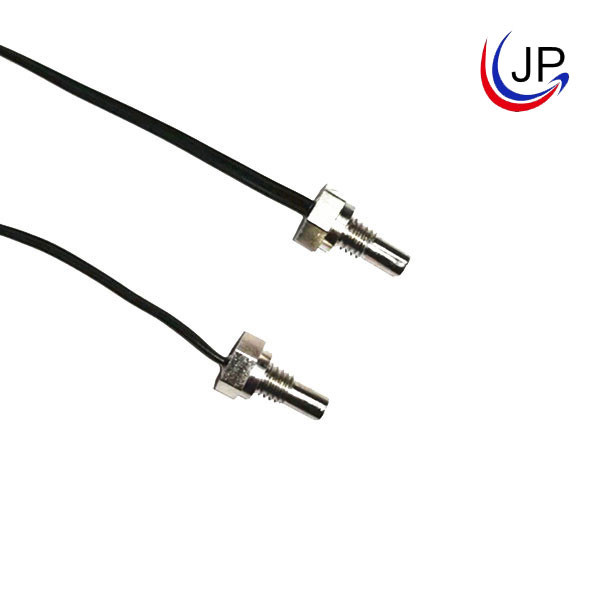

Other Product Images:
